Input/Output Signal Chart

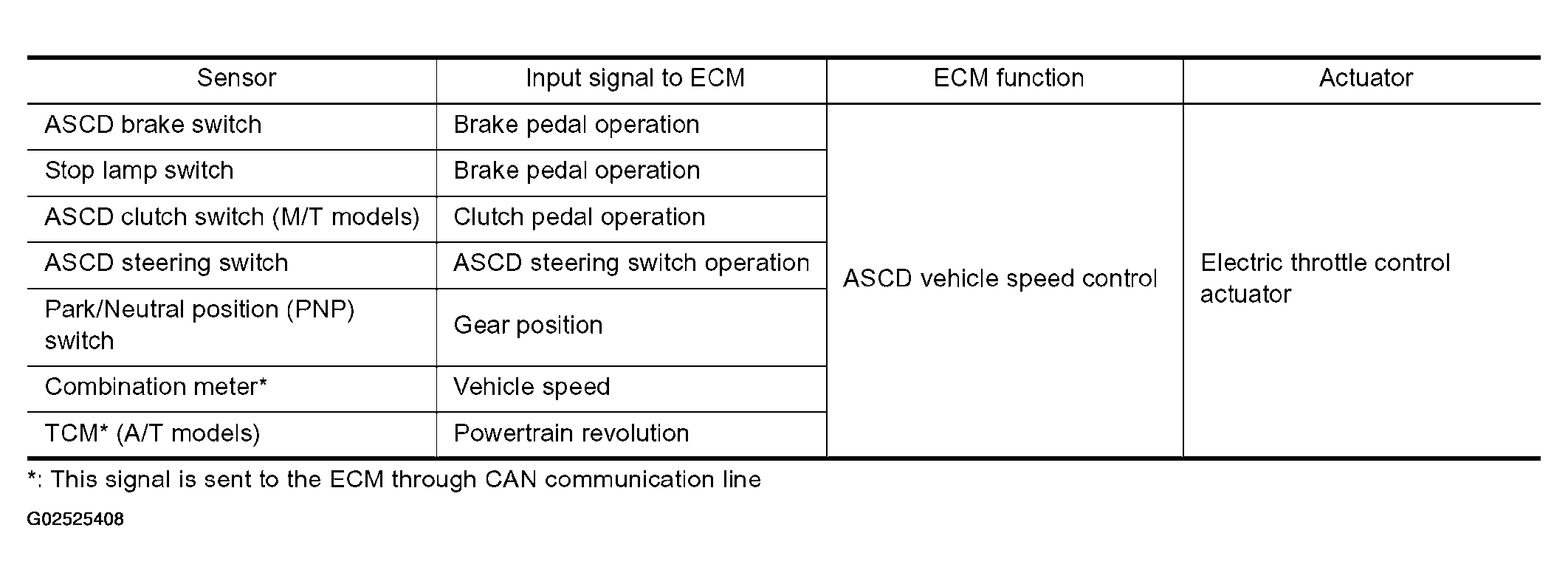

Fig 1: Input/Output Signal Chart (Automatic Speed Control Device)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
