Method A

  1. Attach timing light to loop wire as shown.

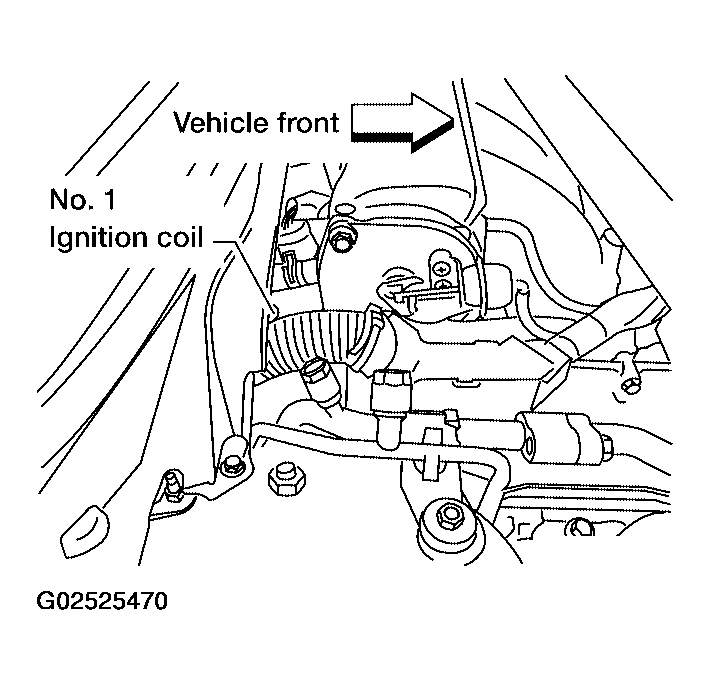

    Fig 1: Identifying No 1 Ignition Coil
    G02525470Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

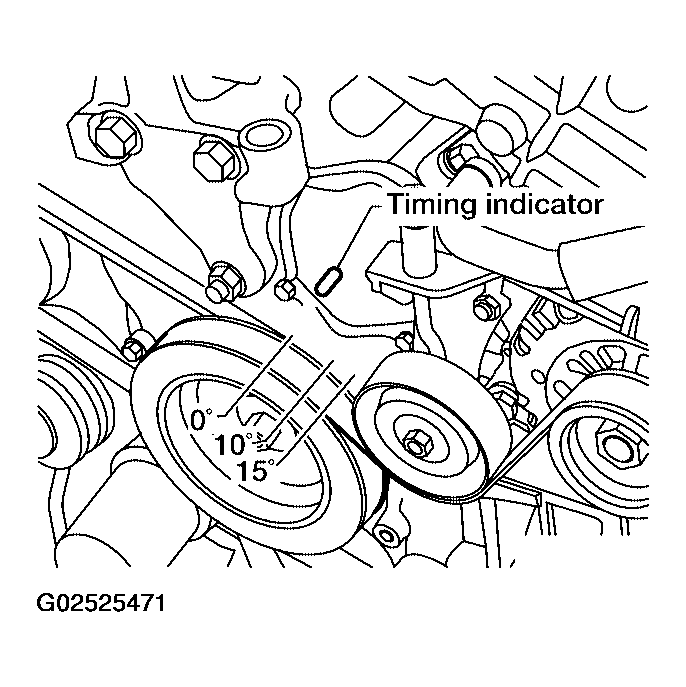

    Fig 2: Checking Ignition Timing
    G02525471Courtesy of NISSAN MOTOR CO., U.S.A.
