Component Inspection

INJECTOR

1. Disconnect injector harness connector.
2. Check resistance between terminals as shown in the figure.

   Resistance: 11.1 - 14.5Ω [at 10 - 60°C (50 - 140°F)]

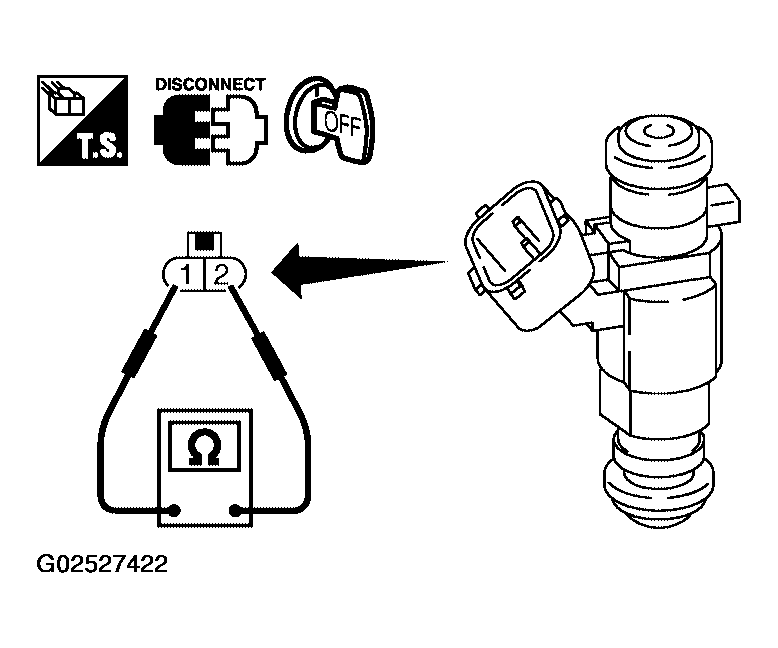

Fig 1: Checking Resistance Between Injector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
