Ignition Switch Replacement

Remove the tamper resistant self-shear type screws with a drill or other appropriate tool.
Disconnect key interlock cable.
Install new tamper resistance self-shear type screws.

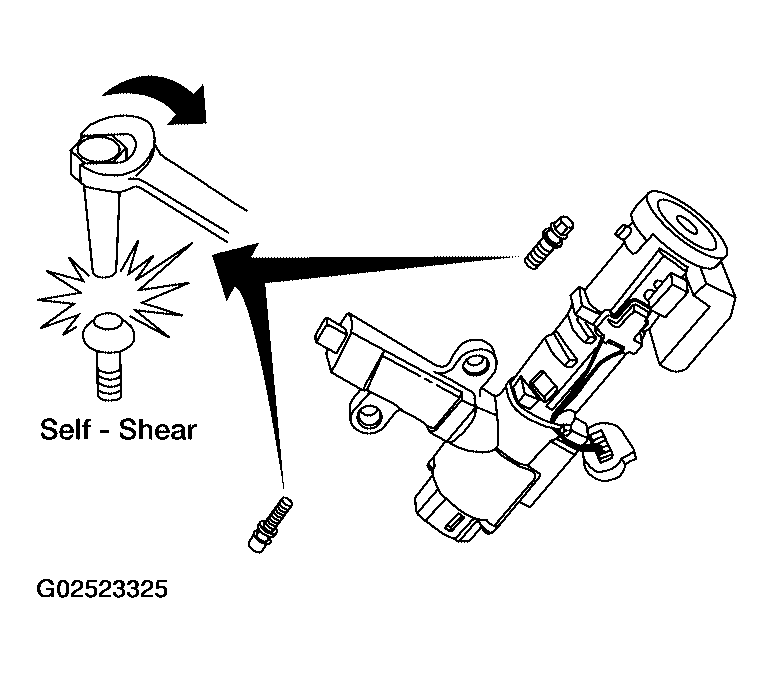

Fig 1: Removing Tamper Resistant Self-Shear Type Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
