Removal And Installation: Notes

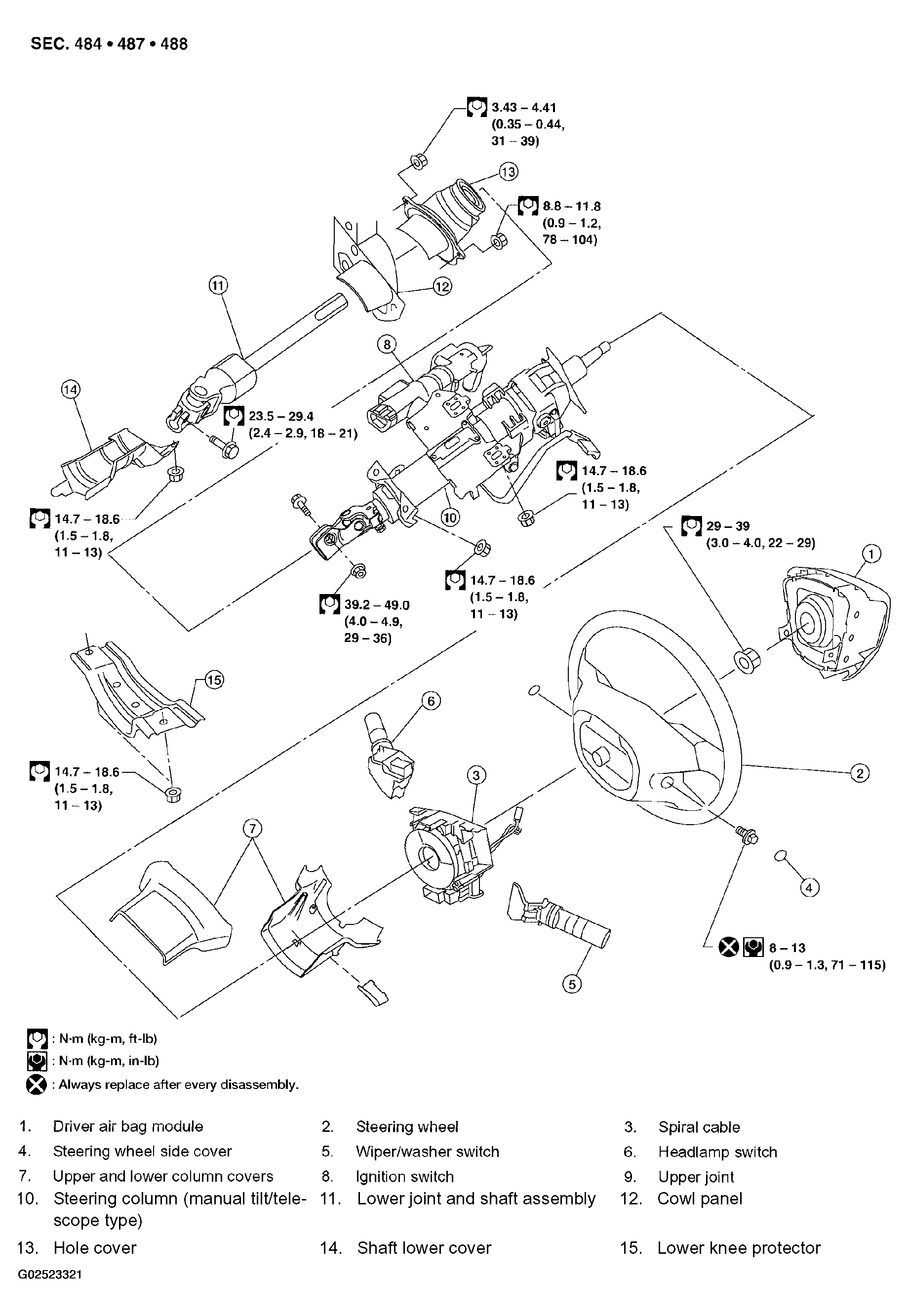

Fig 1: Exploded View Of Steering Column and Ignition Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
