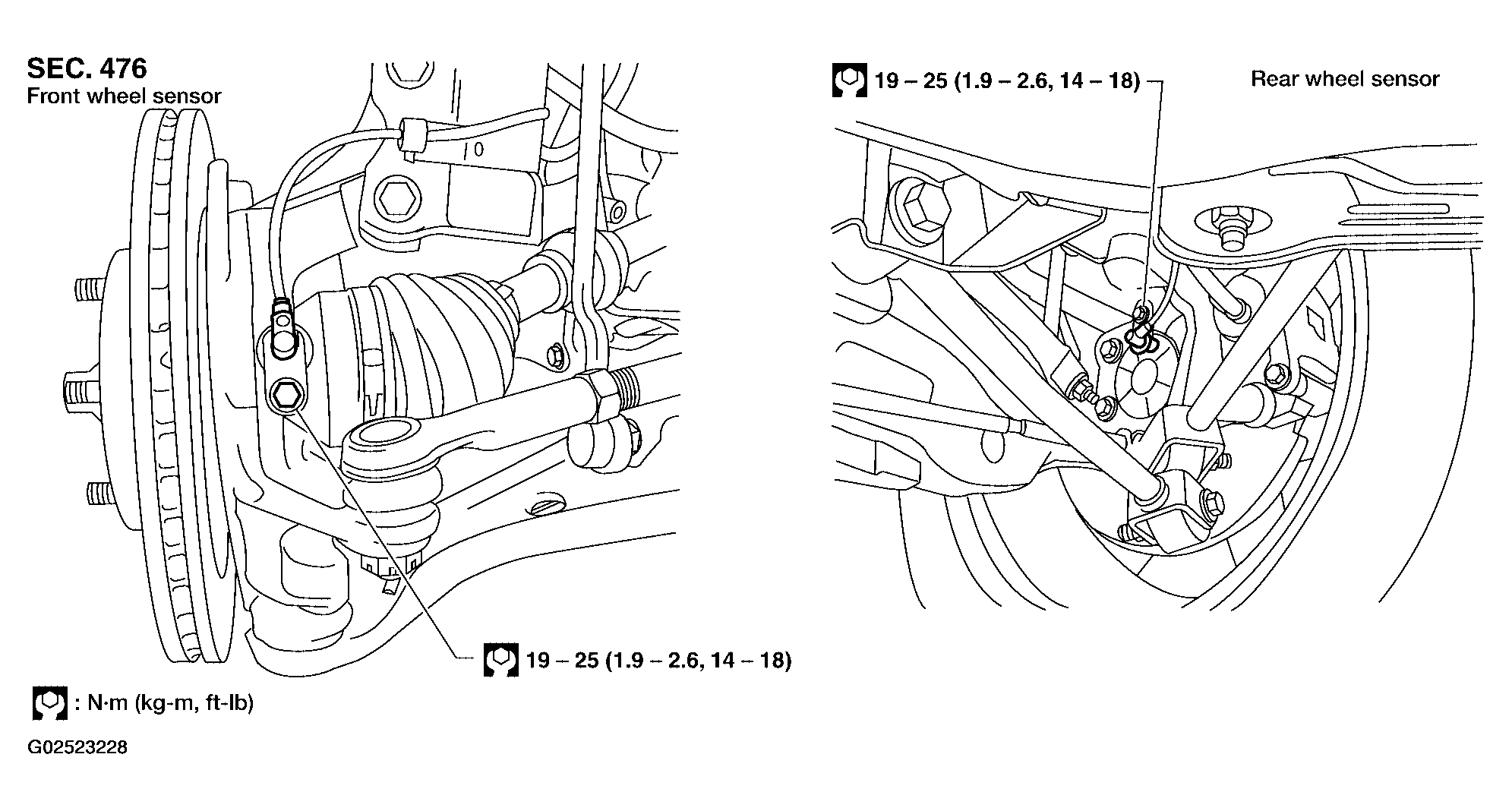

Removal and Installation
CAUTION:
Be careful not to damage sensor edge and sensor rotor teeth.
When removing the front or rear wheel hub assembly, first remove the ABS wheel sensor from the assembly. Failure to do so may result in damage to the sensor wires making the sensor inoperative.
CAUTION:
Pull out the sensor being careful to turn it as little as possible. Do not pull on the sensor harness.
Installation should be performed while paying attention to the following, and then tighten mounting bolts and nuts to the specified torque.
Installation should be performed while paying attention to the following, and then tighten mounting bolts and nuts to the specified torque.
- Check if foreign objects such as iron fragments are adhered to the pick-up part of the sensor or to the inside of the hole for mounting the sensor, or if a foreign object is caught in the surface of the mounting for the rotor. If something wrong is found, fix it and then install the sensor.
