CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference value.

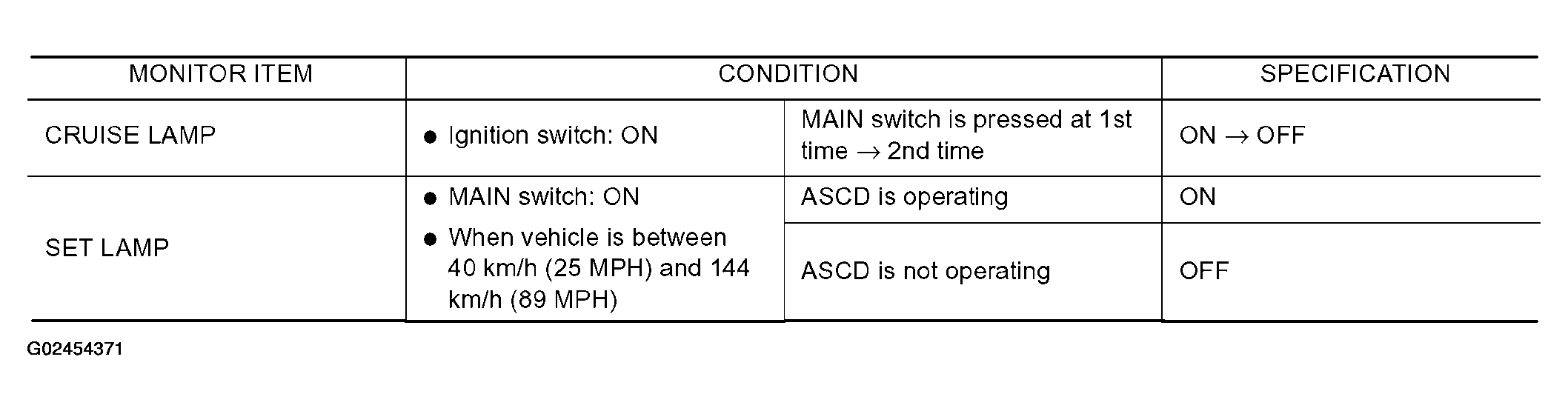

Fig 1: CONSULT-II Reference Value Chart - ASCD (Cruise Control) Indicator Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
