Input/Output Signal Chart

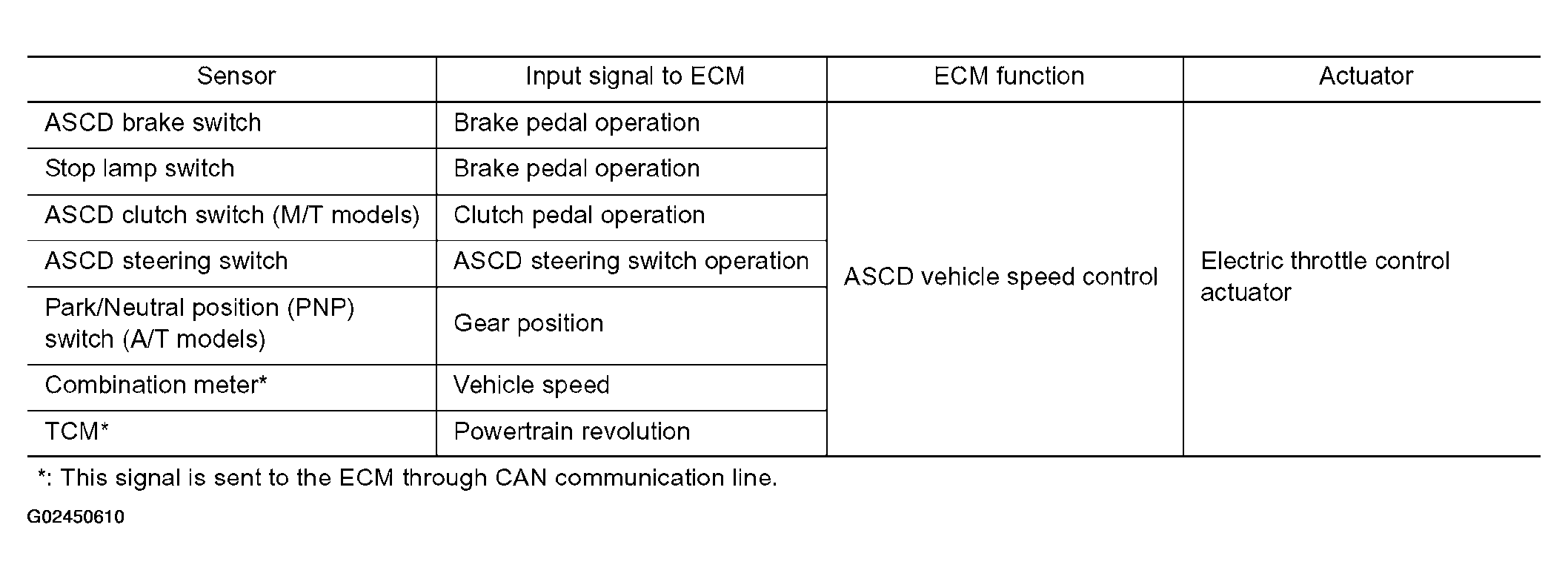

Fig 1: Automatic Speed Control Device - Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
