Basic Inspection

  1. INSPECTION START
    1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
    2. Open engine hood and check the following:
      • Harness connectors for improper connections
      • Wiring harness for improper connections, pinches and cut
      • Vacuum hoses for splits, kinks and improper connections
      • Hoses and ducts for leaks
      • Air cleaner clogging
      • Gasket
    3. Confirm that electrical or mechanical loads are not applied.
      • Headlamp switch is OFF.
      • Air conditioner switch is OFF.

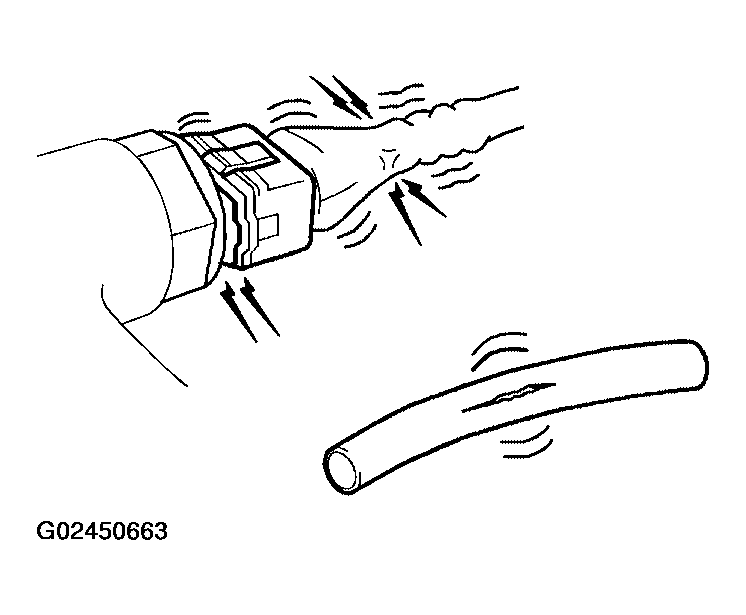

        Fig 1: Checking Harness Connectors & Vacuum Hoses For Improper Connection
        G02450663Courtesy of NISSAN MOTOR CO., U.S.A.
      • Rear window defogger switch is OFF.
      • Steering wheel is in the straight-ahead position, etc.
    4. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.

      Ensure engine stays below 1, 000 rpm.

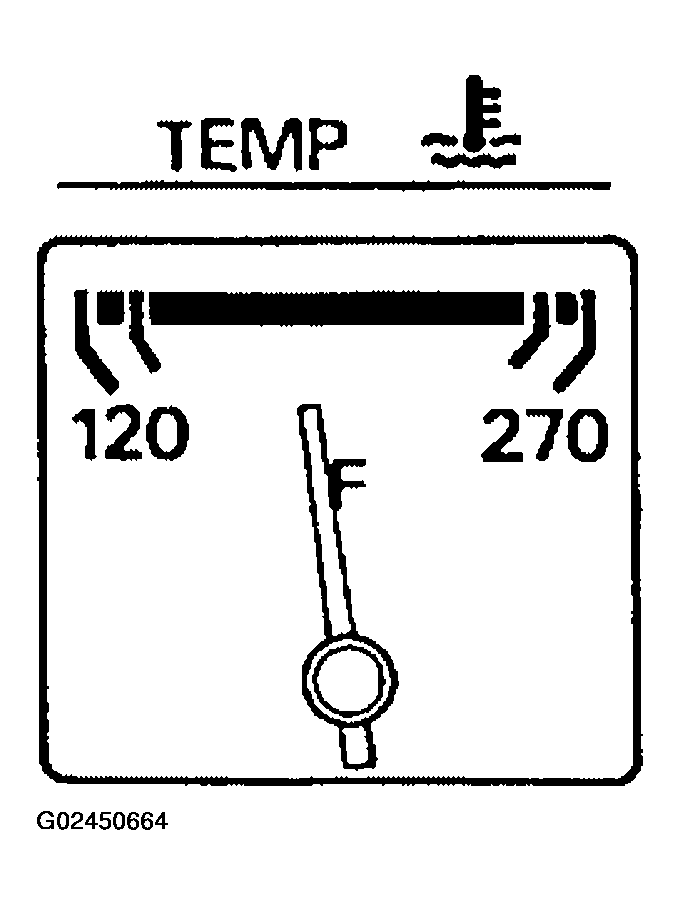

      Fig 2: Engine Coolant Temperature Indicator
      G02450664Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Run engine at about 2, 000 rpm for about 2 minutes under no-load.

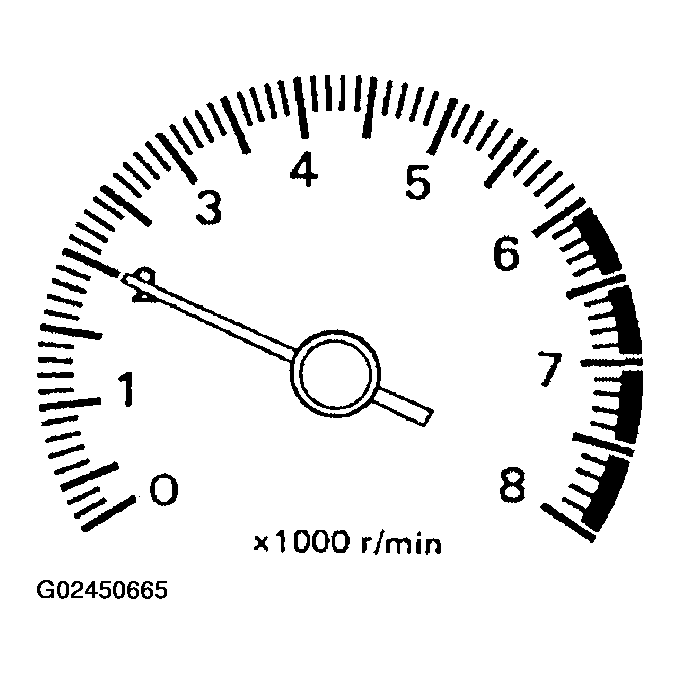

      Fig 3: Tachometer Display For 2, 000 RPM
      G02450665Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Make sure that no DTC is displayed with CONSULT-II or GST.

    OK or NG

    1. OK : GO TO  3.
    2. NG : GO TO 2.
  2. REPAIR OR REPLACE

    Repair or replace components as necessary according to corresponding Diagnostic Procedure.

    1. : GO TO 3.
  3. CHECK TARGET IDLE SPEED

    With CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no-load.
    2. Rev engine (2, 000 to 3, 000 rpm) 2 or 3 times under no-load, then run engine at idle speed for about 1 minute.

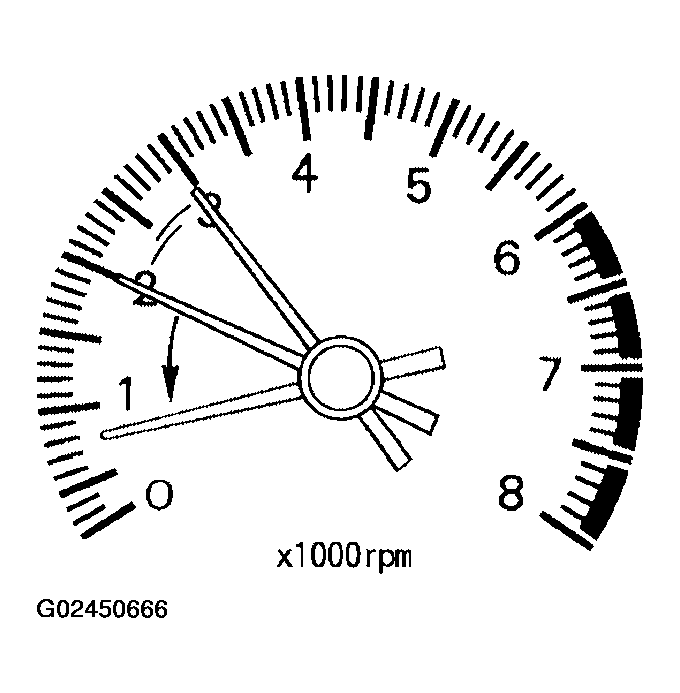

      Fig 4: Tachometer For (2, 000 To 3, 000 RPM)
      G02450666Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

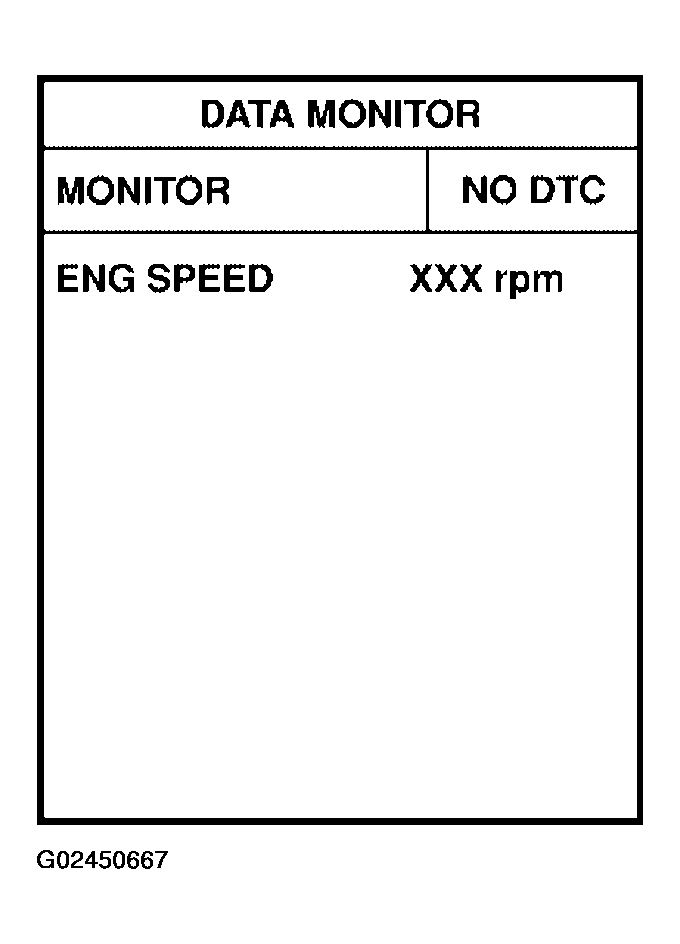

      Fig 5: DATA MONITOR Mode - CONSULT-II Screen Display
      G02450667Courtesy of NISSAN MOTOR CO., U.S.A.

      Refer to "IDLE SPEED ".

      1. M/T: 700 +/- 50 rpm (in Neutral position)
      2. A/T: 700 +/- 50 rpm (in P or N position)  .

    Without CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no-load.
    2. Rev engine (2, 000 to 3, 000 rpm) 2 or 3 times under no-load, then run engine at idle speed for about 1 minute.
    3. Check idle speed. Refer to "IDLE SPEED ".
      1. M/T: 700 +/- 50 rpm (in Neutral position)
      2. A/T: 700 +/- 50 rpm (in P or N position)  .

    OK or NG

    1. OK : GO TO  10.
    2. NG : GO TO 4.
  4. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
      1. : GO TO 5.
  5. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".

    1. : GO TO 6.
  6. PERFORM IDLE AIR VOLUME LEARNING

    Refer to "IDLE AIR VOLUME LEARNING ".

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    1. Yes : GO TO 7.
    2. No :
      1. Follow the instruction of Idle Air Volume Learning.
      2. GO TO  4.
  7. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

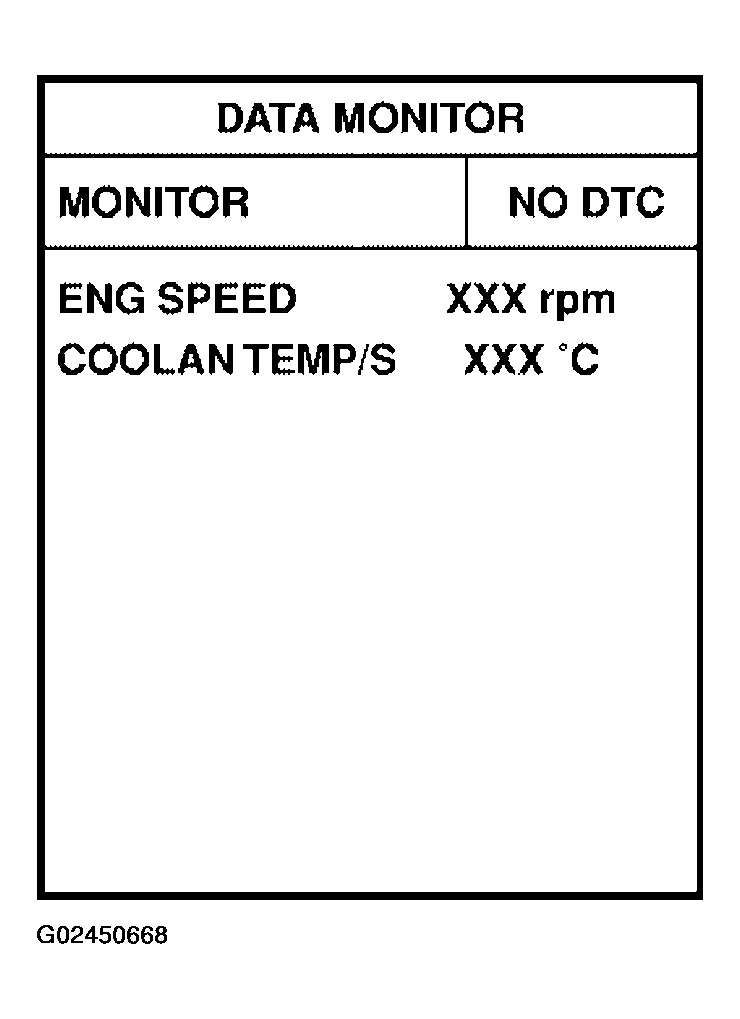

      Fig 6: DATA MONITOR Mode - CONSULT-II Screen Display
      G02450668Courtesy of NISSAN MOTOR CO., U.S.A.

      Refer to "IDLE SPEED ".

      1. M/T: 700 +/- 50 rpm (in Neutral position)
      2. A/T: 700 +/- 50 rpm (in P or N position)  .

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed. Refer to "IDLE SPEED ".
      1. M/T: 700 +/- 50 rpm (in Neutral position)
      2. A/T: 700 +/- 50 rpm (in P or N position)  .

    OK or NG

    1. OK : GO TO  10.
    2. NG : GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    1. OK : GO TO 9.
    2. NG :
      1. Repair or replace.
      2. GO TO  4.
  9. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM - NATS) .
      1. : GO TO  4.
  10. CHECK IGNITION TIMING
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to "IGNITION TIMING ".
      1. M/T: 15 +/- 5° BTDC (in Neutral position)
      2. A/T: 15 +/- 5° BTDC (in P or N position)  .
      Fig 7: Identifying Ignition Timing Marks On Crankshaft Pulley
      G02450669Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO  19.
    2. NG : GO TO 11.
  11. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
      1. : GO TO 12.
  12. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".

    1. : GO TO 13.
  13. PERFORM IDLE AIR VOLUME LEARNING

    Refer to "IDLE AIR VOLUME LEARNING ".

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    1. Yes : GO TO 14.
    2. No :
      1. Follow the instruction of Idle Air Volume Learning.
      2. GO TO  4.
  14. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

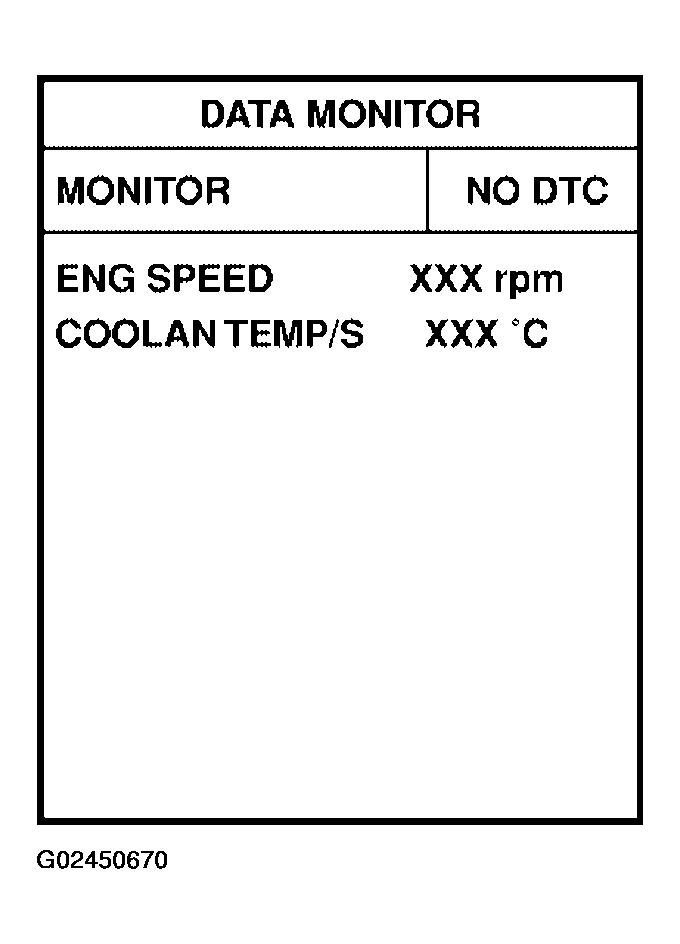

      Fig 8: DATA MONITOR Mode - CONSULT-II Screen Display
      G02450670Courtesy of NISSAN MOTOR CO., U.S.A.

      Refer to "IDLE SPEED ".

      1. M/T: 700 +/- 50 rpm (in Neutral position)
      2. A/T: 700 +/- 50 rpm (in P or N position)  .

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed. Refer to "IDLE SPEED ".
      1. M/T: 700 +/- 50 rpm (in Neutral position)
      2. A/T: 700 +/- 50 rpm (in P or N position)  .

    OK or NG

    1. OK : GO TO 15.
    2. NG : GO TO  17.
  15. CHECK IGNITION TIMING AGAIN
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to "IGNITION TIMING ".
      1. M/T: 15 +/- 5° BTDC (in Neutral position)
      2. A/T: 15 +/- 5° BTDC (in P or N position)  .

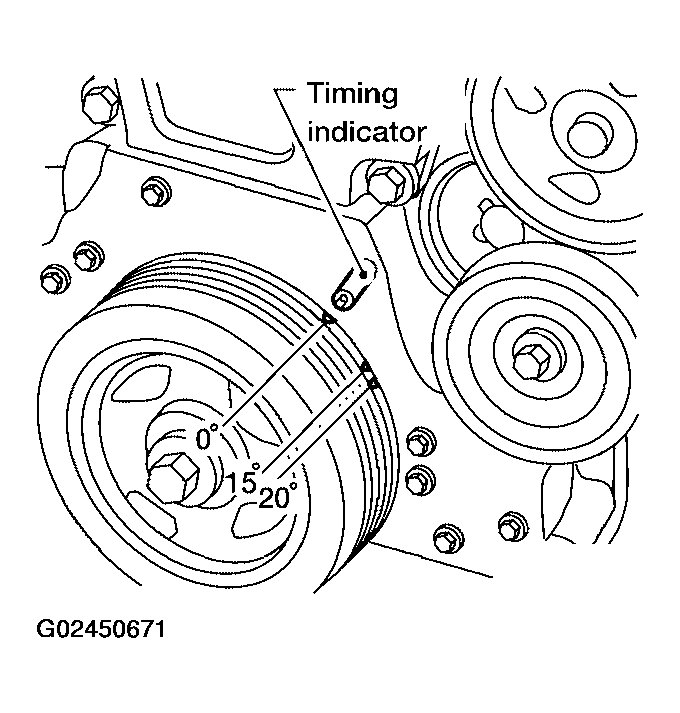

      Fig 9: Identifying Ignition Timing Marks On Crankshaft Pulley
      G02450671Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 19
    2. NG : GO TO 16.
  16. CHECK TIMING CHAIN INSTALLATION

    Check timing chain installation. Refer to TIMING CHAIN .

    OK or NG

    1. OK : GO TO  17.
    2. NG :
      1. Repair the timing chain installation.
      2. GO TO  4.
  17. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    1. OK : GO TO 18.
    2. NG :
      1. Repair or replace.
      2. GO TO  4.
  18. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM - NATS) .
      1. : GO TO  4.
  19. INSPECTION END

    Did you replace ECM, referring this Basic Inspection procedure?

    Yes or No

    1. Yes :
      1. Perform "VIN REGISTRATION ".
      2. INSPECTION END
    2. No : INSPECTION END
