Brake Control System: Description: Schematic

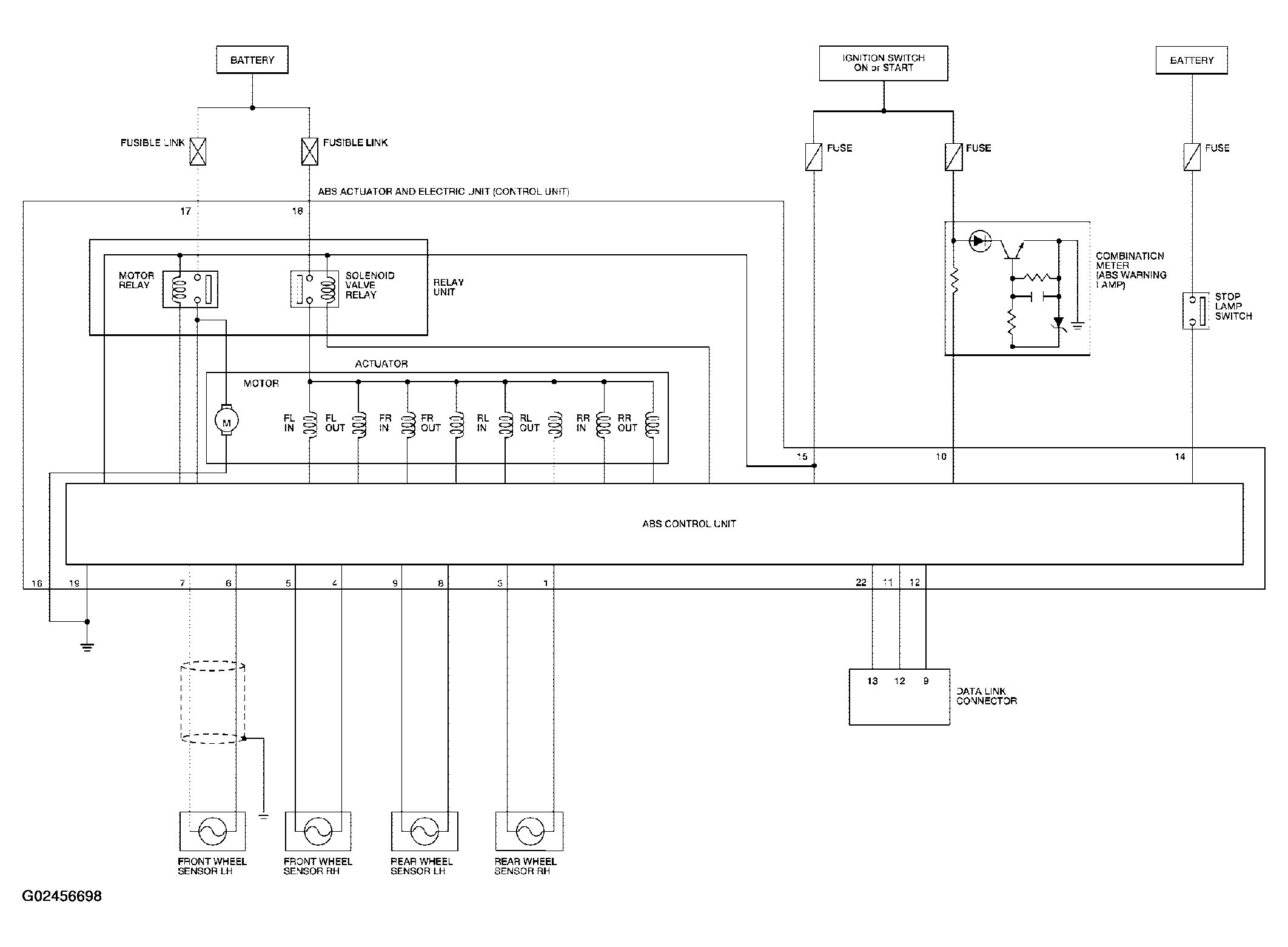

Fig 1: Anti-Lock Brake System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
