Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Starting & Charging System
>>
Starter
>>
Wiring Diagram - START
>>
M/T Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
M/T Model

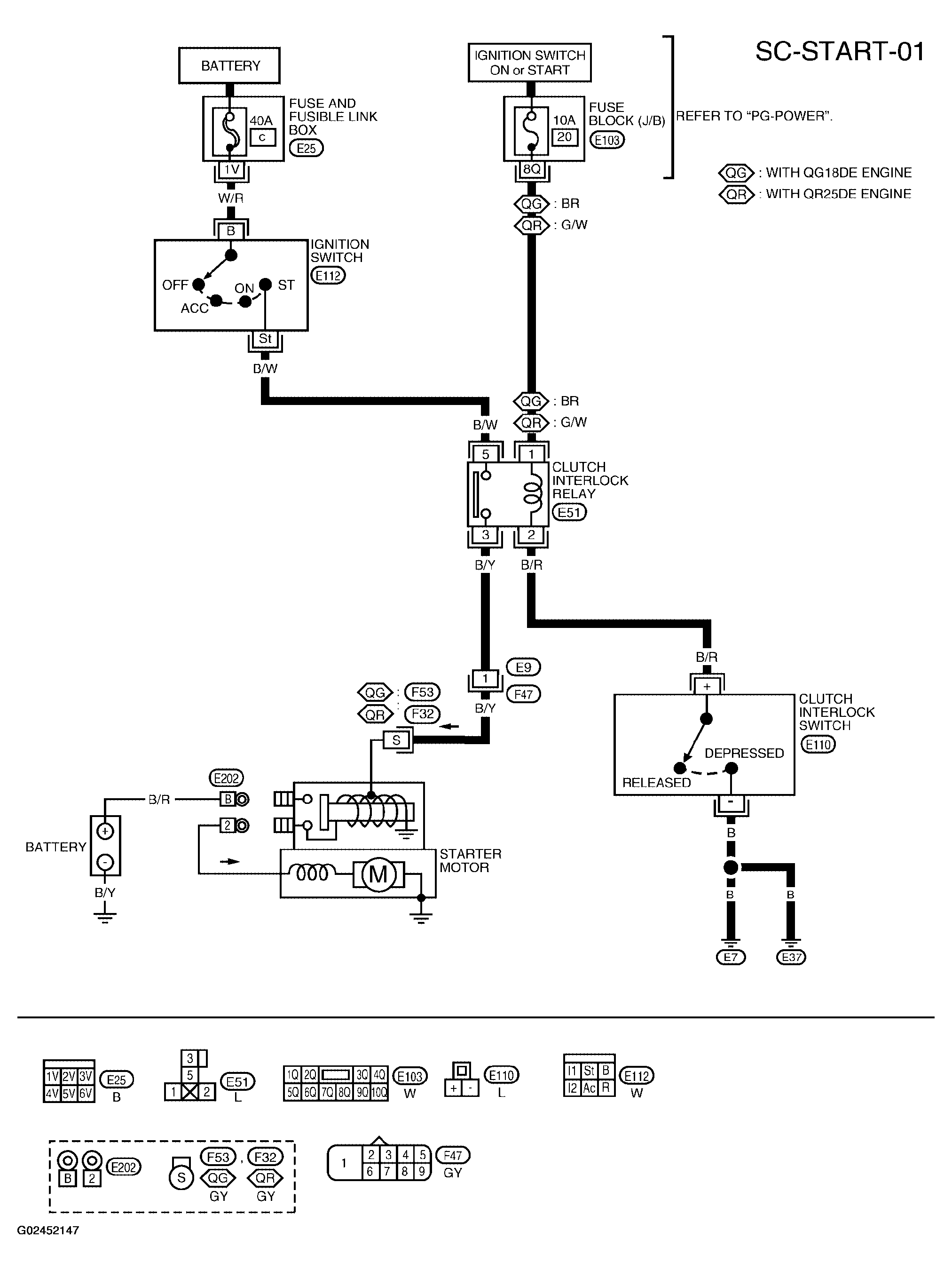

Fig 1: Wiring Diagram - Starter Circuit, M/T Model (SC-START-01)
