Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

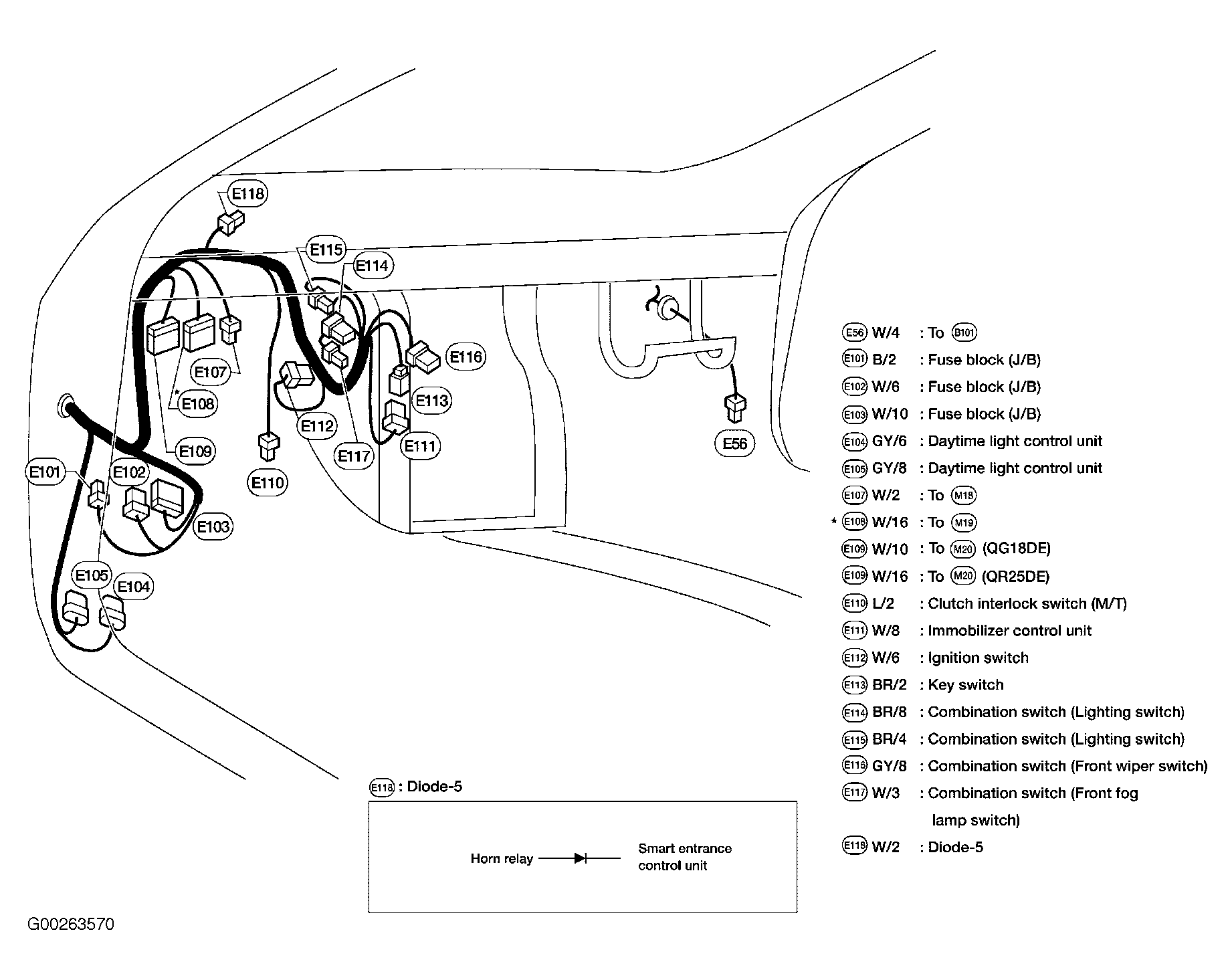

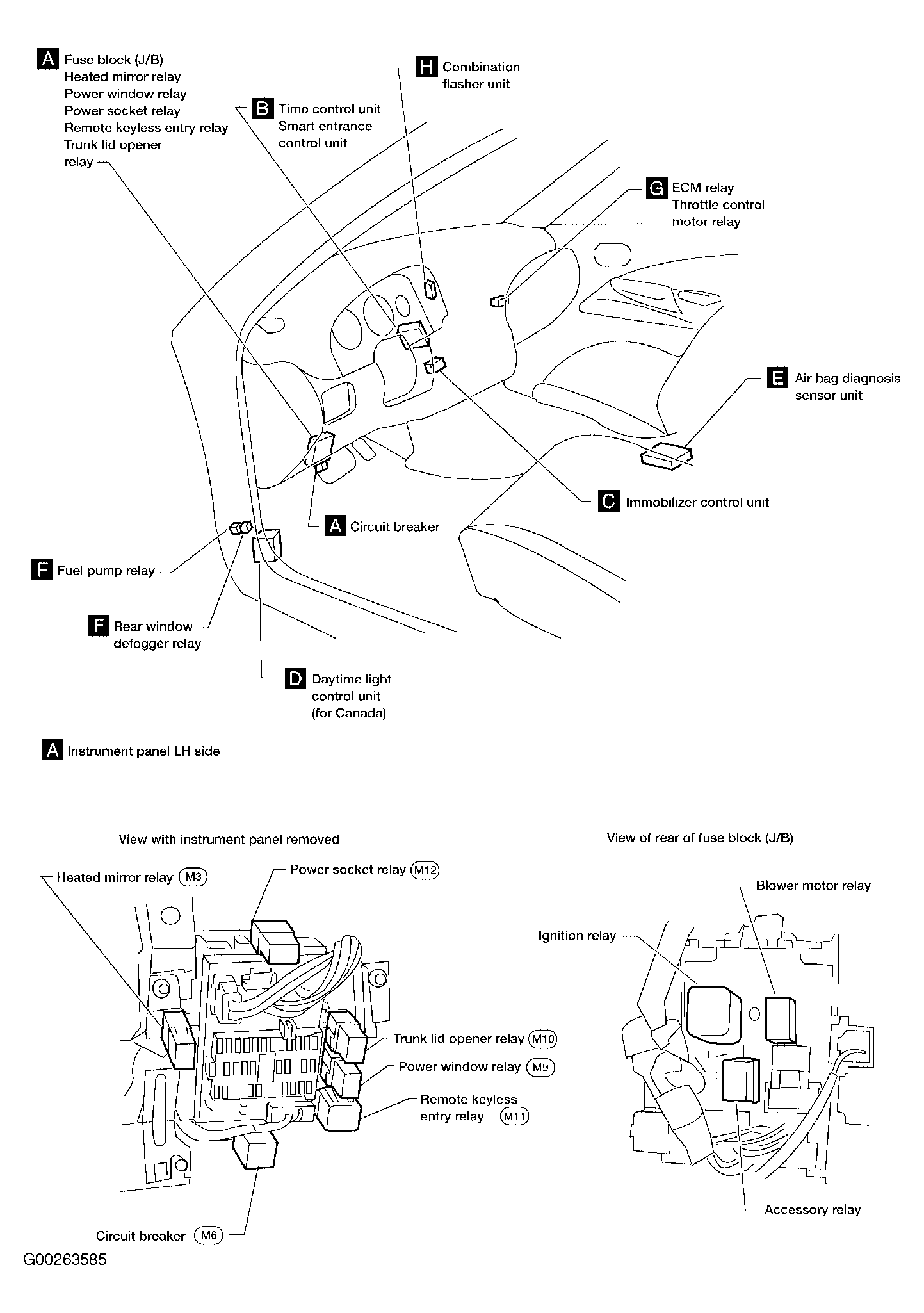

Fig 1: Front Of Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

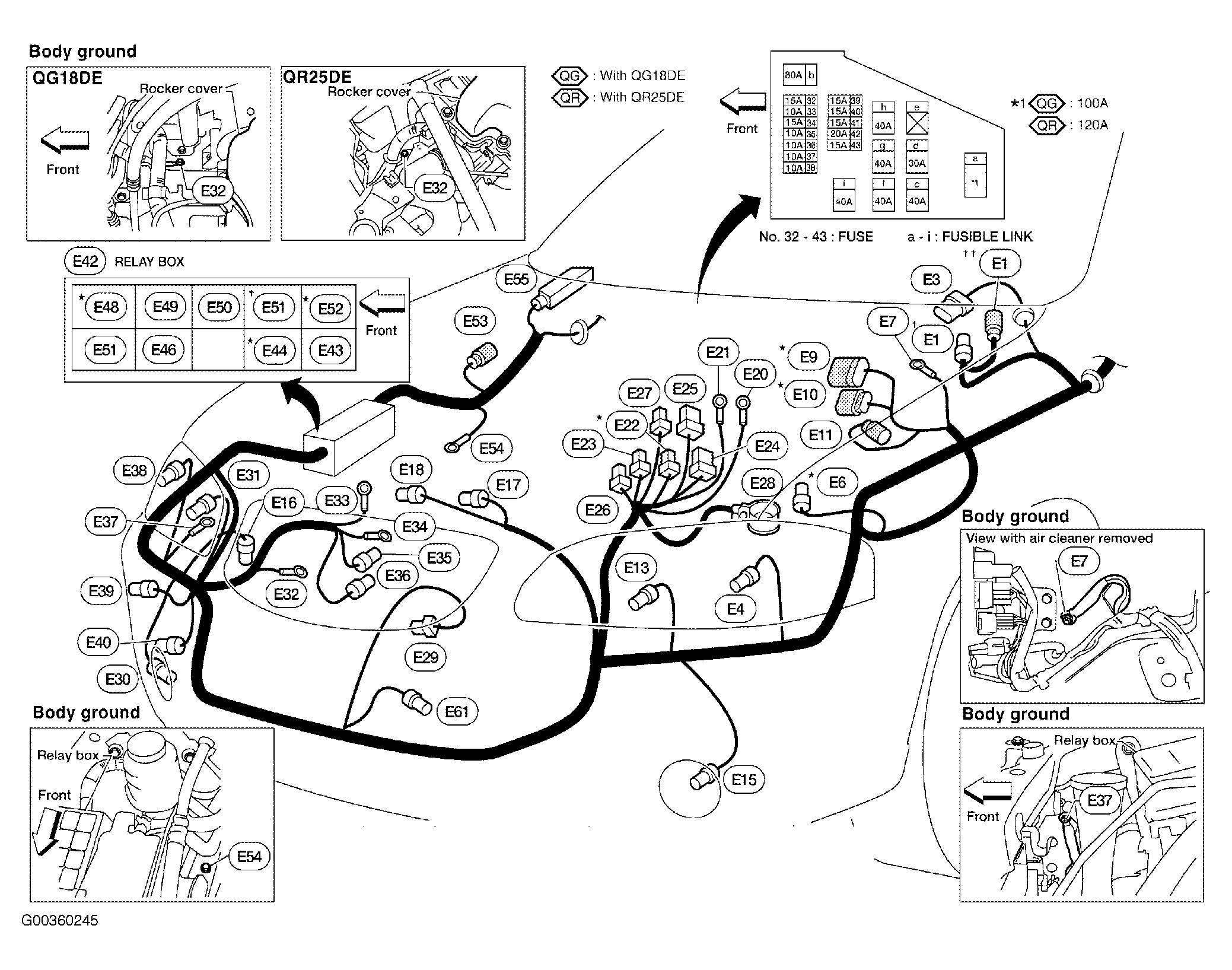

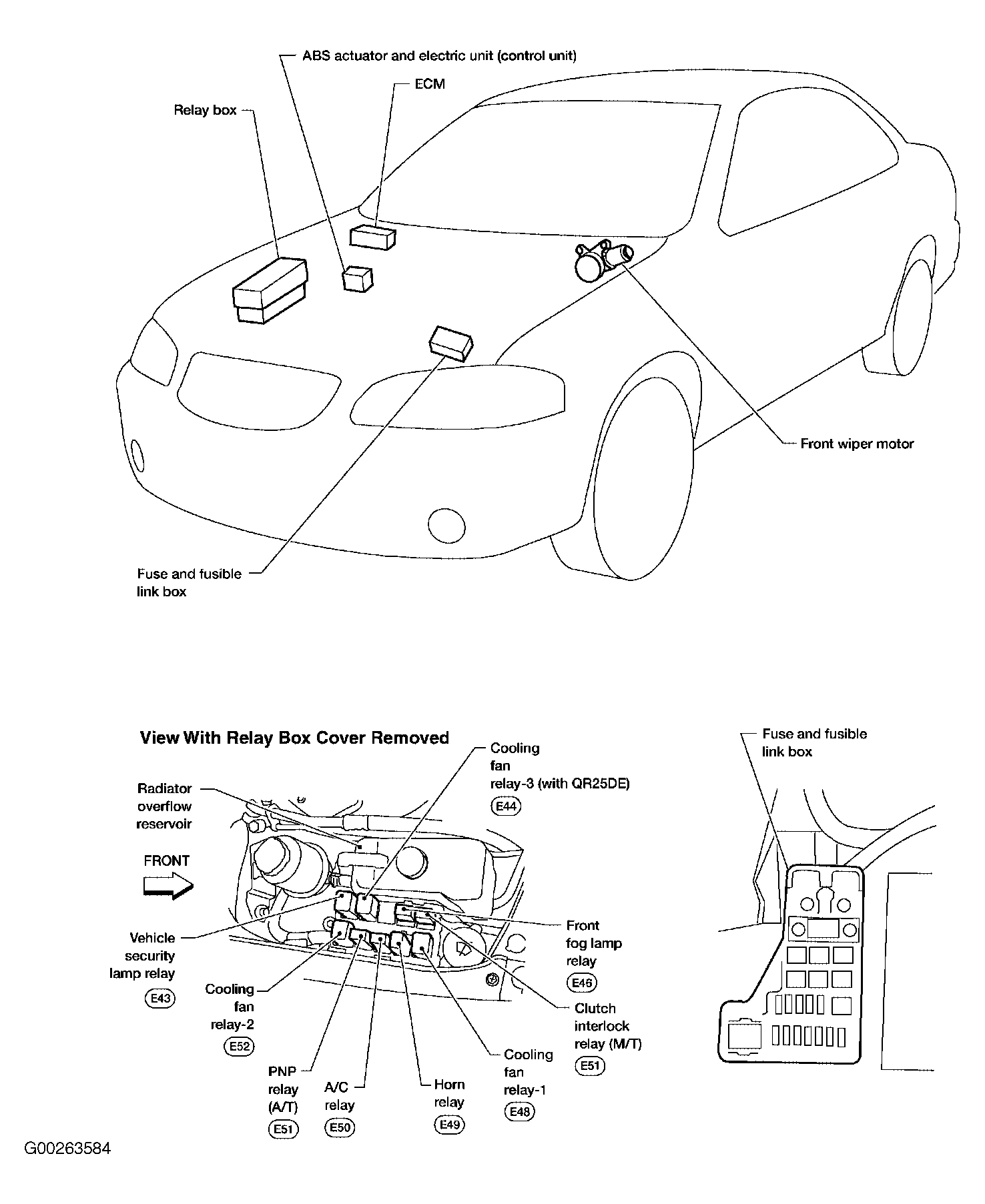

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

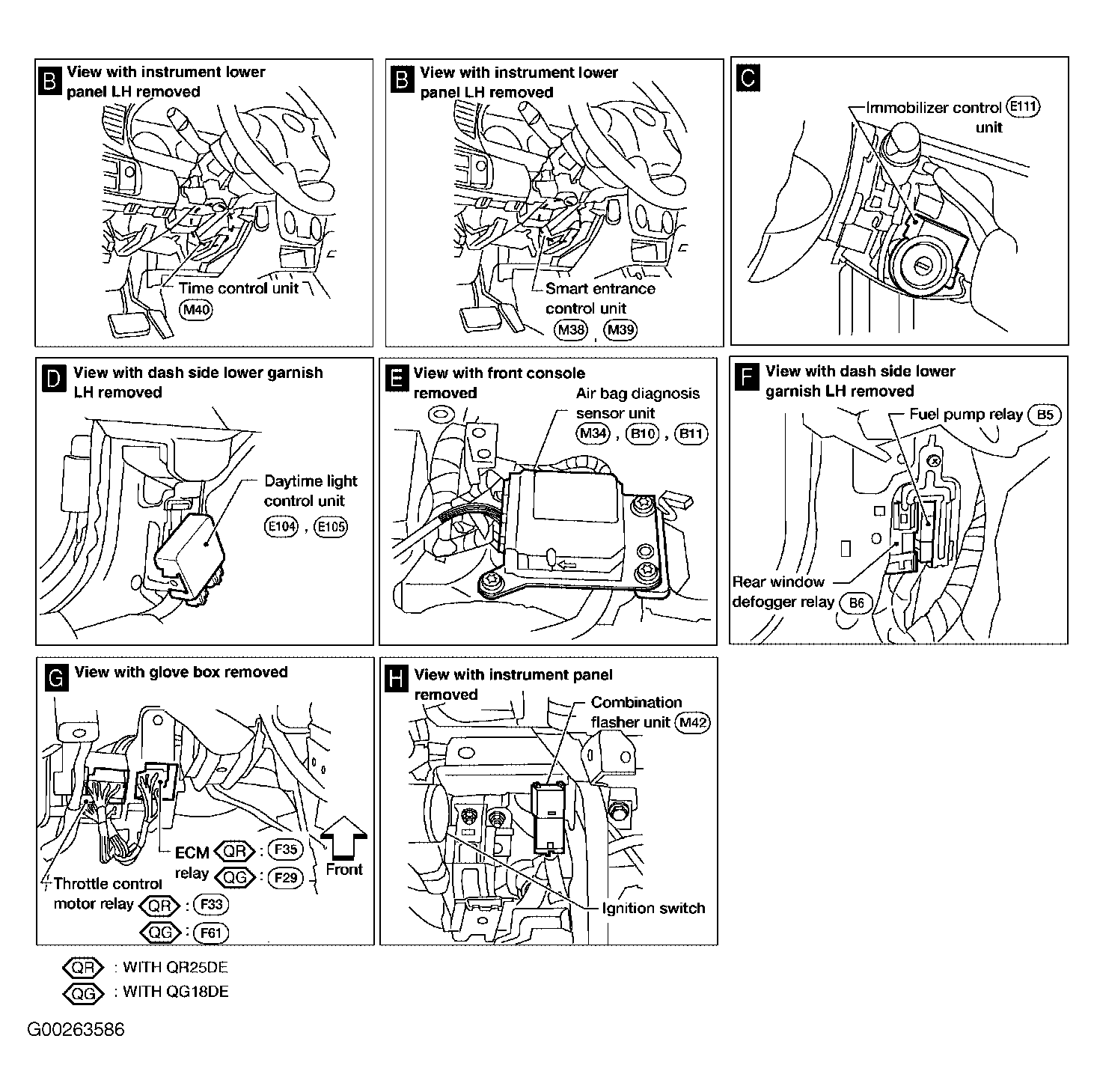

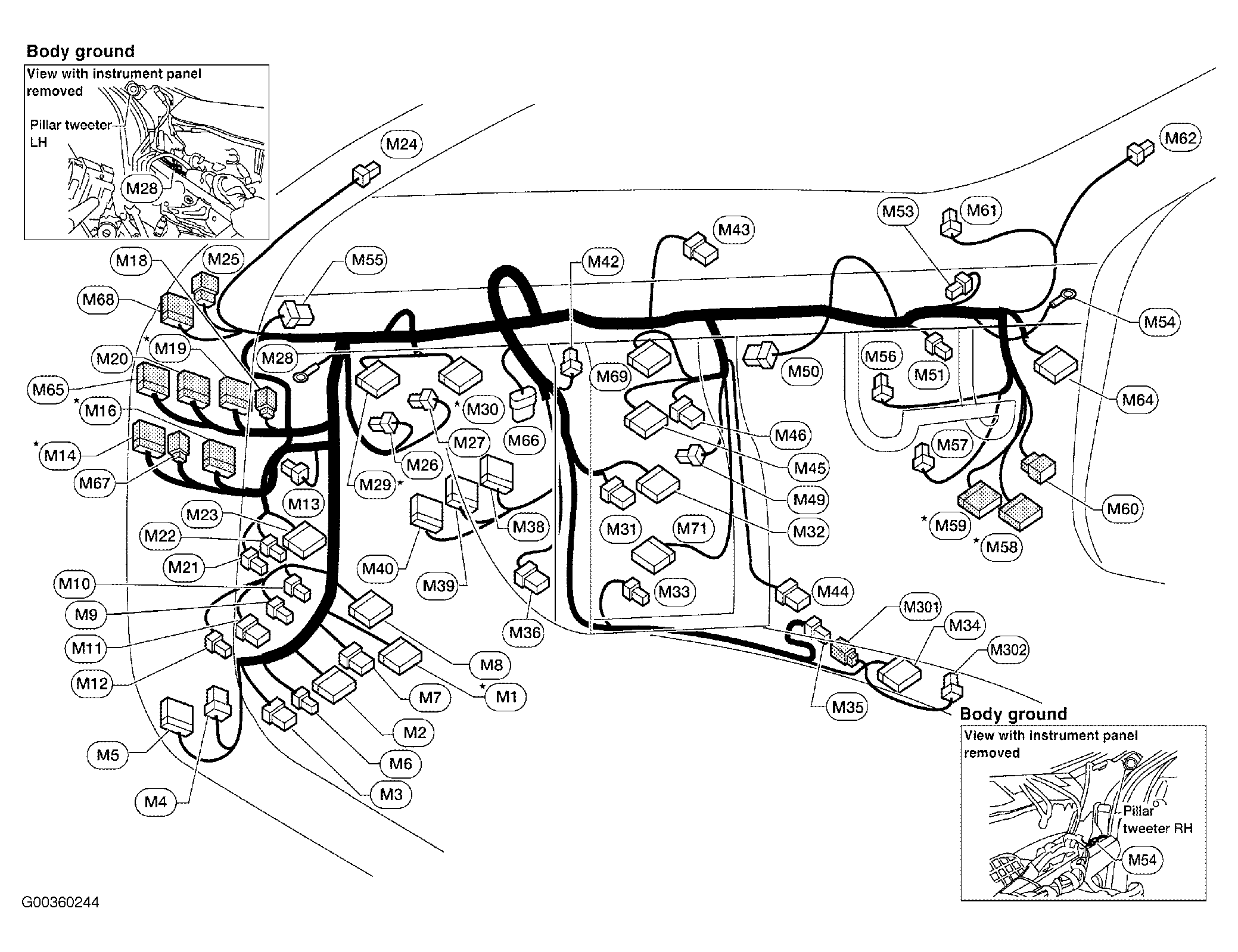

Fig 3: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

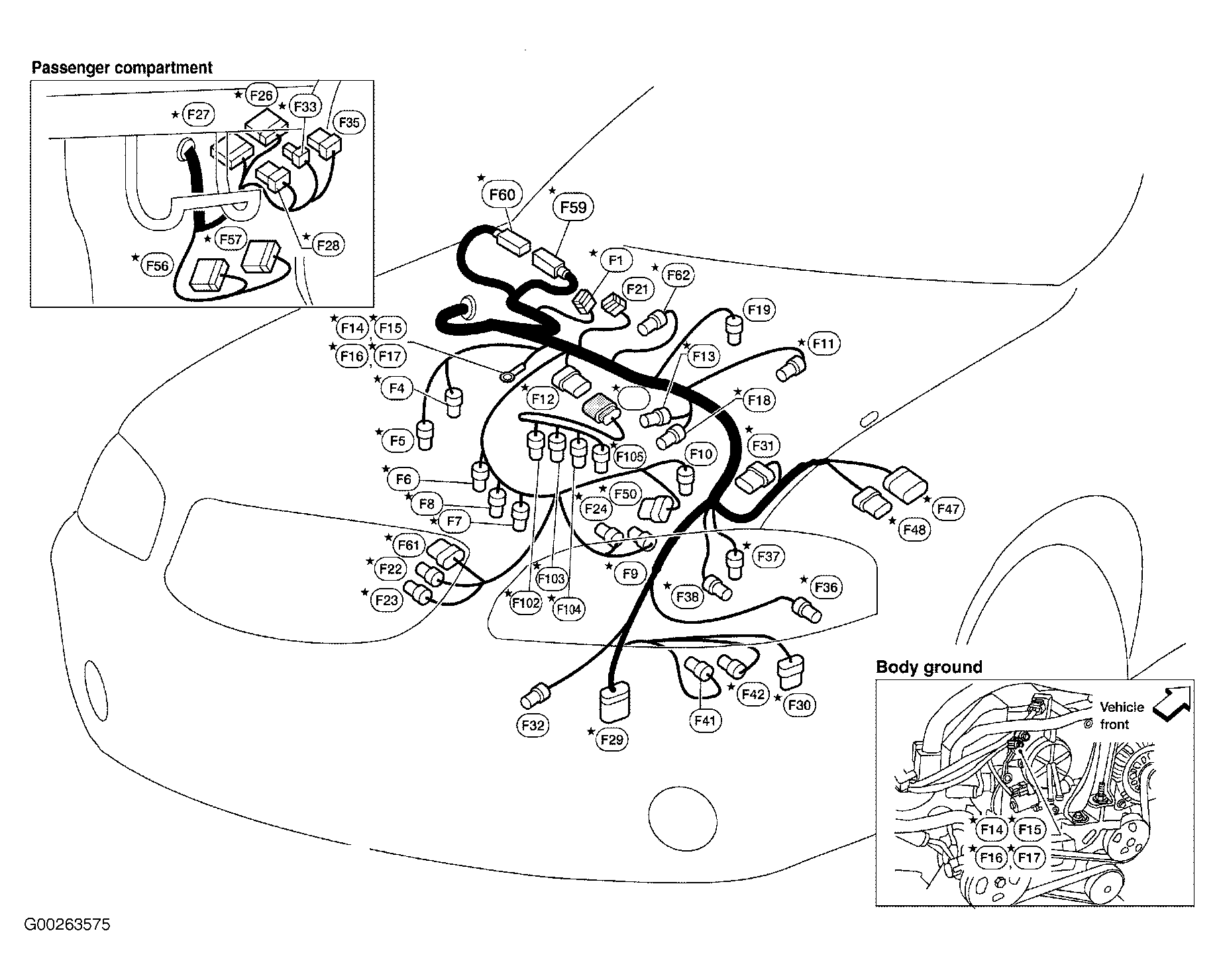

Fig 4: Engine (1.8L ULEV)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine (1.8L SULEV)

Courtesy of NISSAN MOTOR CO., U.S.A.

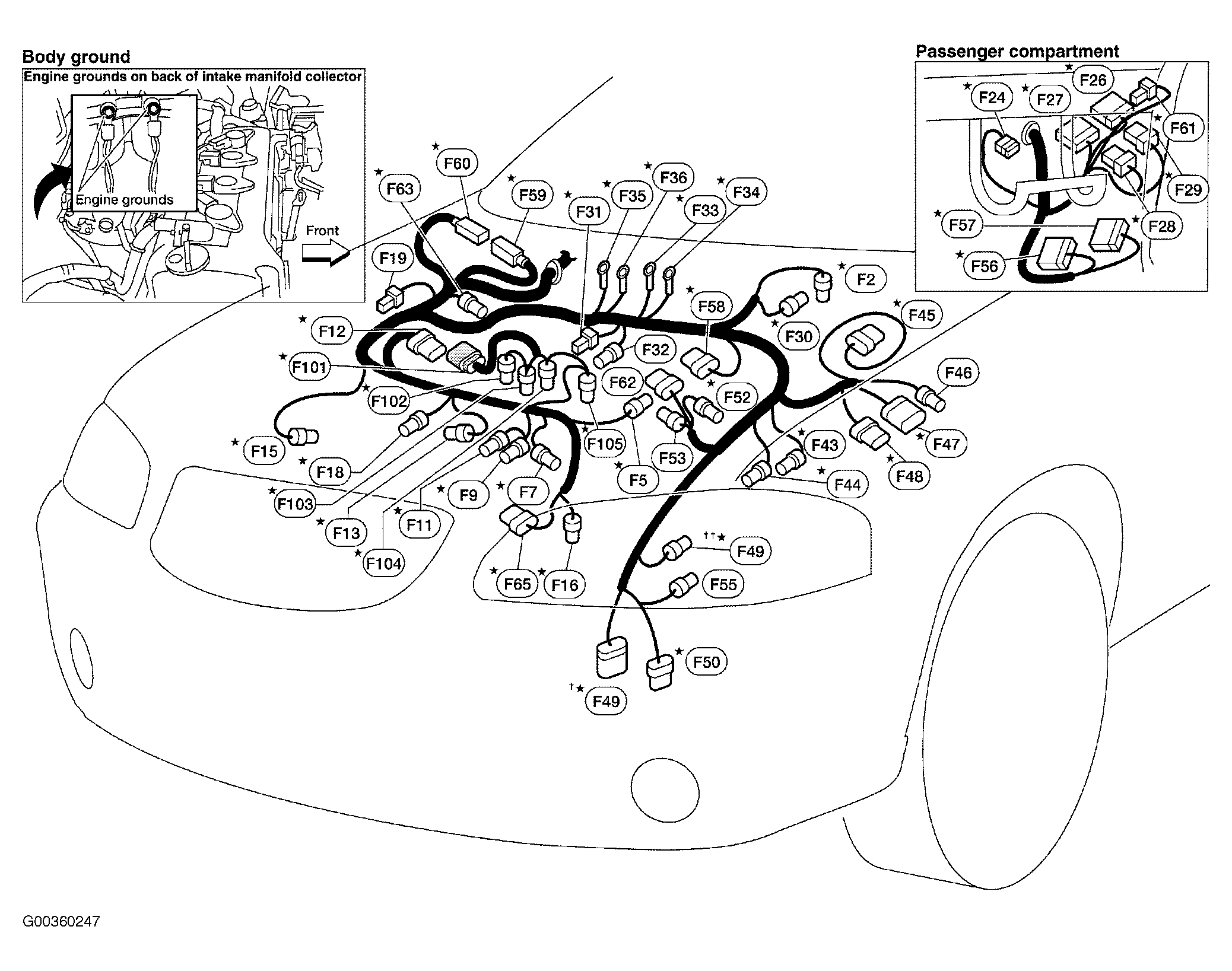

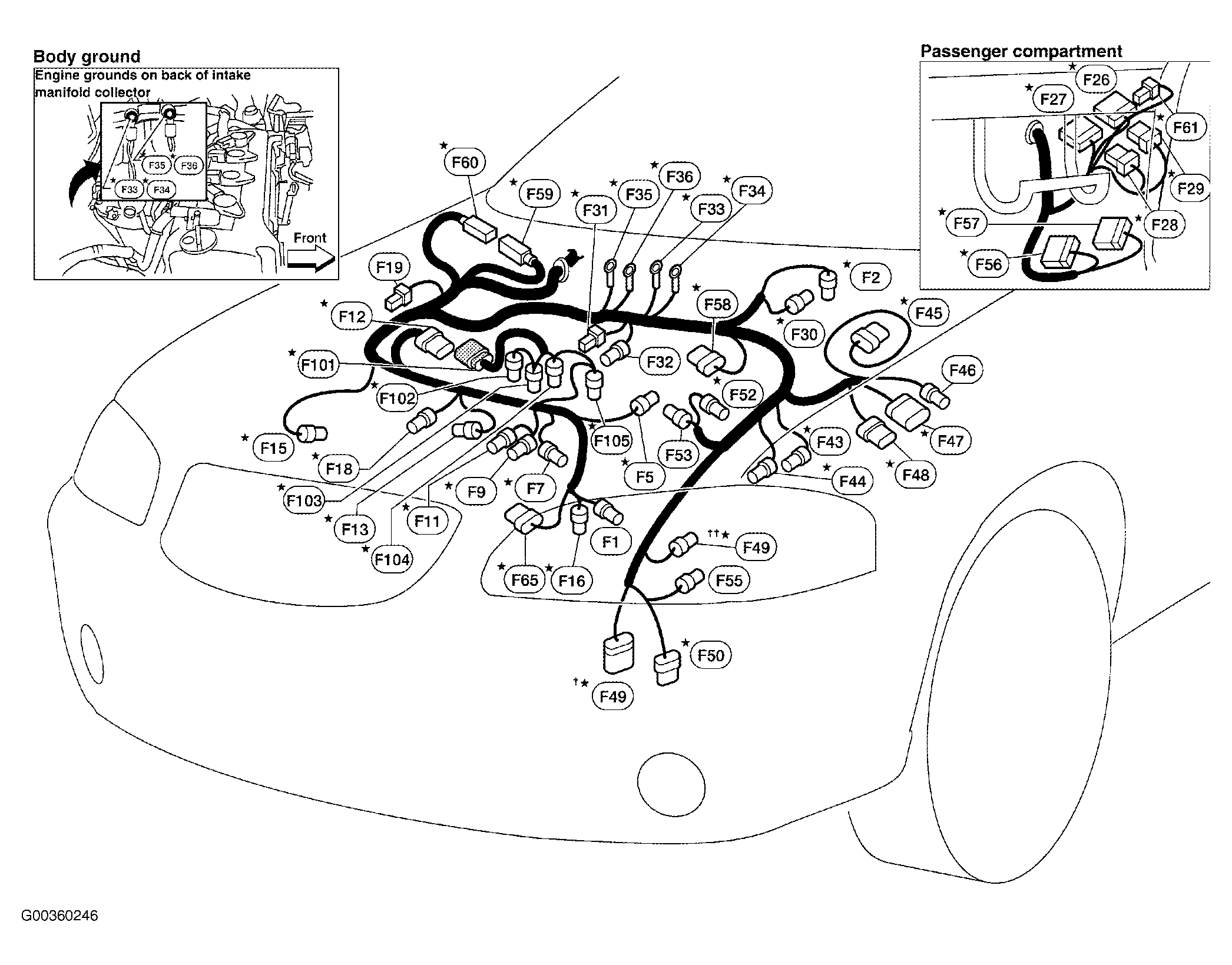

Fig 6: Engine (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

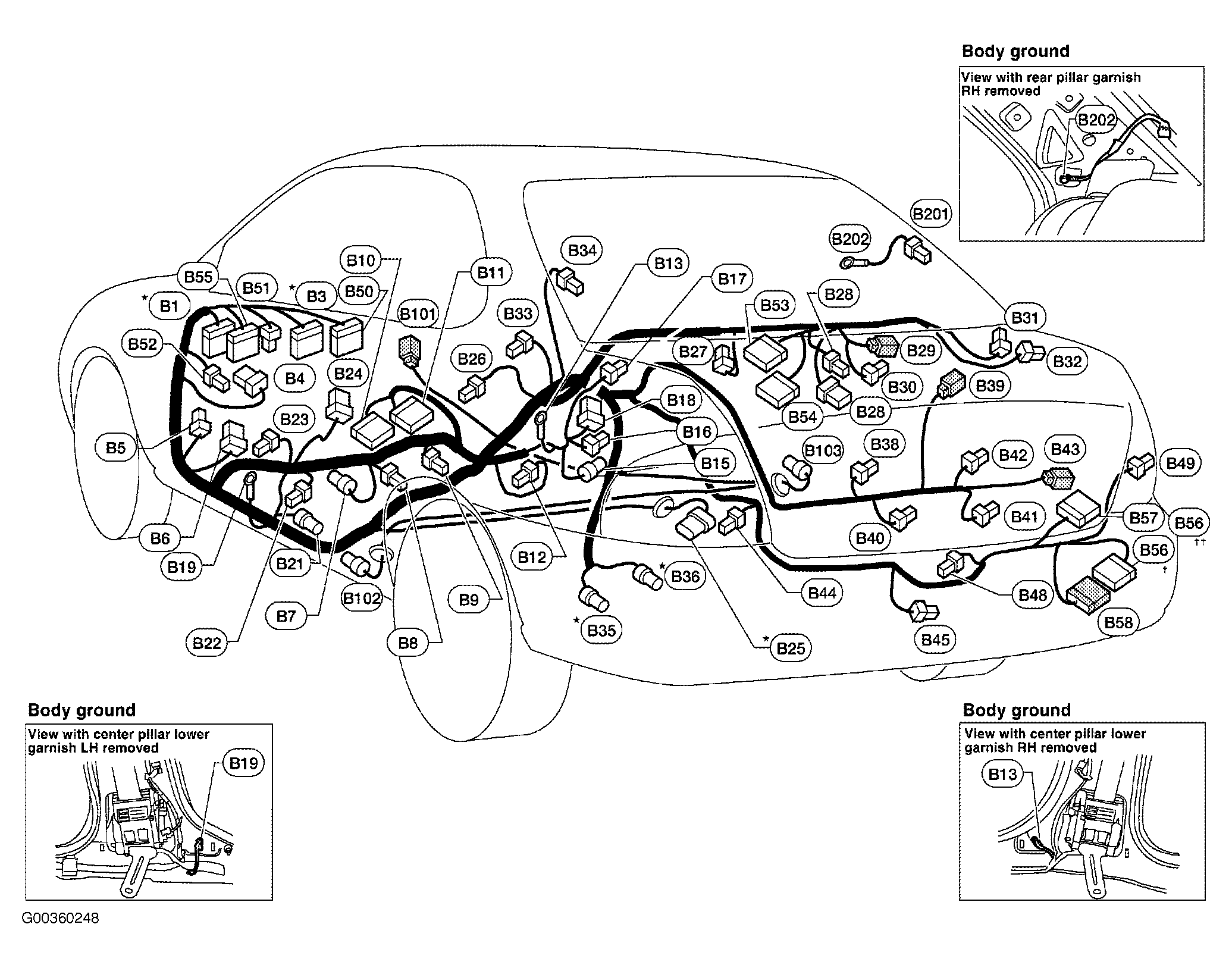

Fig 7: Body Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

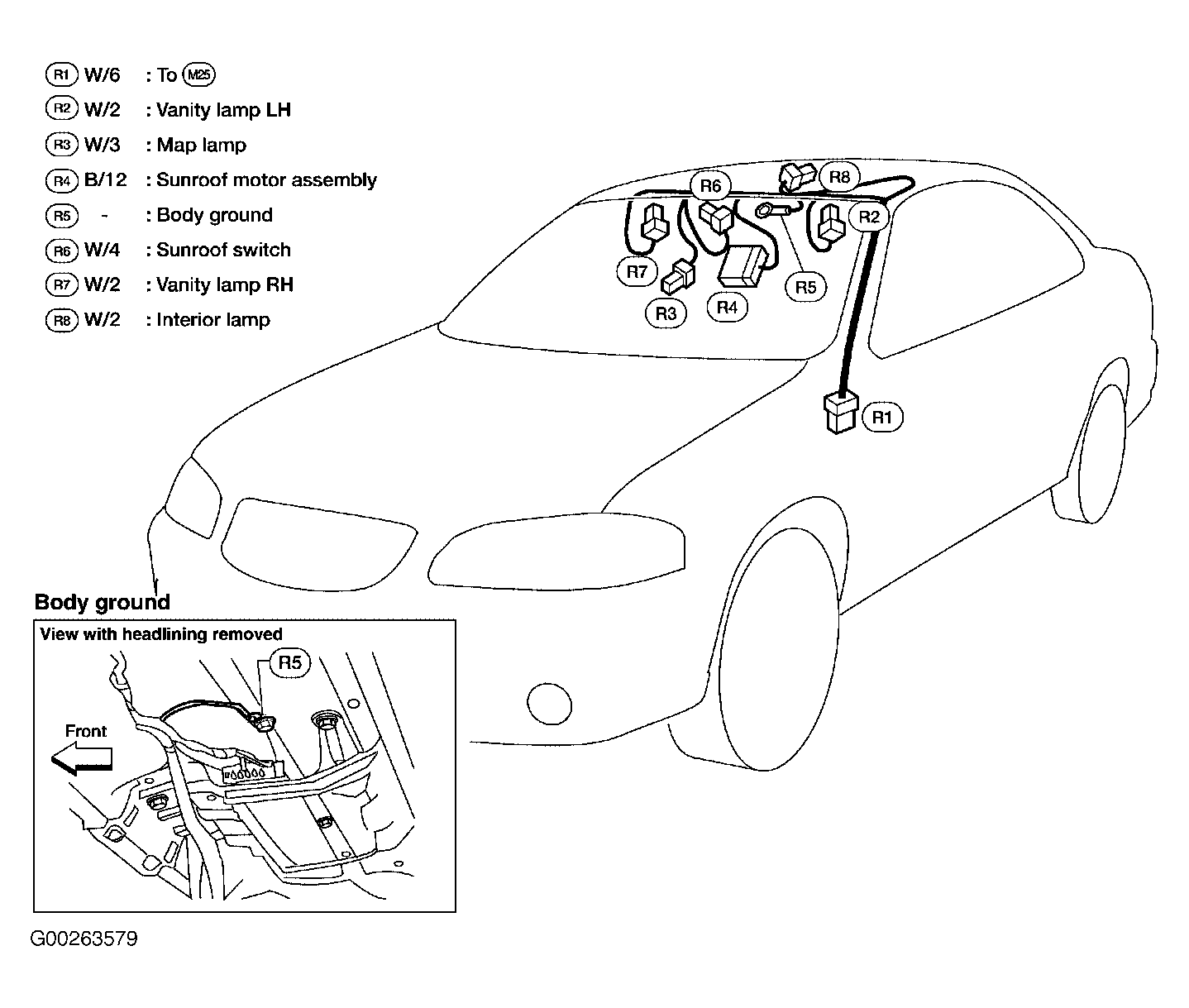

Fig 8: Headliner

Courtesy of NISSAN MOTOR CO., U.S.A.

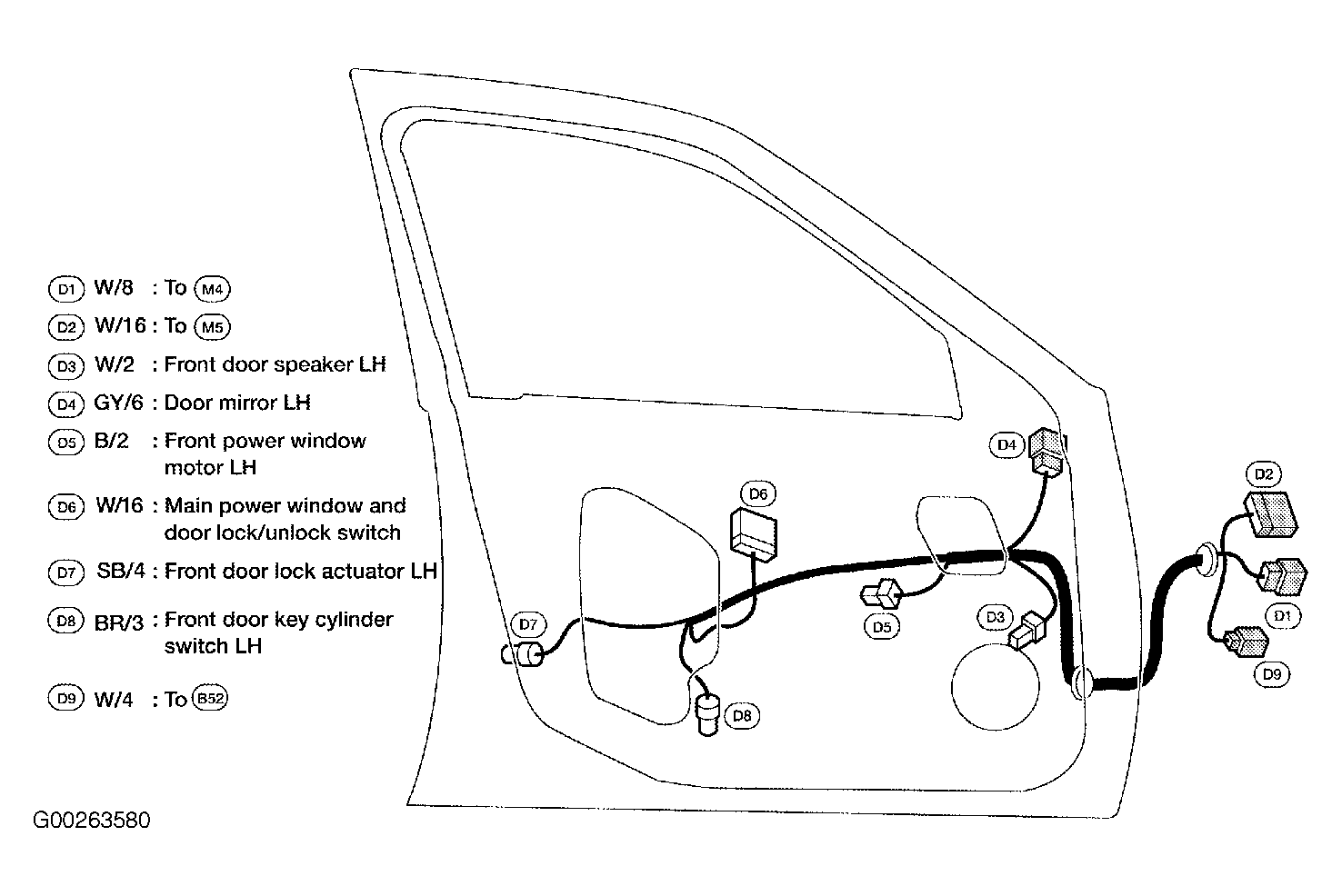

Fig 9: Left Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

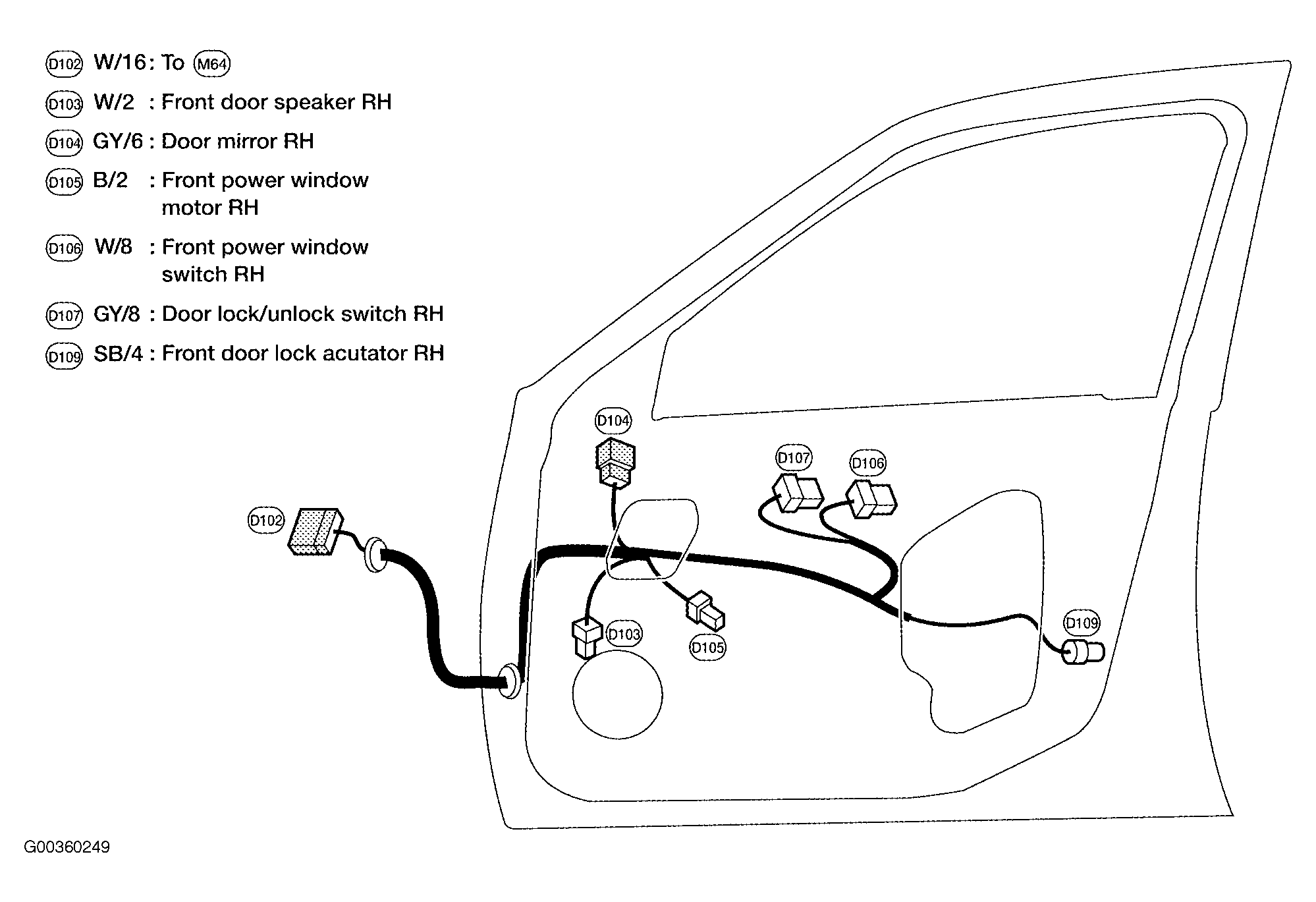

Fig 10: Right Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

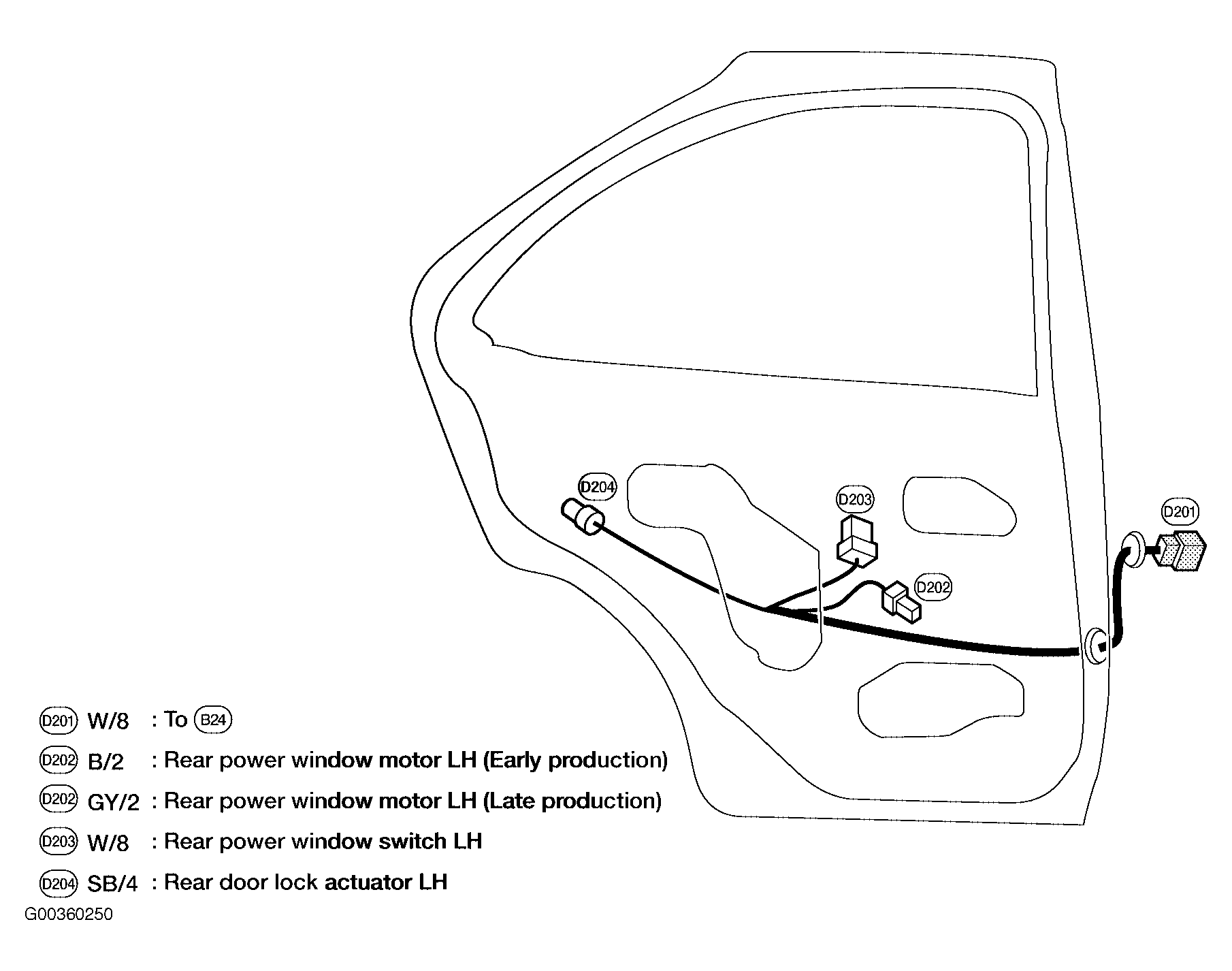

Fig 11: Left Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

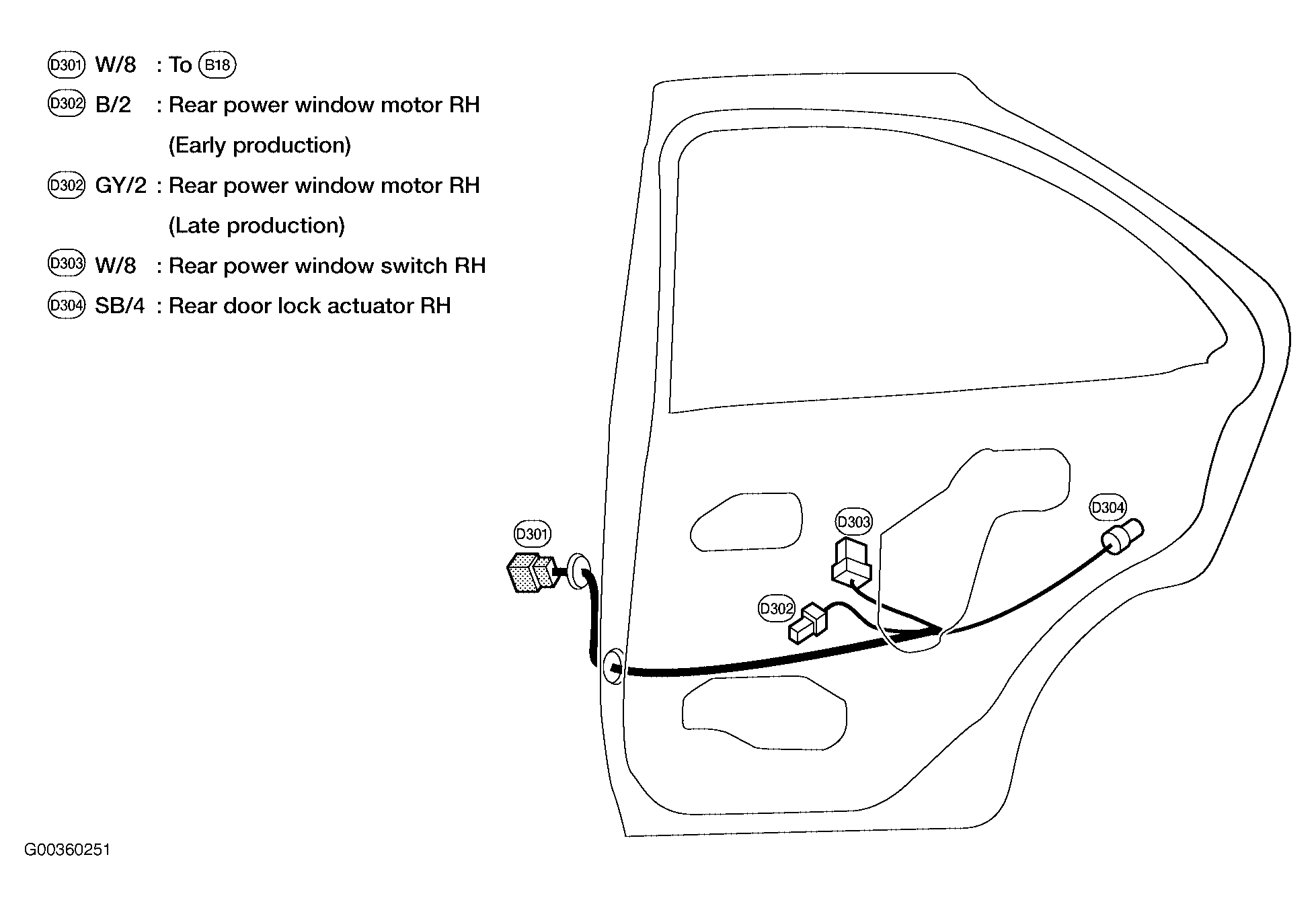

Fig 12: Right Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Front Of Passenger Compartment (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Front Of Passenger Compartment (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
