Diagnostic Procedure

  1. CHECK OVERALL FUNCTION-I

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-II.

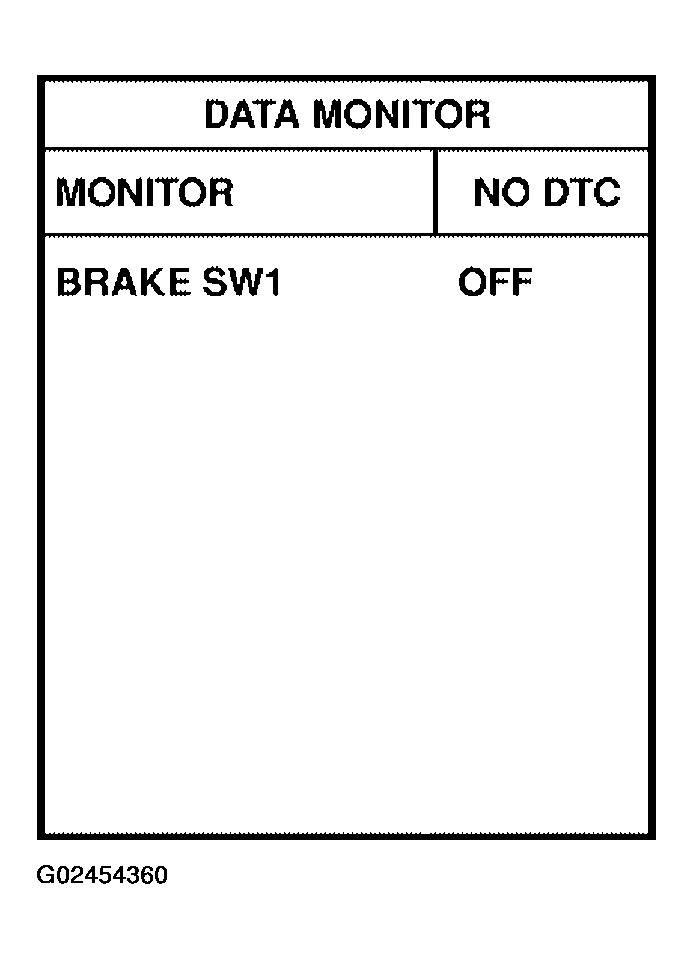

      Fig 1: DATA MONITOR, BRAKE SW1 - CONSULT-II Display Screen
      G02454360Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check "BRAKE SW1" indication under the following conditions.

      M/T models

      CLUTCH PEDAL AND/OR BRAKE PEDAL CONDITIONS AND INDICATION REFERENCE (M/T MODELS)

      CONDITION INDICATION
      Clutch pedal and/or brake pedal: Slightly depressed OFF
      Clutch pedal and brake pedal: Fully released ON

      A/T models

      BRAKE PEDAL CONDITIONS AND INDICATION REFERENCE (A/T MODELS)

      CONDITION INDICATION
      Brake pedal: Slightly depressed OFF
      Brake pedal: Fully released ON

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.

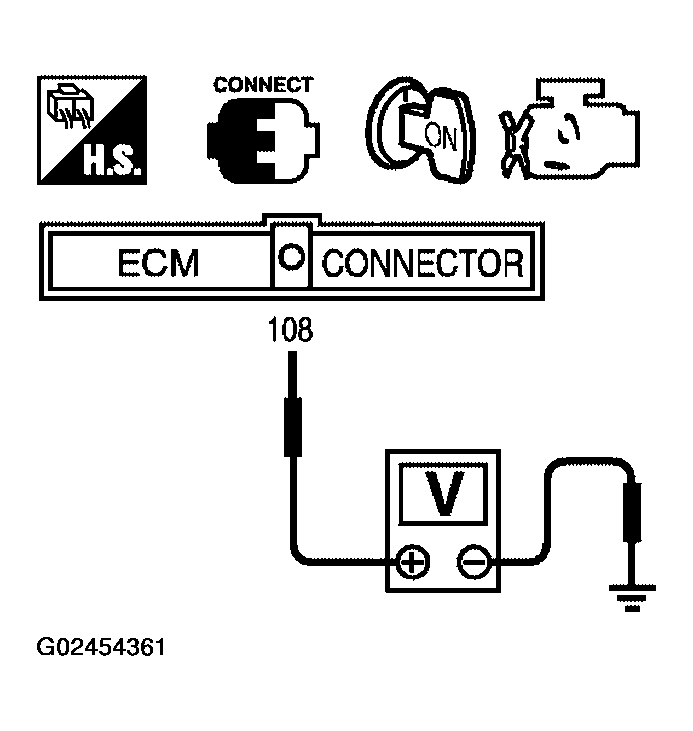

      Fig 2: Checking Voltage Between ECM Connector Terminal 108 And Ground
      G02454361Courtesy of NISSAN MOTOR CO., U.S.A.

      M/T models

      CLUTCH PEDAL AND/OR BRAKE PEDAL CONDITIONS AND VOLTAGE REFERENCE (M/T MODELS)

      CONDITION VOLTAGE
      Clutch pedal and/or brake pedal: Slightly depressed Approximately 0V
      Clutch pedal and brake pedal: Fully released Battery voltage

      A/T models

      BRAKE PEDAL CONDITIONS AND VOLTAGE REFERENCE (A/T MODELS)

      CONDITION VOLTAGE
      Brake pedal: Slightly depressed Approximately 0V
      Brake pedal: Fully released Battery voltage

    OK or NG

    1. OK : GO TO 2.
    2. NG (M/T models) : GO TO  3.
    3. NG (A/T models) : GO TO  4.
  2. CHECK OVERALL FUNCTION-II

    With CONSULT-II

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    Fig 3: DATA MONITOR, BRAKE SW2 - CONSULT-II Display Screen
    G02454362Courtesy of NISSAN MOTOR CO., U.S.A.
    BRAKE PEDAL CONDITIONS AND INDICATION REFERENCE (WITH CONSULT-II)

    CONDITION INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

    Without CONSULT-II

    Check voltage between ECM terminal 101 and ground under the following conditions.

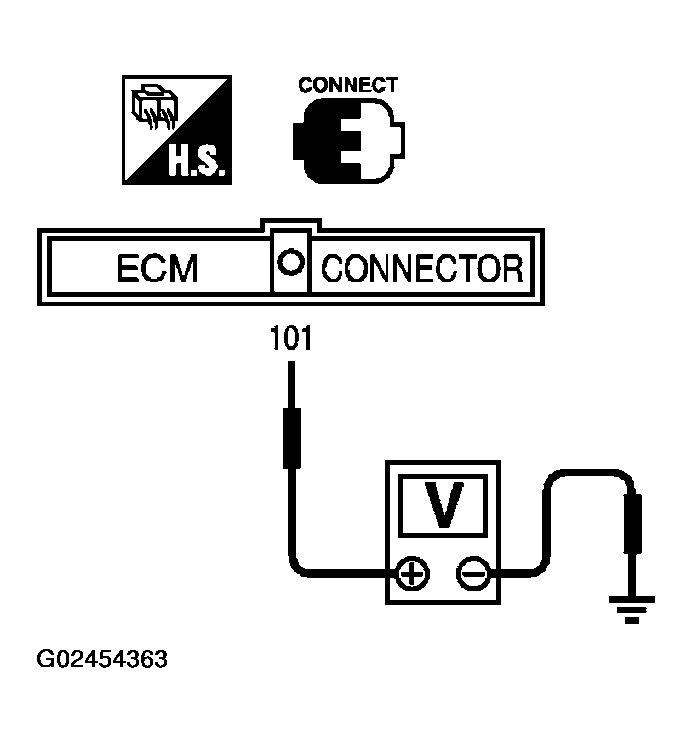

    Fig 4: Checking Voltage Between ECM Connector Terminal 101 And Ground
    G02454363Courtesy of NISSAN MOTOR CO., U.S.A.
    BRAKE PEDAL CONDITIONS AND INDICATION REFERENCE (WITHOUT CONSULT-II)

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage

    OK or NG

    1. OK : INSPECTION END
    2. NG : GO TO  13.
  3. CHECK ASCD BRAKE SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD clutch switch harness connector.

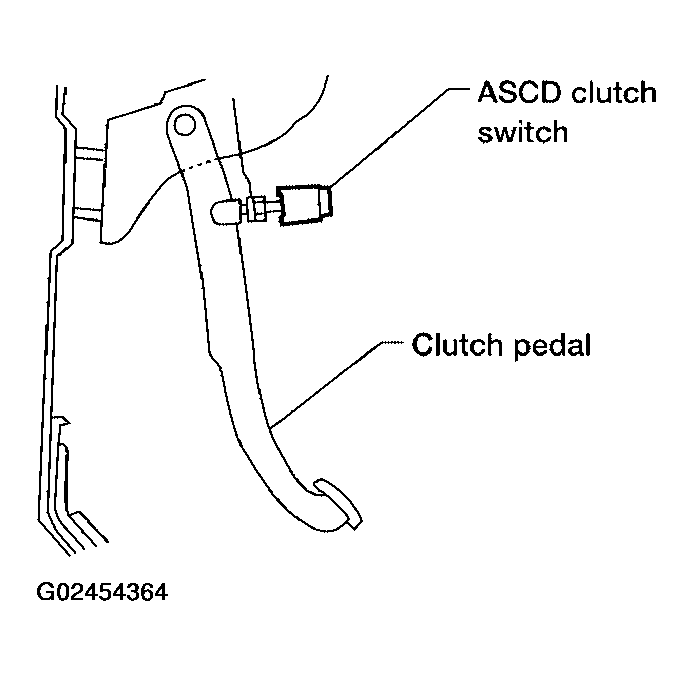

      Fig 5: Identifying ASCD Clutch Switch And Clutch Pedal
      G02454364Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch ON.
    4. Check voltage between ASCD clutch switch terminal 1 and ground under the following conditions with CONSULT-II or tester.

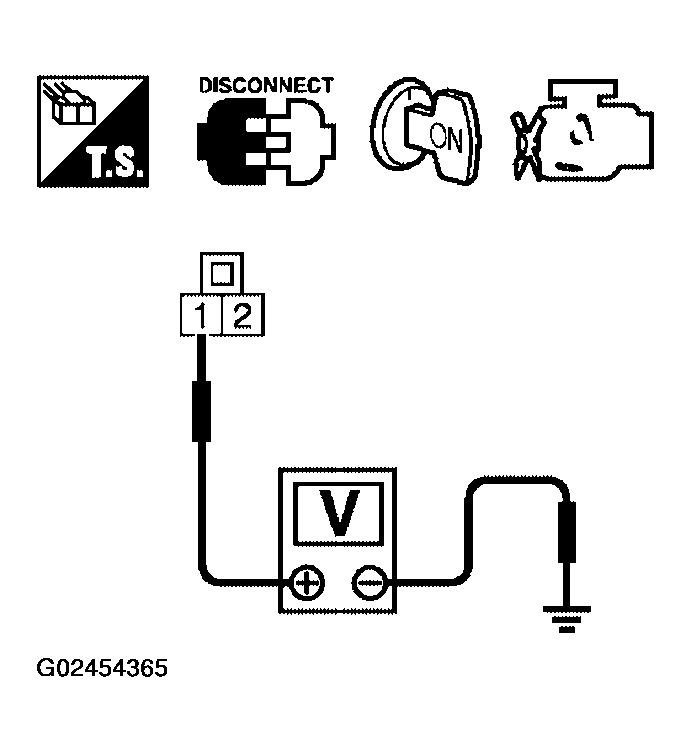

      Fig 6: Checking Voltage Between ASCD Clutch Switch Connector Terminal 1 And Ground
      G02454365Courtesy of NISSAN MOTOR CO., U.S.A.
      BRAKE PEDAL CONDITIONS AND VOLTAGE REFERENCE

      CONDITION VOLTAGE
      Brake pedal: Fully released Battery voltage
      Brake pedal: Slightly depressed Approx. 0V

    OK or NG

    1. OK : GO TO  10.
    2. NG : GO TO 4.
  4. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.

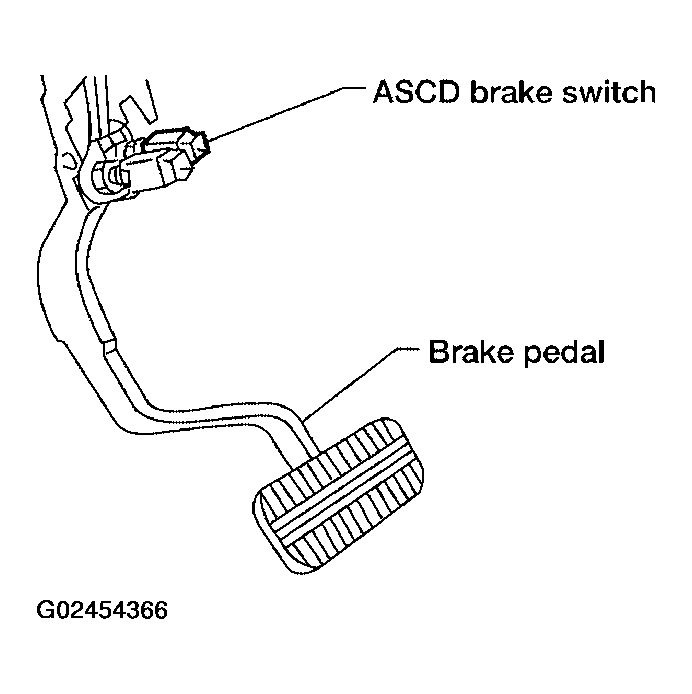

      Fig 7: Identifying ASCD Clutch Switch And Clutch Pedal
      G02454366Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch ON.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester
      1. Voltage: Battery voltage

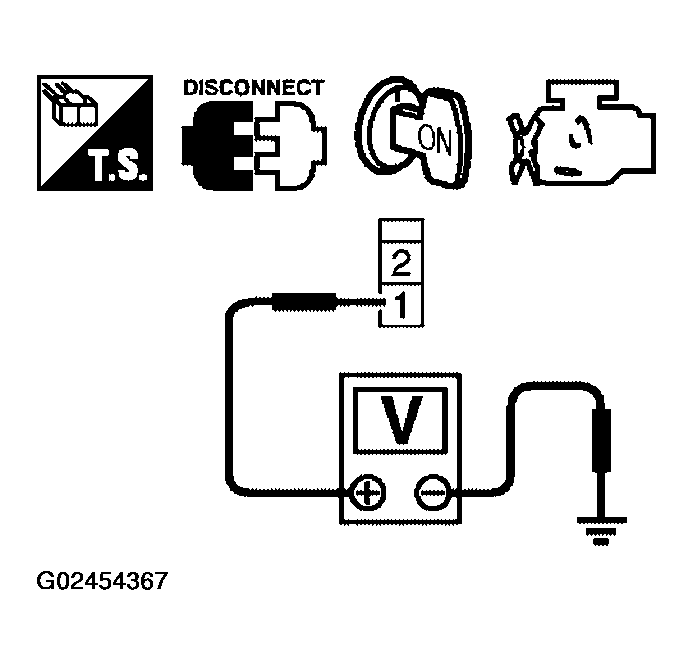

      Fig 8: Checking Voltage Between ASCD Brake Switch Connector Terminal 1 And Ground
      G02454367Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK (M/T models) : GO TO  6.
    2. OK (A/T models) : GO TO  7.
    3. NG : GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector M1
    • 10A fuse
    • Harness for open or short between ASCD brake switch and fuse
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1. Refer to WIRING DIAGRAM
      1. Continuity should exist.
    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  9.
    2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2. Refer to WIRING DIAGRAM
      1. Continuity should exist.
    4. Also check harness for short to ground or short to power.

    OK or NG

    1. OK : GO TO  9.
    2. NG : GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M59, F27
    • Harness for open or short between ECM and ASCD brake switch
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO  18.
    2. NG : Replace ASCD brake switch.
  10. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD clutch switch terminal 2. Refer to WIRING DIAGRAM
      1. Continuity should exist.
    4. Also check harness for short to ground or short to power.

    OK or NG

    1. OK : GO TO  12.
    2. NG : GO TO 11.
  11. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M59, F27
    • Harness for open or short between ECM and ASCD clutch switch
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  12. CHECK ASCD CLUTCH SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO  18.
    2. NG : Replace ASCD clutch switch.
  13. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.

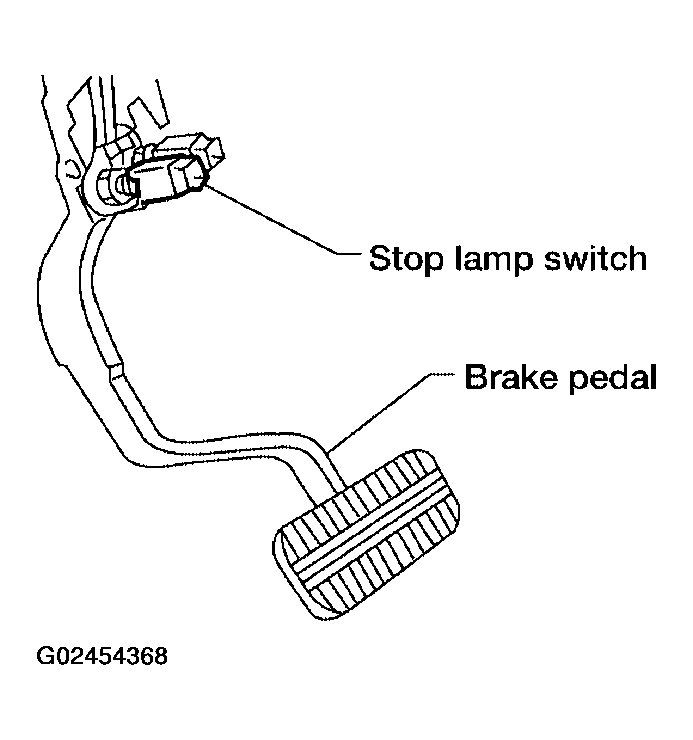

      Fig 9: Identifying Stop Lamp Switch And Brake Pedal
      G02454368Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT -II or tester.

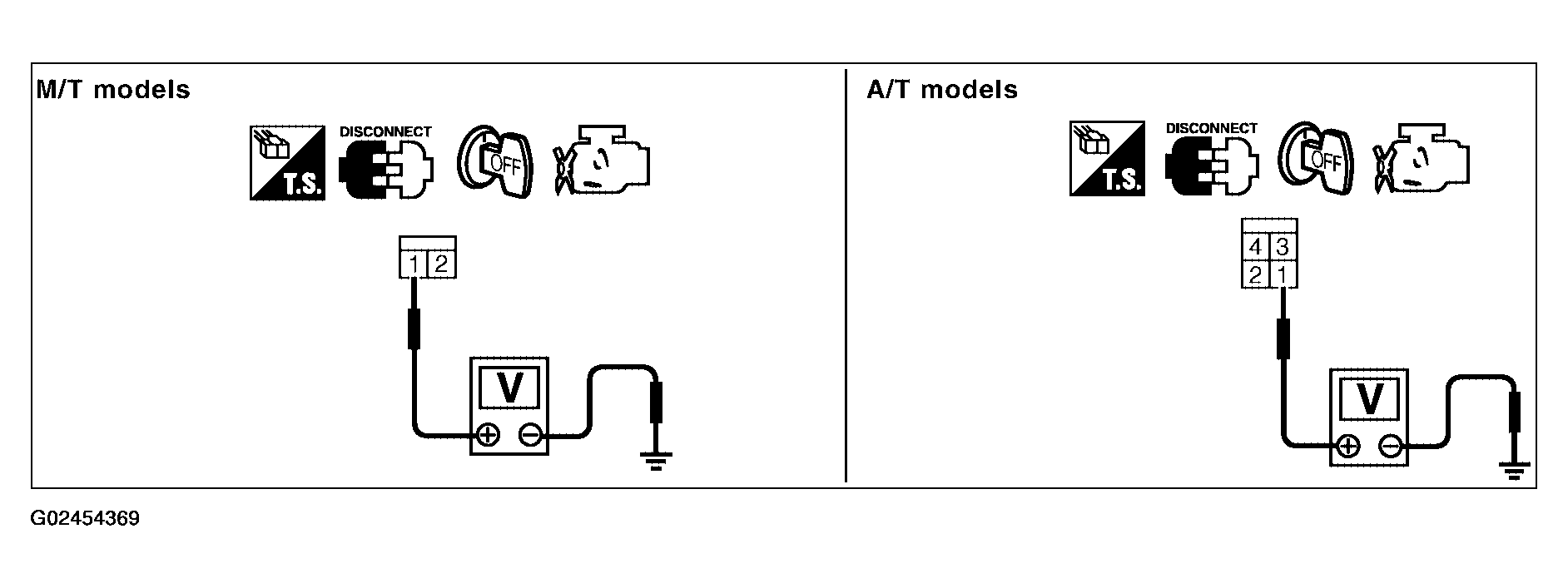

      Fig 10: Checking Voltage Between Stop Lamp Switch Connector Terminal 1 And Ground
      G02454369Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Voltage: Battery voltage

    OK or NG

    1. OK : GO TO  15.
    2. NG : GO TO 14.
  14. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector M2
    • 10A fuse
    • Harness for open or short between stop lamp switch and fuse
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  15. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2. Refer to WIRING DIAGRAM
      1. Continuity should exist.
    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  17.
    2. NG : GO TO 16.
  16. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M59, F27
    • Harness for open or short between ECM and stop lamp switch
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  17. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO 18.
    2. NG : Replace stop lamp switch.
  18. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
