ECM Relay

  1. Apply 12V direct current between ECM relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5, 6 and 7.

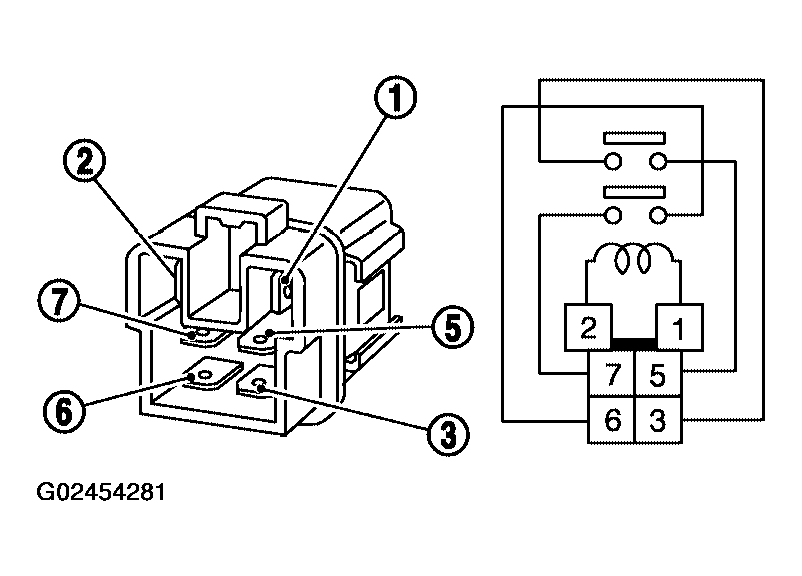

    Fig 1: Checking Continuity Between ECM Relay Terminals 3 And 5, 6 And 7
    G02454281Courtesy of NISSAN MOTOR CO., U.S.A.
    ECM RELAY TERMINALS 1 & 2 CONDITIONS AND CONTINUITY REFERENCE

    Condition Continuity
    12V direct current supply between terminals 1 and 2 Yes
    OFF No
  3. If NG, replace ECM relay.
