Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in Fig 1.
    1. Resistance: 11.6 - 14.9 ohm [at 10 - 60°C (50 - 140°F)]

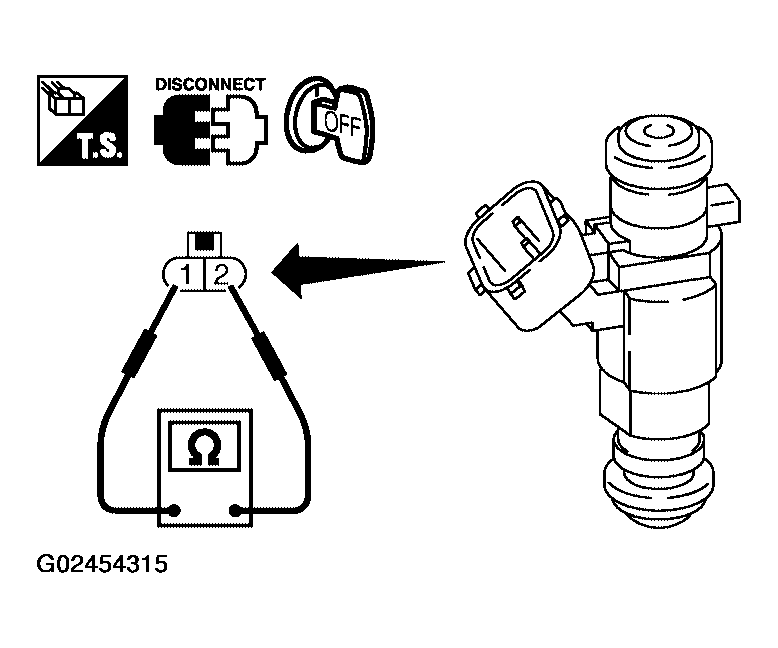

    Fig 1: Checking Resistance Between Fuel Injector Terminals
    G02454315Courtesy of NISSAN MOTOR CO., U.S.A.
