VIAS Control Solenoid Valve

With CONSULT-II

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
4. Check air passage continuity and operation delay time under the following conditions.
   Fig 1: Identifying VIAS Control Solenoid Valve Ports

   Courtesy of NISSAN MOTOR CO., U.S.A.
   VIAS SOL VALVE CONDITION AND AIR PASSAGE CONTINUITY REFERENCE



   Condition VIAS SOL VALVE	Air passage continuity between A and B	Air passage continuity between A and C
   ON	Yes	No
   OFF	No	Yes

   Operation takes less than 1 second.

With GST

Check air passage continuity and operation delay time under the following conditions.

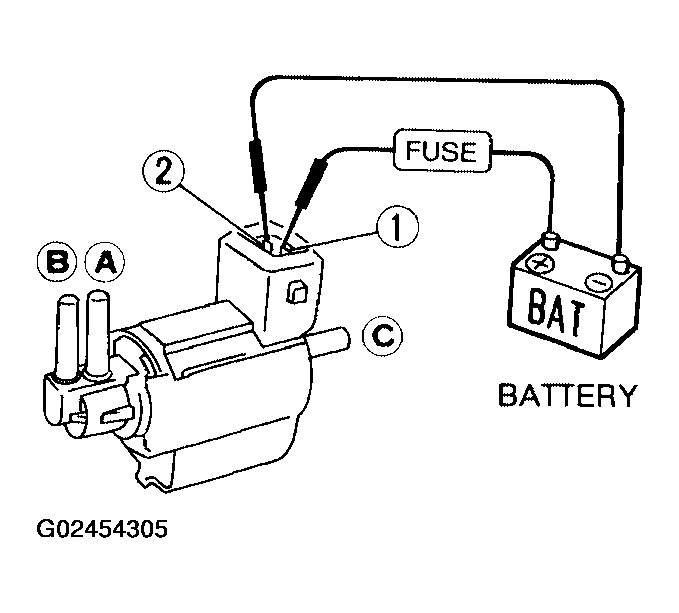

Fig 2: Checking VIAS Control Solenoid Valve Air Passage Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.
