Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the port A  of vacuum tank.
  3. Apply vacuum and make sure that vacuum exists at the port B  .

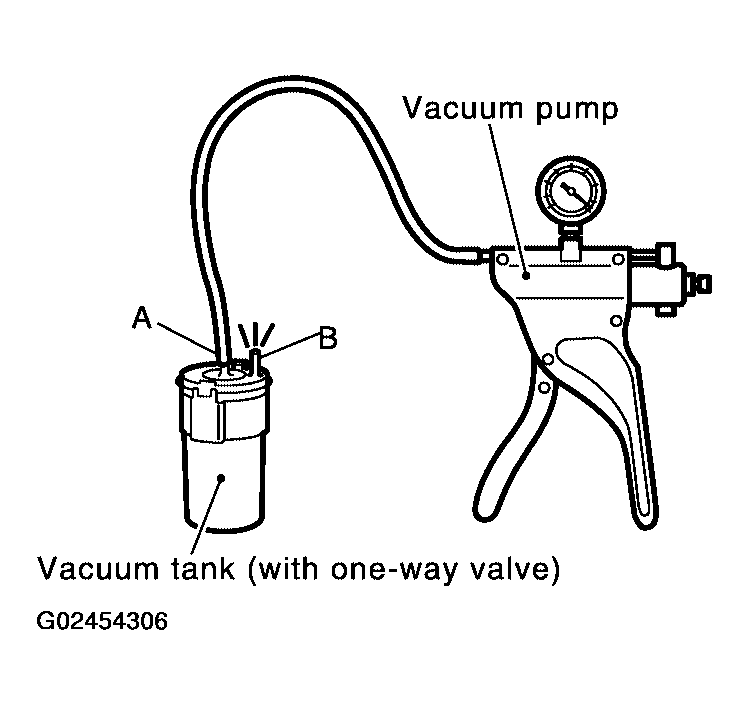

    Fig 1: Connecting Vacuum Pump To Port A Of Vacuum Tank
    G02454306Courtesy of NISSAN MOTOR CO., U.S.A.
