A/T Models ULEV And M/T Models

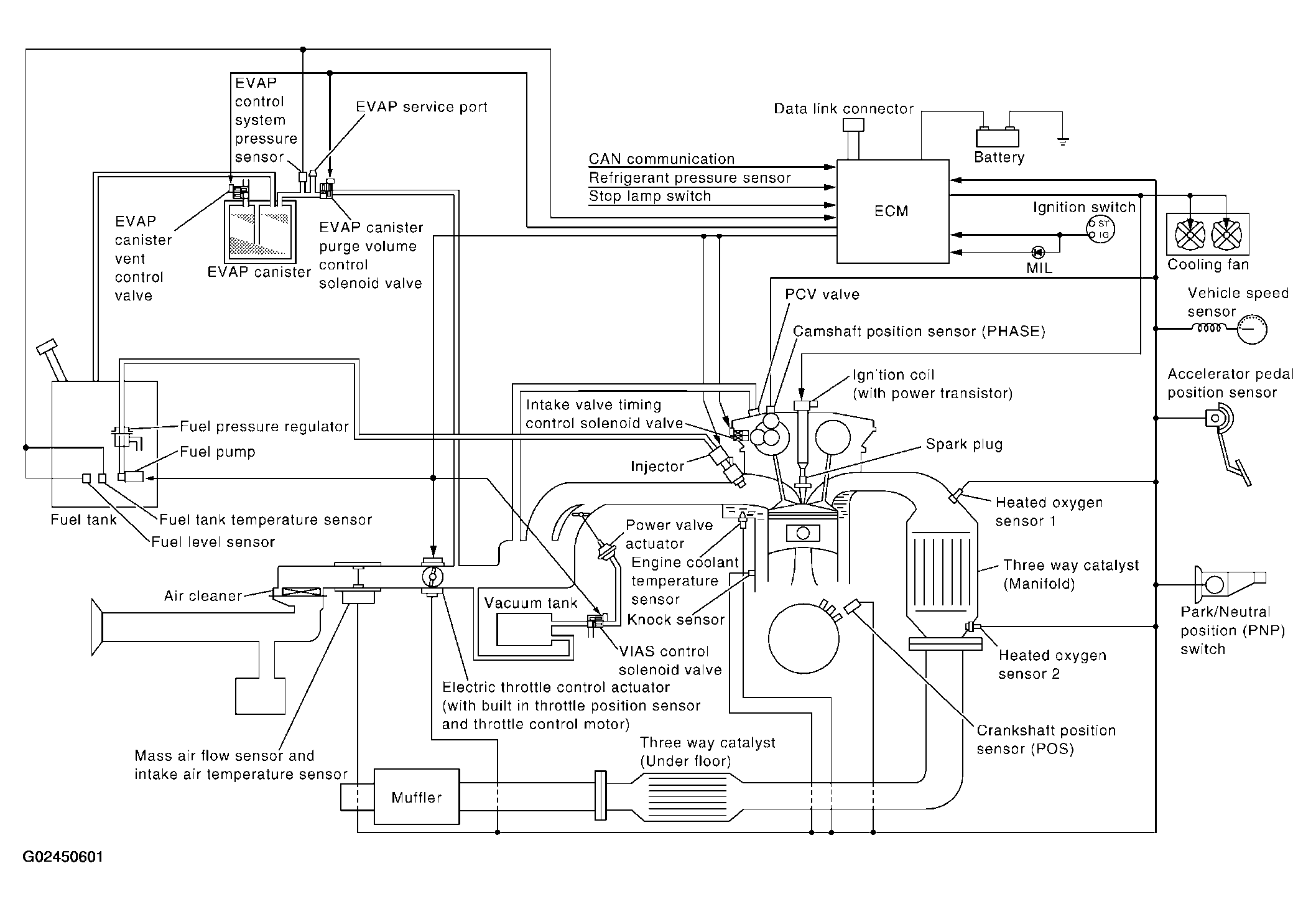

Fig 1: Engine Control System Diagram - 2.5L (A/T Models ULEV And M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
