NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

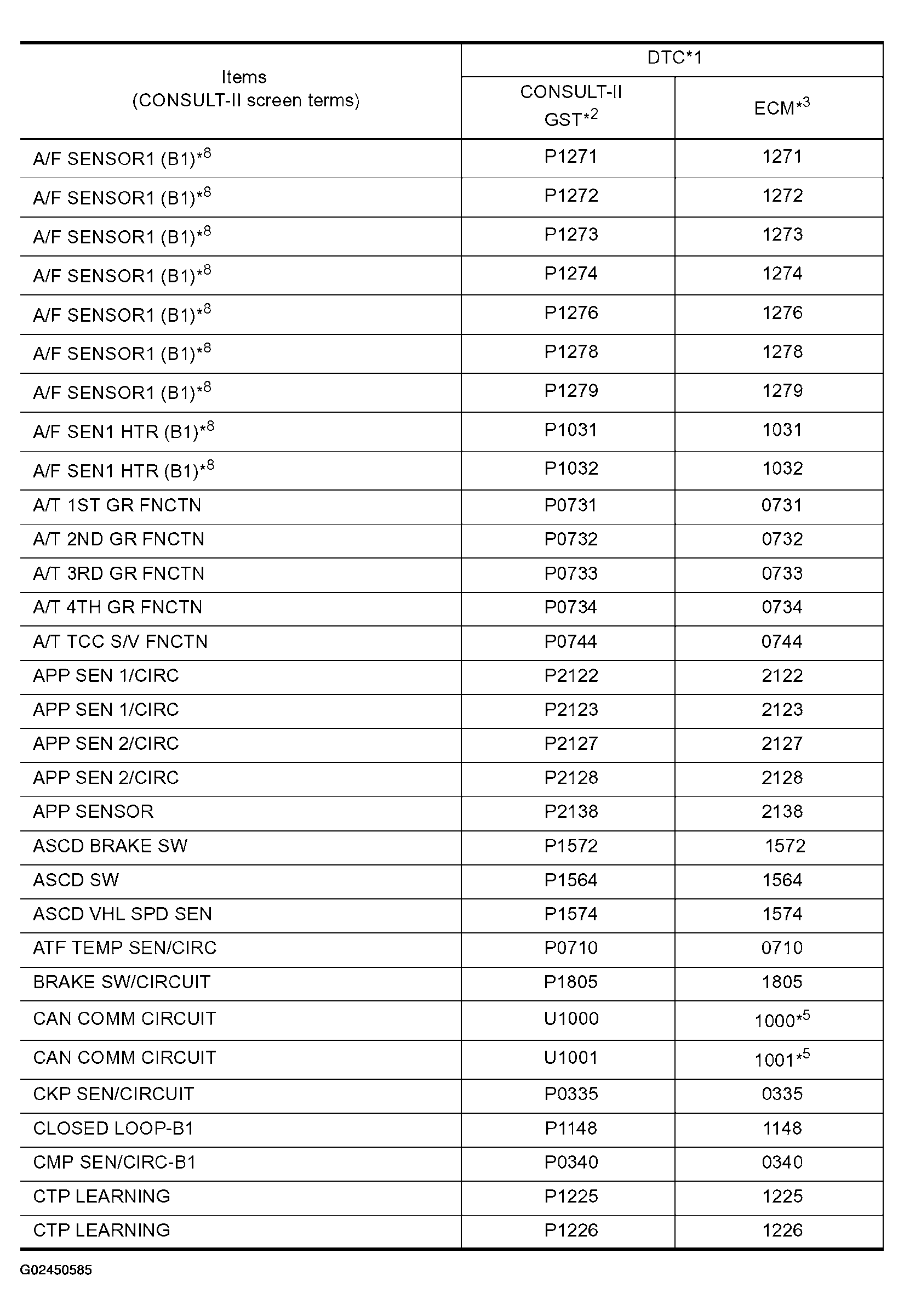

Fig 1: DTC Identification Chart - Sorted By CONSULT-II Screen Text (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: See Fig 4 for footnote reference explanation.

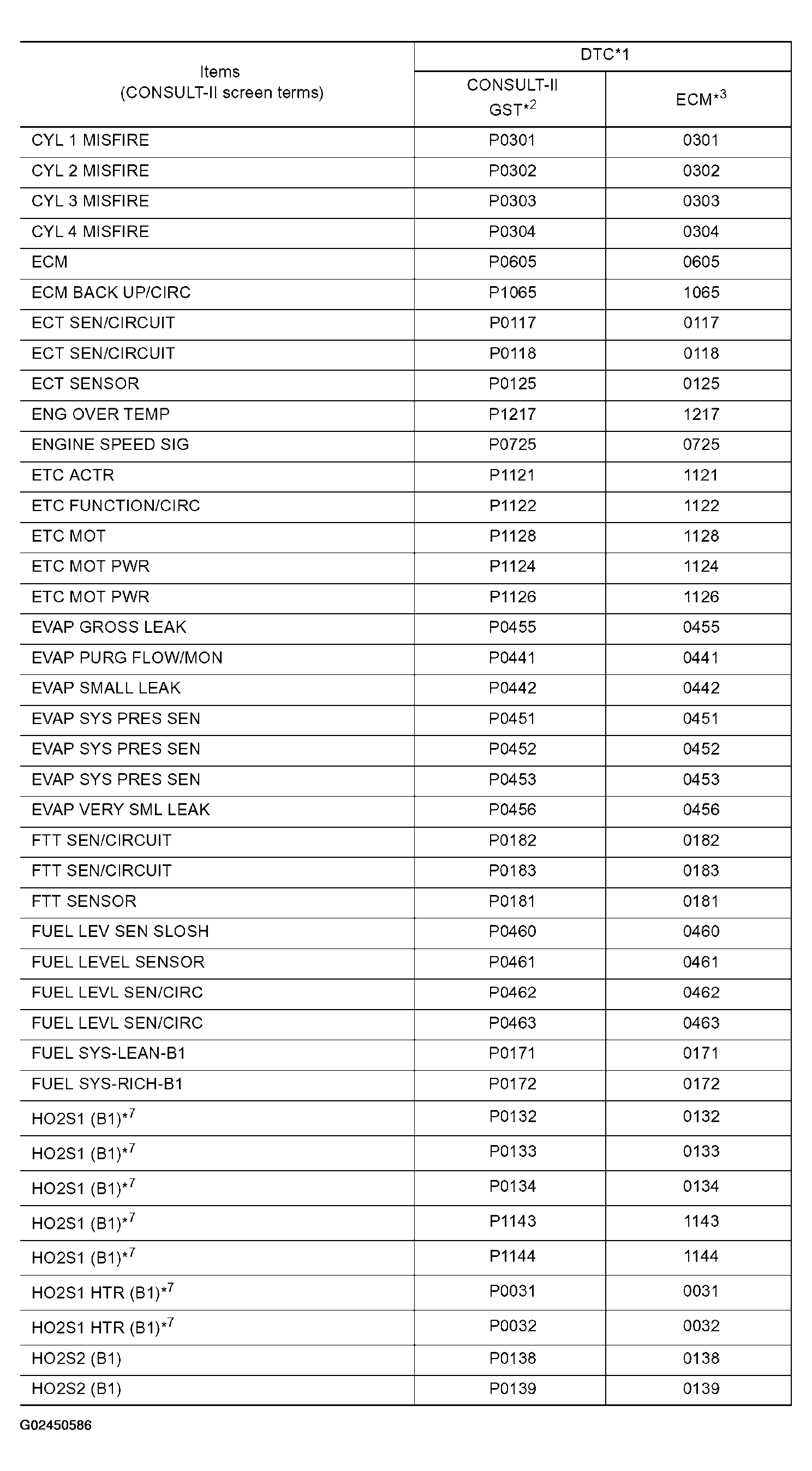

Fig 2: DTC Identification Chart - Sorted By CONSULT-II Screen Text (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: See Fig 4 for footnote reference explanation.

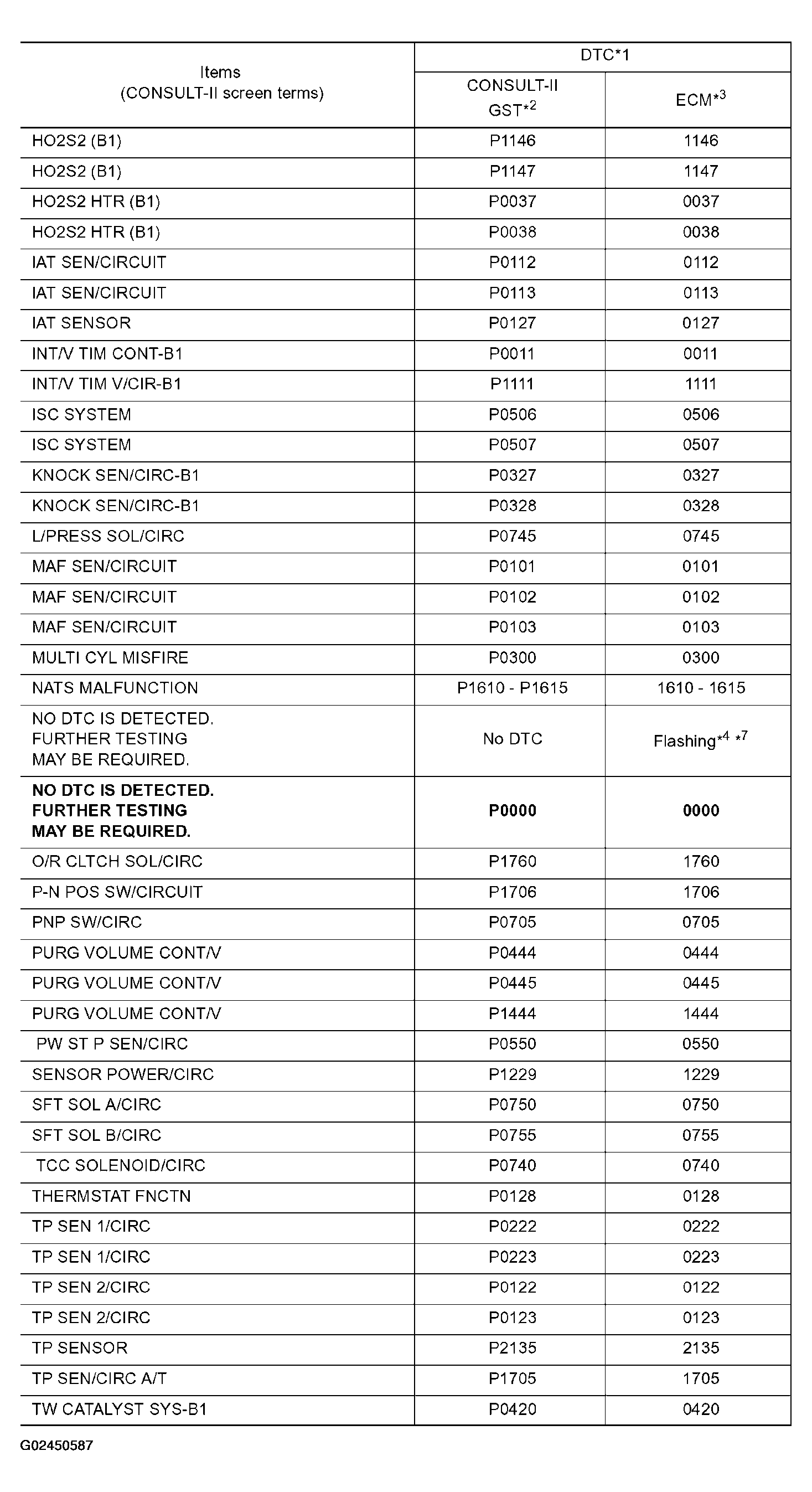

Fig 3: DTC Identification Chart - Sorted By CONSULT-II Screen Text (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: See Fig 4 for footnote reference explanation.

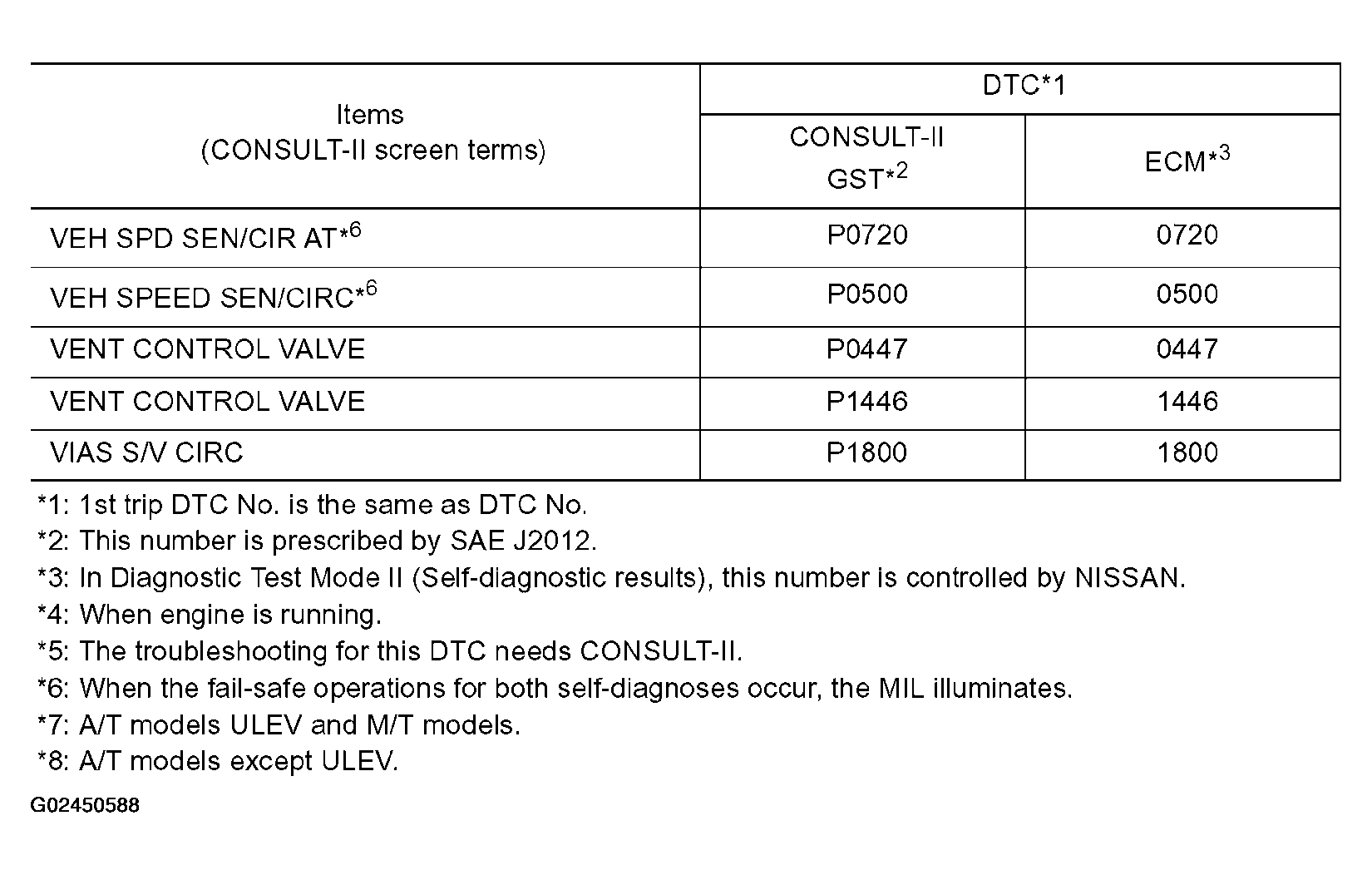

Fig 4: DTC Identification Chart - Sorted By CONSULT-II Screen Text (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
