Generic Scan Tool (GST) Function: Function

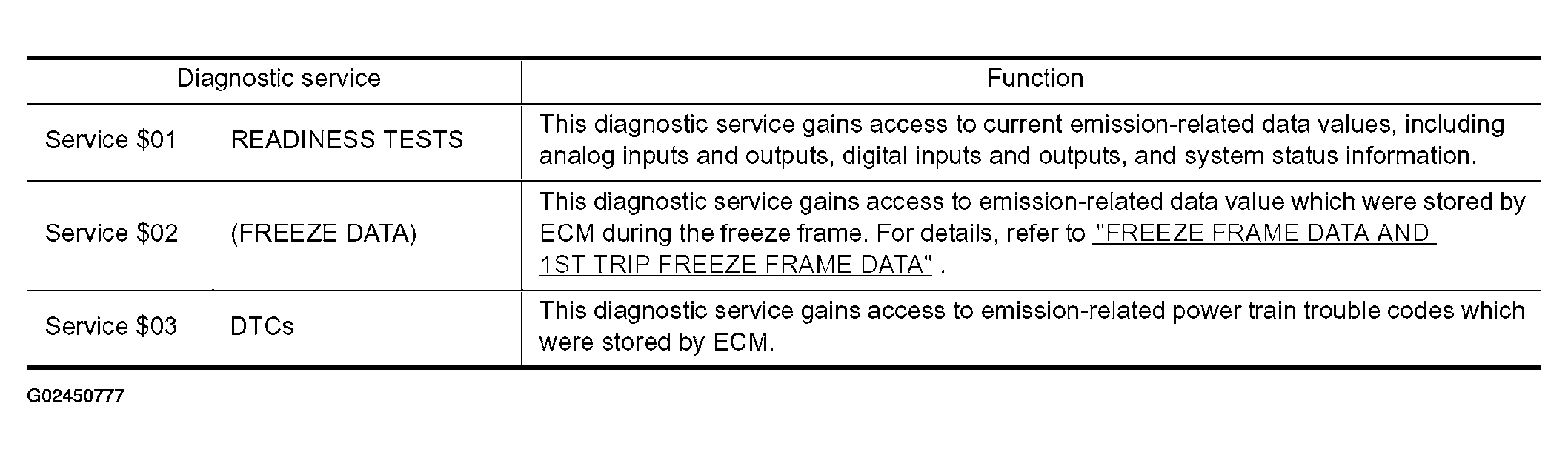

Fig 1: Generic Scan Tool Function (Mode) Chart (1 Of 2)
G02450777Courtesy of NISSAN MOTOR CO., U.S.A.

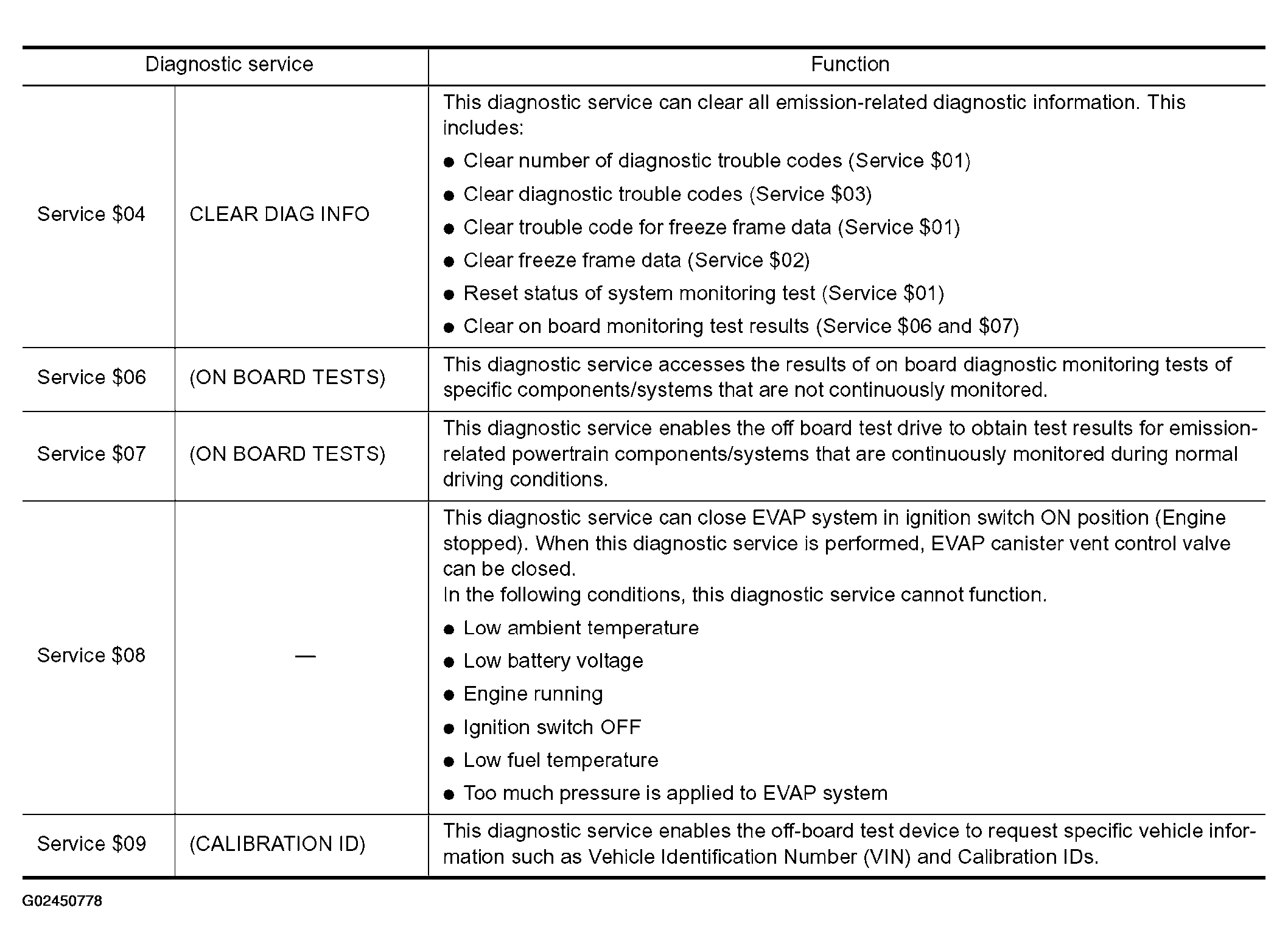

Fig 2: Generic Scan Tool Function (Mode) Chart (2 Of 2)
G02450778Courtesy of NISSAN MOTOR CO., U.S.A.
