General Precautions

WARNING: When replacing fuel line parts, be sure to observe the following.

Put a "CAUTION: FLAMMABLE" sign in the work area.
Be sure to work in a well ventilated area and have a CO2 fire extinguisher.
Do not smoke while working on the fuel system. Keep open flames and sparks away from the work area.
CAUTION:
- Before removing fuel line parts, carry out the following procedures:
  - Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in safe area.
  - Release fuel pressure from the fuel lines. Refer to , "FUEL PRESSURE RELEASE " (QR25DE), , "FUEL PRESSURE RELEASE " (VQ35DE).
  - Disconnect the battery ground cable.
- Always replace O-rings and clamps with new ones.
- Do not kink or twist tubes when they are being installed.
- Do not tighten hose clamps excessively to avoid damaging hoses. Tighten high-pressure rubber hose clamp so that clamp end is 3 mm (0.12 in) from hose end.
  Tightening torque specifications are the same for all rubber hose clamps.

  Ensure that screw does not contact adjacent parts.

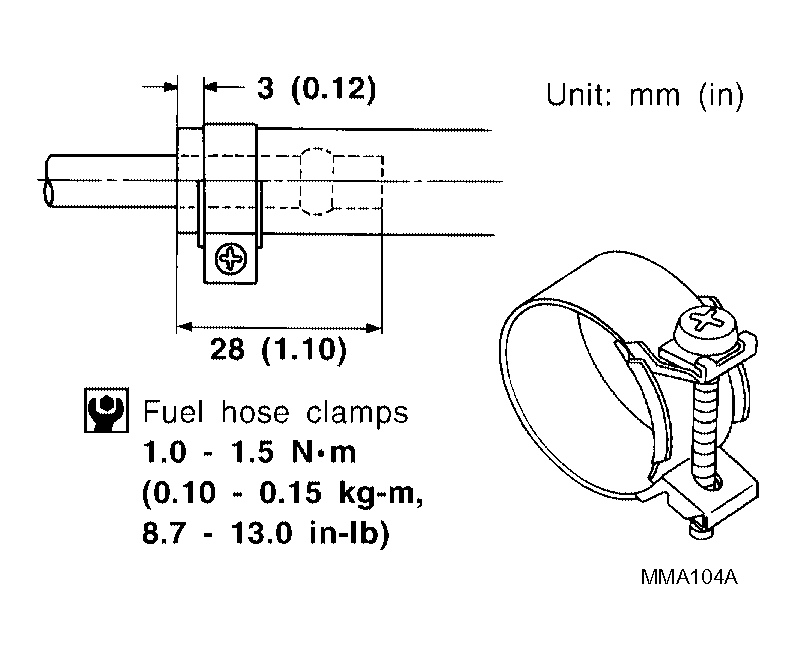

  Fig 1: Tightening Fuel Hose Clamps
  Courtesy of NISSAN MOTOR CO., U.S.A.
- After connecting the fuel tube quick connectors, make sure the quick connectors are secure.
  Check that the connector and resin tube do not contact any adjacent parts.
  - Apply fuel pressure to the fuel system by turning the ignition switch to ON (without starting the engine). Then check for fuel leaks at the fuel tube connections.
  - Start the engine and rev the engine, then check for fuel leaks at the fuel tube connections.

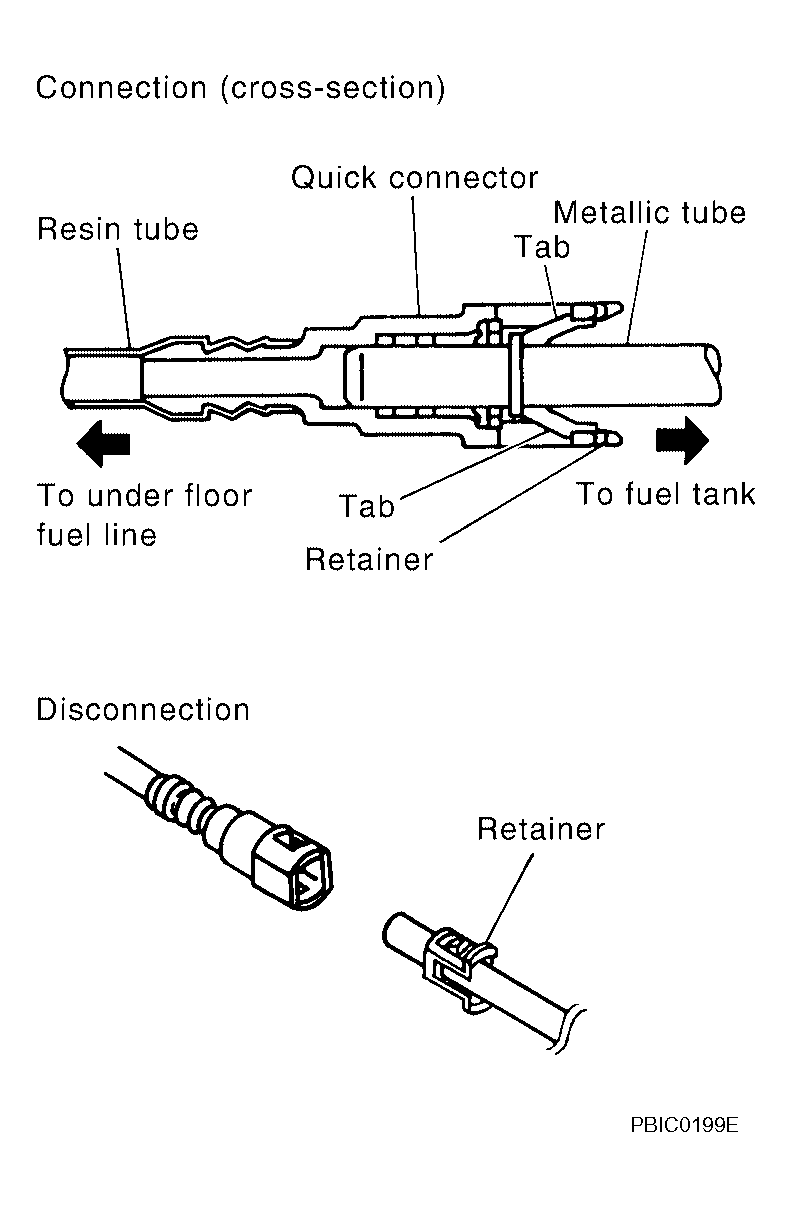

    Fig 2: Connecting Fuel Tube Quick Connectors
    Courtesy of NISSAN MOTOR CO., U.S.A.
- After installing the tubes, run the engine and check for fuel leaks at the connections.
- Use only a Genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
- For servicing "Evaporative Emission System" parts, Refer to , "EVAPORATIVE EMISSION SYSTEM " (QR25DE), , "EVAPORATIVE EMISSION SYSTEM " (VQ35DE).
- For servicing "On Board Refueling Vapor Recovery (ORVR)" parts, Refer to , "ON BOARD REFUELING VAPOR RECOVERY (ORVR) " (QR25DE), , "ON BOARD REFUELING VAPOR RECOVERY (ORVR) "(VQ35DE).
