Basic Inspection

  1. INSPECTION START
    1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
    2. Open engine hood and check the following:
      • Harness connectors for improper connections
      • Wiring harness for improper connections, pinches and cut
      • Vacuum hoses for splits, kinks and improper connections
      • Hoses and ducts for leaks
      • Air cleaner clogging
      • Gasket

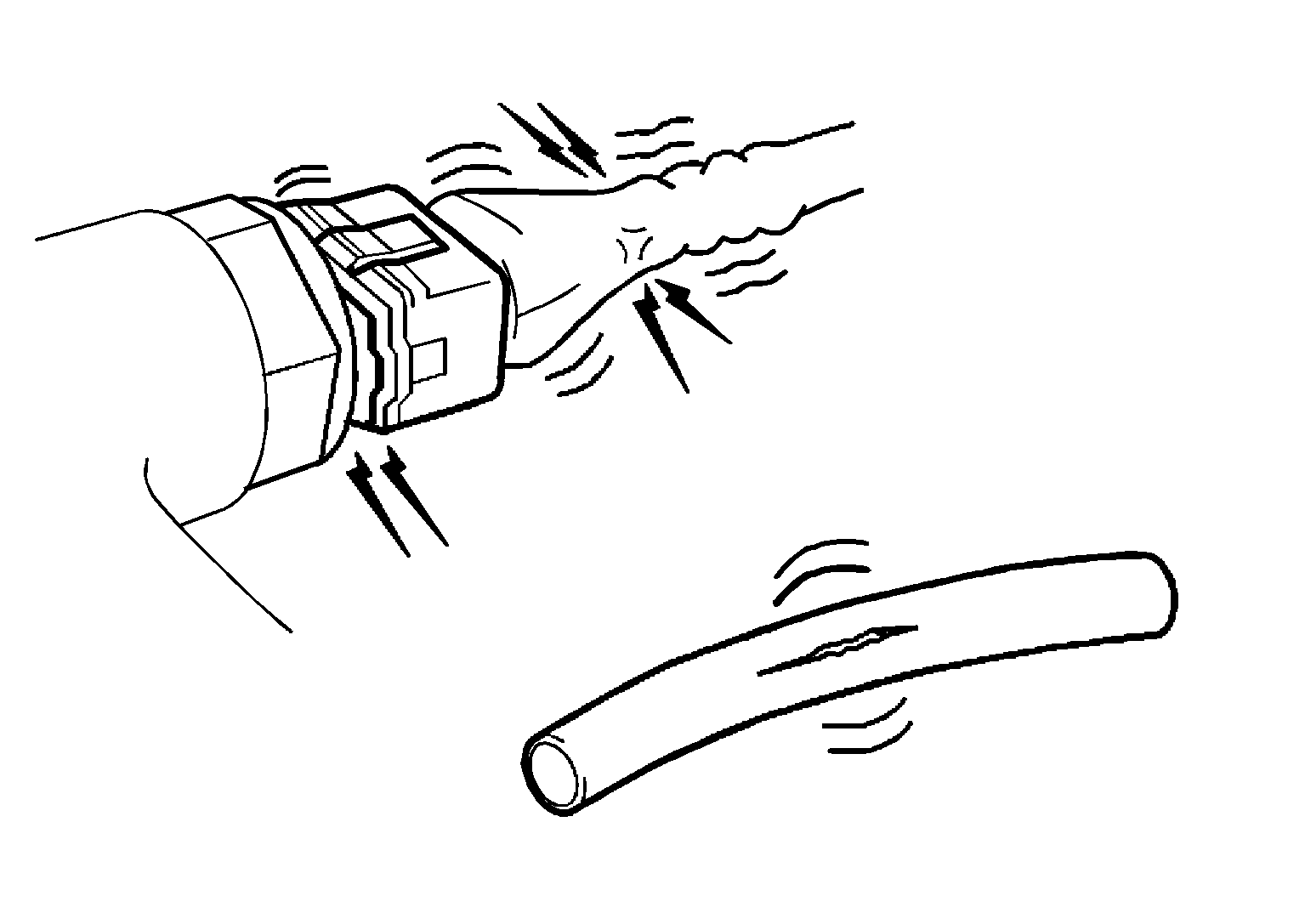

      3. Fig 1: Inspecting For Damage To Harness And Hoses
      G04074533Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Confirm that electrical or mechanical loads are not applied.
      • Headlamp switch is OFF.
      • Air conditioner switch is OFF.
      • Rear window defogger switch is OFF.
      • Steering wheel is in the straight-ahead position, etc.
    4. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.

      Ensure engine stays below 1, 000 rpm.

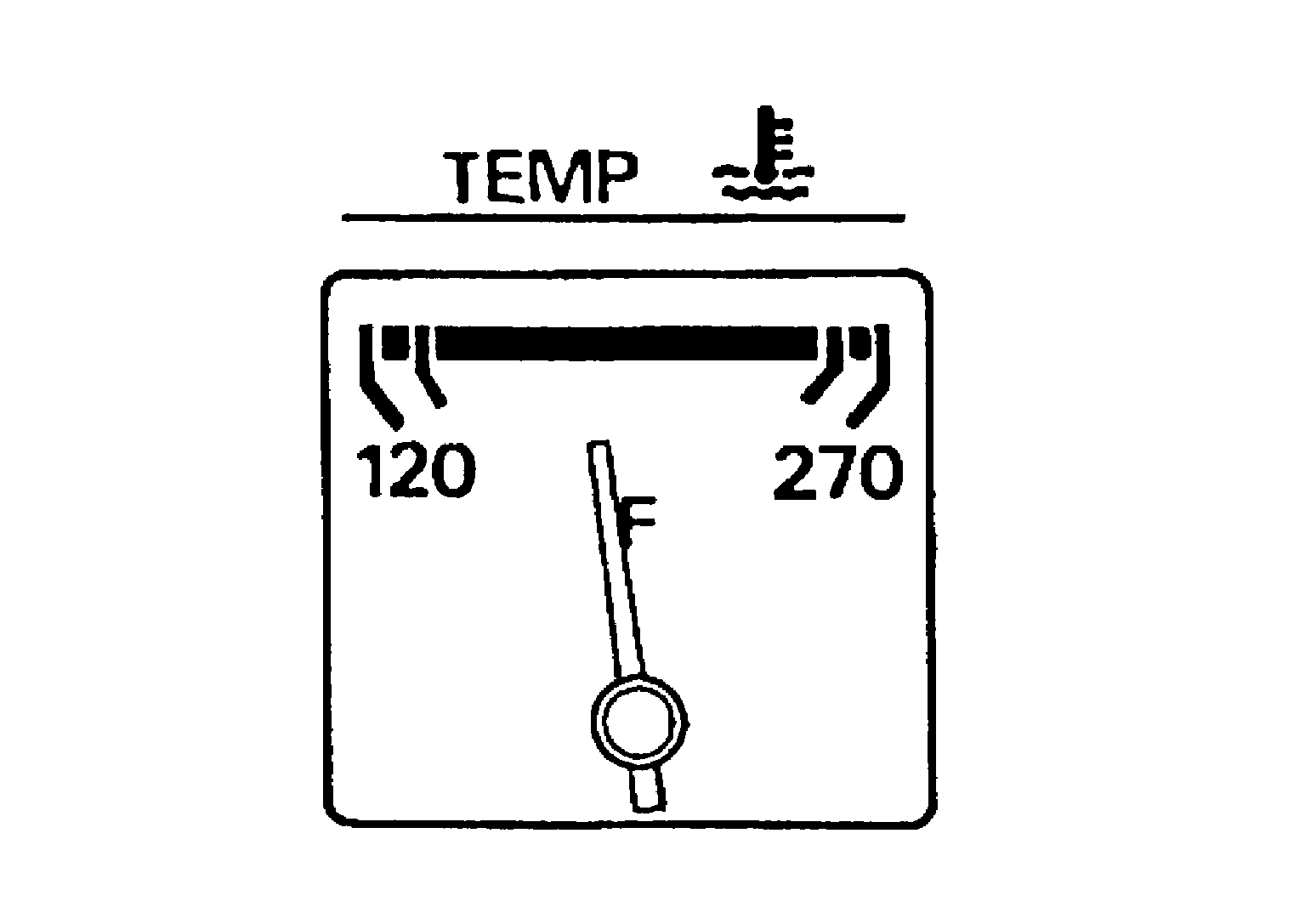

      Fig 2: Engine Coolant At Specified Temperature
      G04074534Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Run engine at about 2, 000 rpm for about 2 minutes under no load.
    6. Make sure that no DTC is displayed with CONSULT-II or GST.

    OK or NG

    OK : GO TO  3.

    NG : GO TO 2.

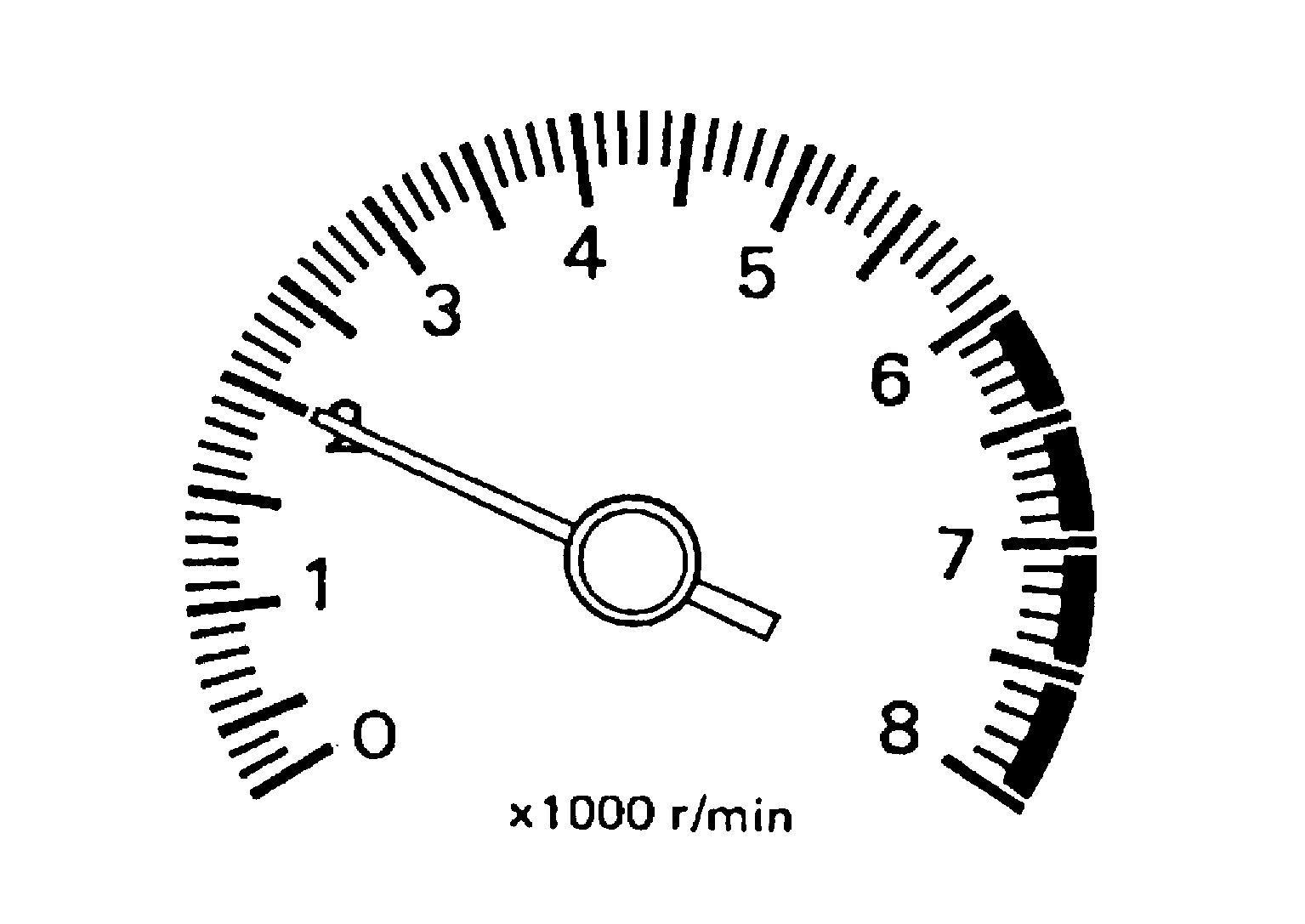

    Fig 3: Run Engine At Specified RPM
    G04074535Courtesy of NISSAN MOTOR CO., U.S.A.
  2. REPAIR OR REPLACE

    Repair or replace components as necessary according to corresponding Diagnostic Procedure.

    : GO TO 3.

  3. CHECK TARGET IDLE SPEED

    With CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no load.
    2. Rev engine (2, 000 to 3, 000 rpm) 2 or 3 times under no load, then run engine at idle speed for about 1 minute.

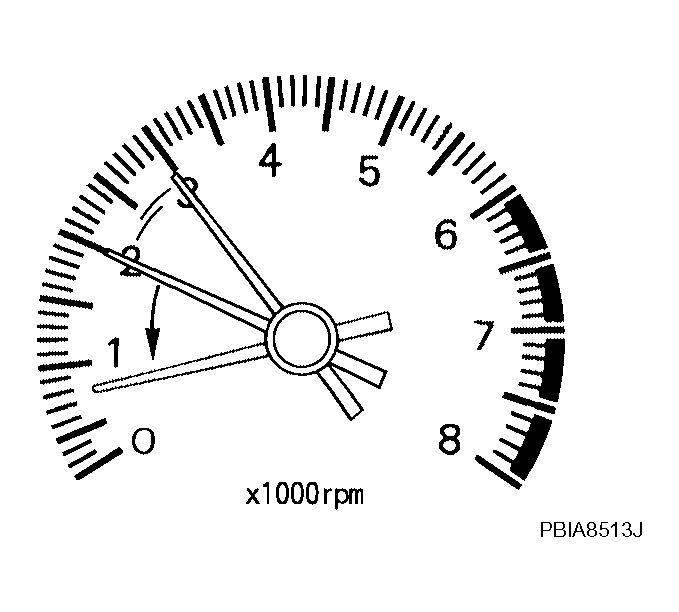

      Fig 4: Checking Target Idle Speed
      G04166820Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Read idle speed in "DATA MONITOR" mode with CONSULT-II. Refer to , "IDLE SPEED ".

      A/T: 675 +/- 50 rpm (in P or N position)

      M/T: 625 +/- 50 rpm (in neutral position)

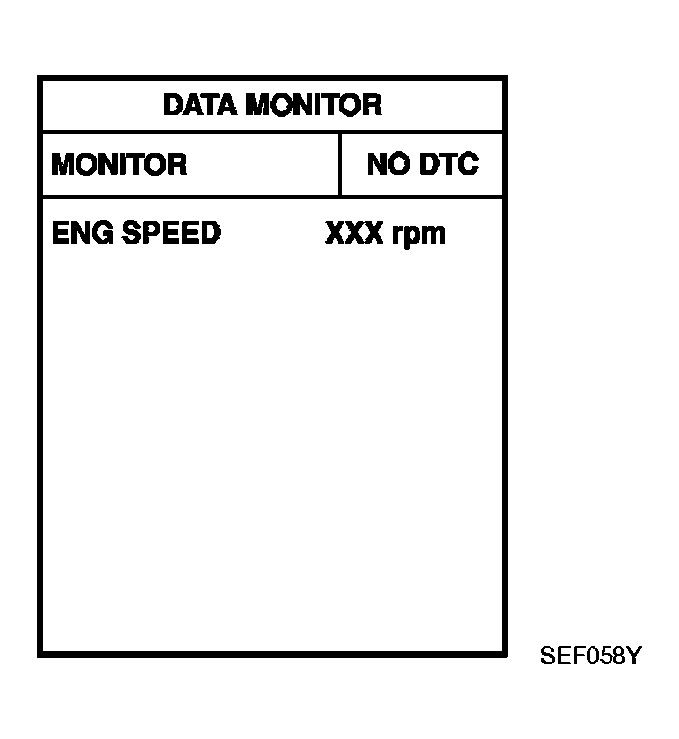

      Fig 5: Consult-II DATA MONITOR Display Screen
      G04080353Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no load.
    2. Rev engine (2, 000 to 3, 000 rpm) 2 or 3 times under no load, then run engine at idle speed for about 1 minute.
    3. Check idle speed. Refer to , "IDLE SPEED ".

      A/T: 675 +/- 50 rpm (in P or N position)

      M/T: 625 +/- 50 rpm (in neutral position)

      OK or NG

    OK : GO TO  10.

    NG : GO TO 4.

  4. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform , "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".

    : GO TO 5.

  5. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform , "THROTTLE VALVE CLOSED POSITION LEARNING ".

    : GO TO 6.

  6. PERFORM IDLE AIR VOLUME LEARNING

    Refer to , "IDLE AIR VOLUME LEARNING ".

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    Yes : GO TO 7.

    No :

    1. Follow the instruction of Idle Air Volume Learning.
    2. GO TO  4.
  7. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

      Refer to , "IDLE SPEED ".

      A/T: 675 +/- 50 rpm (in P or N position)

      M/T: 625 +/- 50 rpm (in neutral position)

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed. Refer to , "IDLE SPEED ".

      A/T: 675 +/- 50 rpm (in P or N position)

      M/T: 625 +/- 50 rpm (in neutral position)

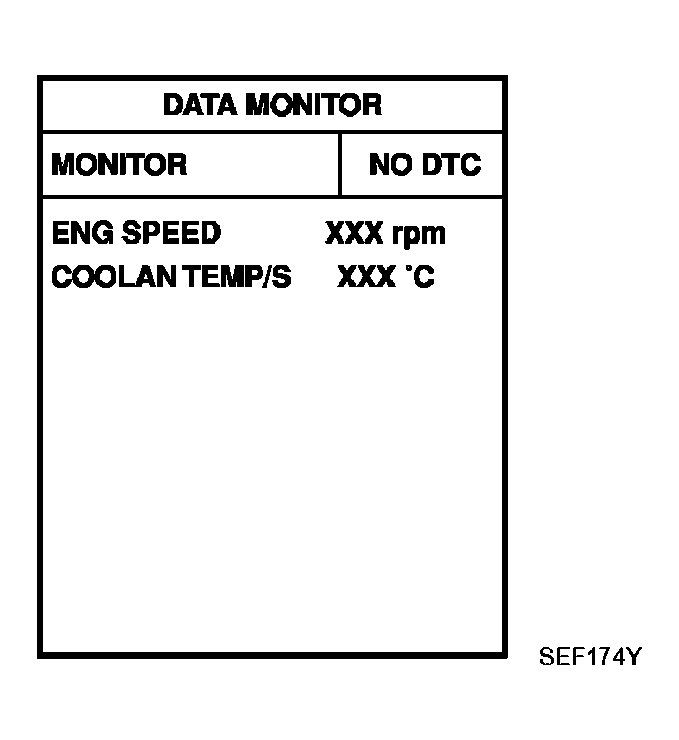

      Fig 6: Consult-II DATA MONITOR Display Screen
      G04080354Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK : GO TO  10.

    NG : GO TO 8.

  8. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    OK : GO TO 9.

    NG :

    1. Repair or replace.
    2. GO TO  4.
  9. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to , "DESCRIPTION ".

      : GO TO  4.

  10. CHECK IGNITION TIMING
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to , "IGNITION TIMING ".

      A/T: 15 +/- 5° BTDC (in P or N position)

      M/T: 15 +/- 5° BTDC (in neutral position)

    OK or NG

    OK : GO TO  19.

    NG : GO TO 11.

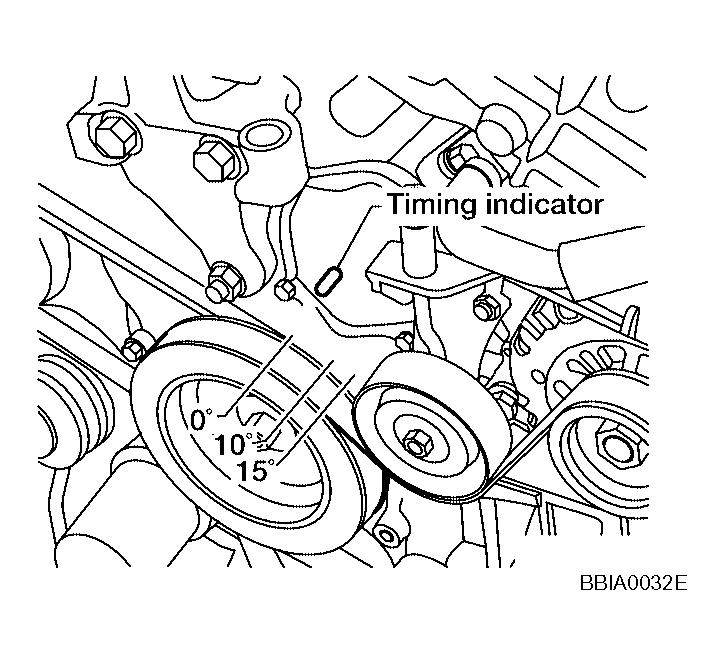

    Fig 7: Checking Ignition Timing
    G04166823Courtesy of NISSAN MOTOR CO., U.S.A.
  11. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform , "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".

      : GO TO 12.

  12. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform , "THROTTLE VALVE CLOSED POSITION LEARNING ".

    : GO TO 13.

  13. PERFORM IDLE AIR VOLUME LEARNING

    Refer to , "IDLE AIR VOLUME LEARNING ".

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    Yes : GO TO 14.

    No :

    1. Follow the instruction of Idle Air Volume Learning.
    2. GO TO  4.
  14. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

      Refer to , "IDLE SPEED ".

      A/T: 675 +/- 50 rpm (in P or N position)

      M/T: 625 +/- 50 rpm (in neutral position)

      3. Fig 8: Consult-II DATA MONITOR Display Screen
      G04080354Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed. Refer to , "IDLE SPEED ".

      A/T: 675 +/- 50 rpm (in P or N position)

      M/T: 625 +/- 50 rpm (in neutral position)

    OK or NG

    OK : GO TO 15.

    NG : GO TO  17.

  15. CHECK IGNITION TIMING AGAIN
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to , "IGNITION TIMING ".

      A/T: 15 +/- 5° BTDC (in P or N position)

      M/T: 15 +/- 5° BTDC (in neutral position)

    OK or NG

    OK : GO TO  19.

    NG : GO TO 16.

    Fig 9: Checking Ignition Timing
    G04166825Courtesy of NISSAN MOTOR CO., U.S.A.
  16. CHECK TIMING CHAIN INSTALLATION

    Check timing chain installation. Refer to , "TIMING CHAIN ".

    OK or NG

    OK : GO TO 17.

    NG :

    1. Repair the timing chain installation.
    2. GO TO  4.
  17. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    OK : GO TO 18.

    NG :

    1. Repair or replace.
    2. GO TO  4.
  18. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to , "DESCRIPTION ".

      : GO TO  4.

  19. INSPECTION END

    Did you replace ECM, referring this Basic Inspection procedure?

    Yes or No

    Yes :

    1. Perform , "VIN REGISTRATION ".
    2. INSPECTION END

    No : INSPECTION END
