Method A

  1. Slide the harness protector of ignition coil No. 1 (2) to clear the wires.
    • <==: Vehicle front
    • Intake manifold collector (1)
  2. Attach timing light to the ignition coil No. 1 wires as shown in the figure.

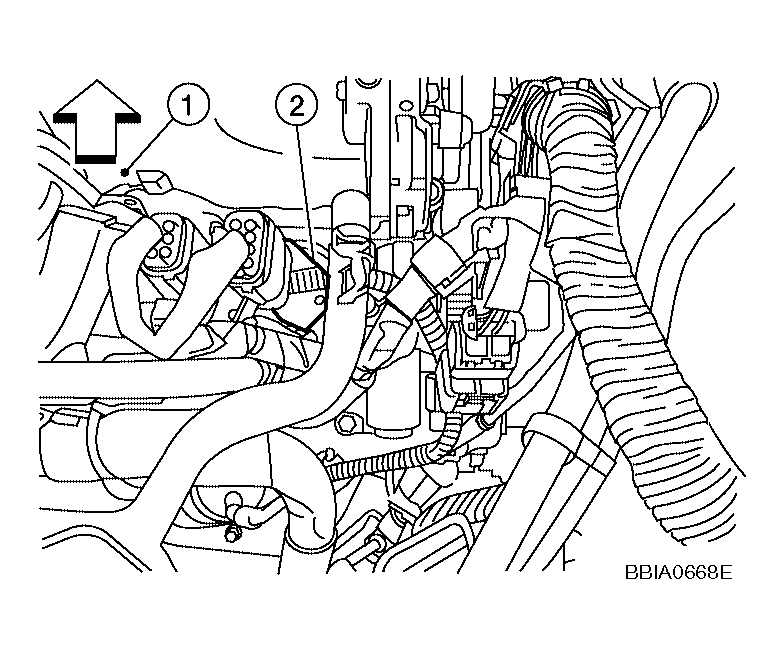

    Fig 1: Identifying Intake Manifold Collector & Ignition Coil No. 1
    G04166827Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

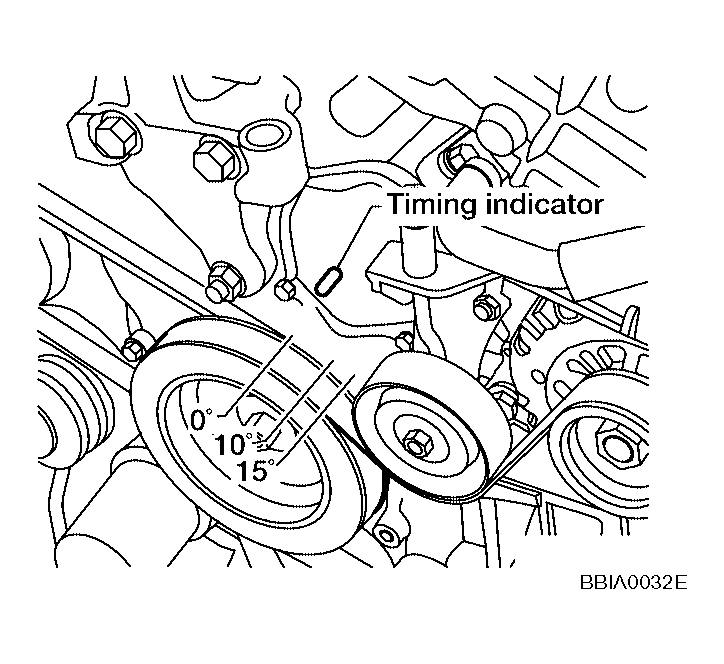

    Fig 2: Checking Ignition Timing
    G04166828Courtesy of NISSAN MOTOR CO., U.S.A.
