Overall Sequence

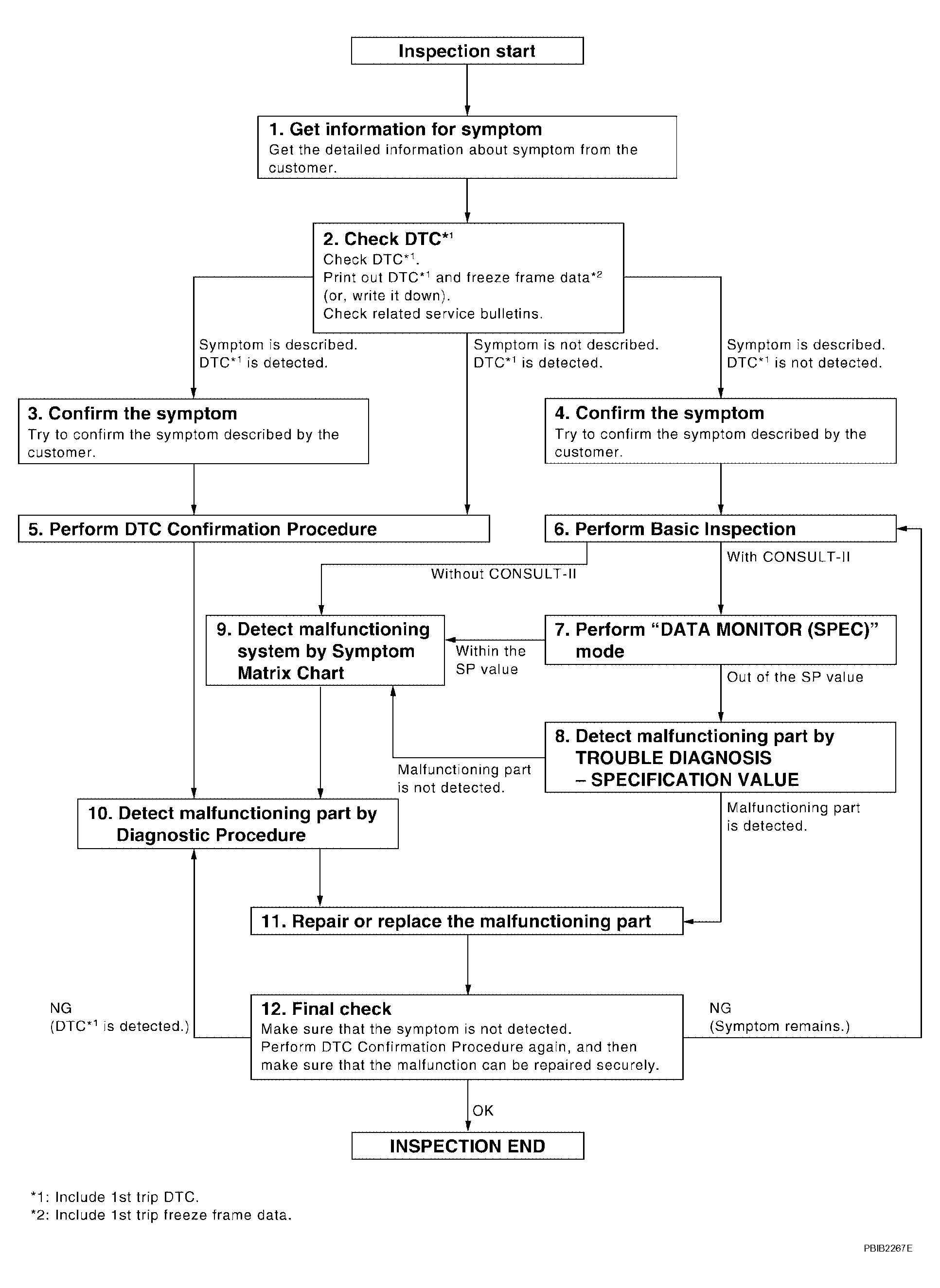

Fig 1: Work Flow Overall Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
