Wheel Alignment: 2007

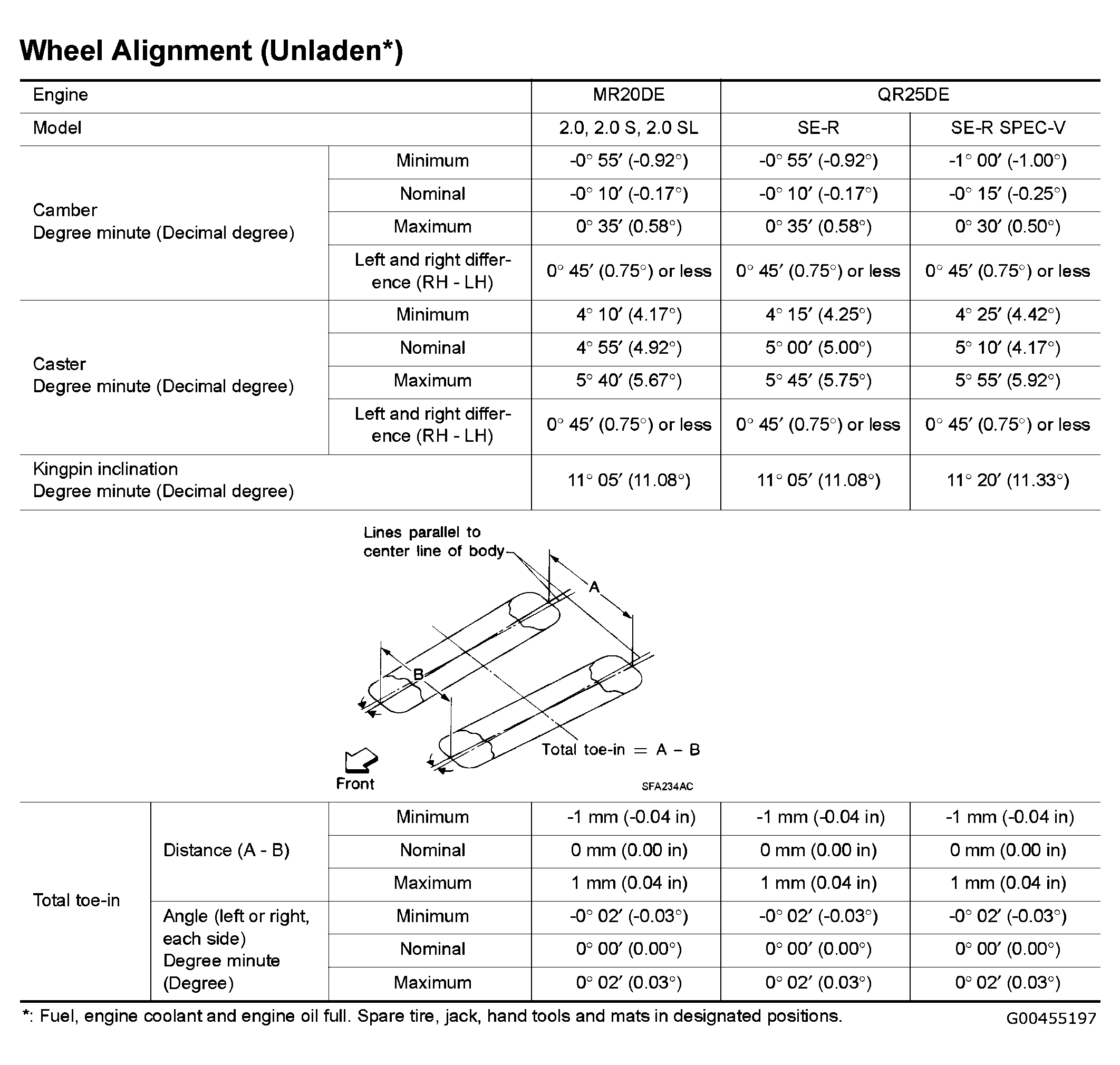

Fig 1: Wheel Alignment Specifications (Front)
Courtesy of NISSAN MOTOR CO., U.S.A.

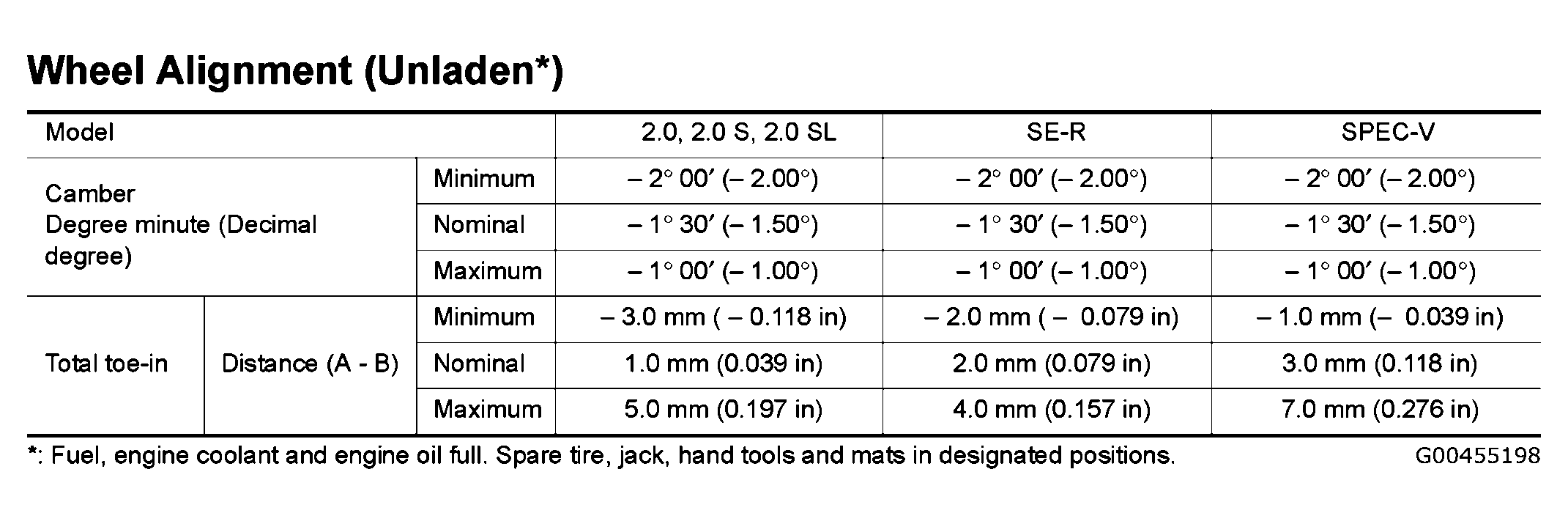

Fig 2: Wheel Alignment Specifications (Rear)
Courtesy of NISSAN MOTOR CO., U.S.A.

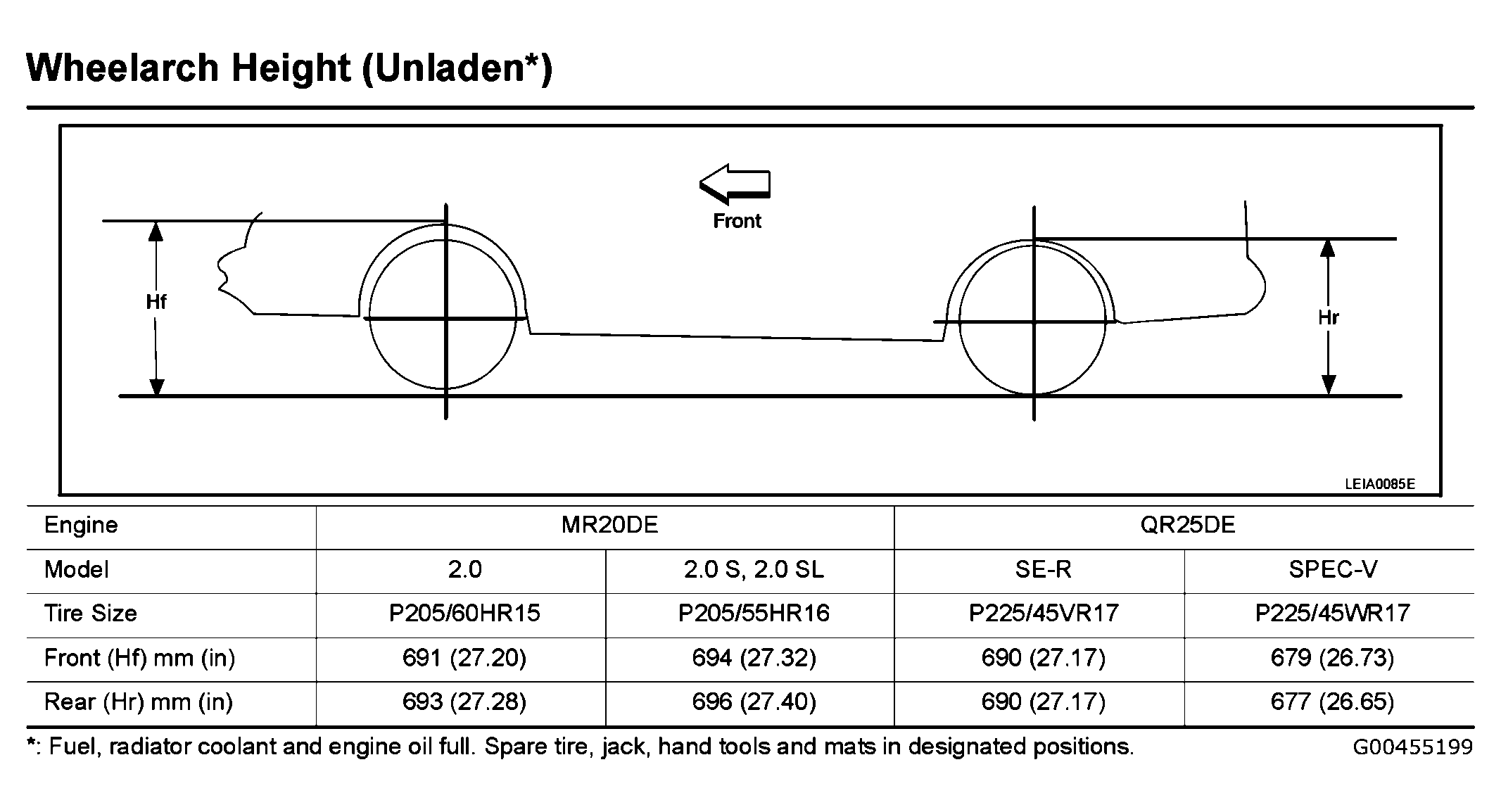

Fig 3: Wheel Arch Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
