Special Service Tools
The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.
SPECIAL SERVICE TOOLS
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

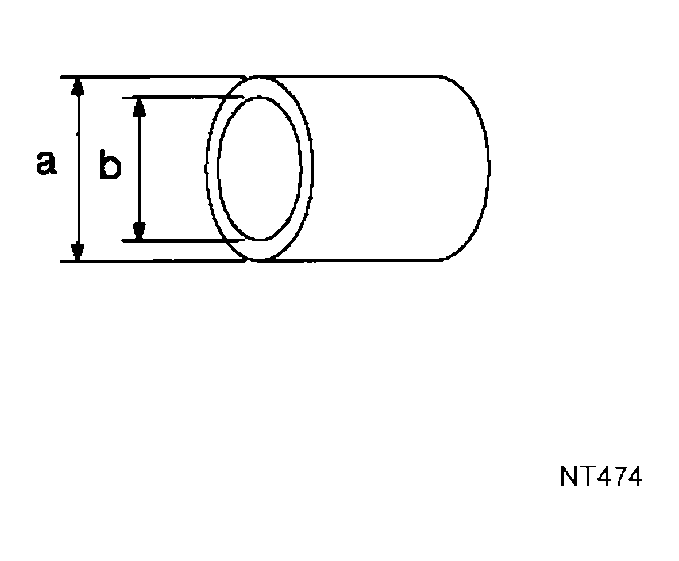

| KV40104710 (-) Drift |
Install sensor rotor a: 76.3 mm (3.004 in) dia . b: 67.9 mm (2.673 in) dia . |
|

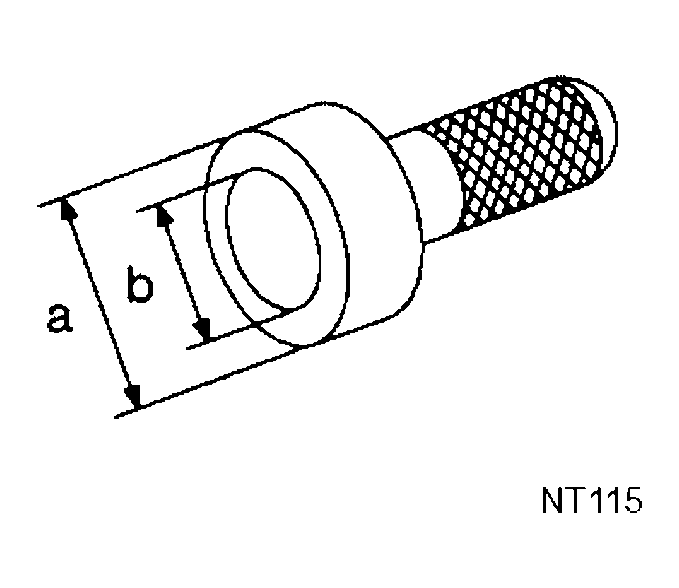

| ST30720000 (-) Drift |
Install sensor rotor a: 77 mm (3.03 in) dia . b: 55.5 mm (2.185 in) dia . |
