ASCD Clutch Switch (For M/T Models)

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.
Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

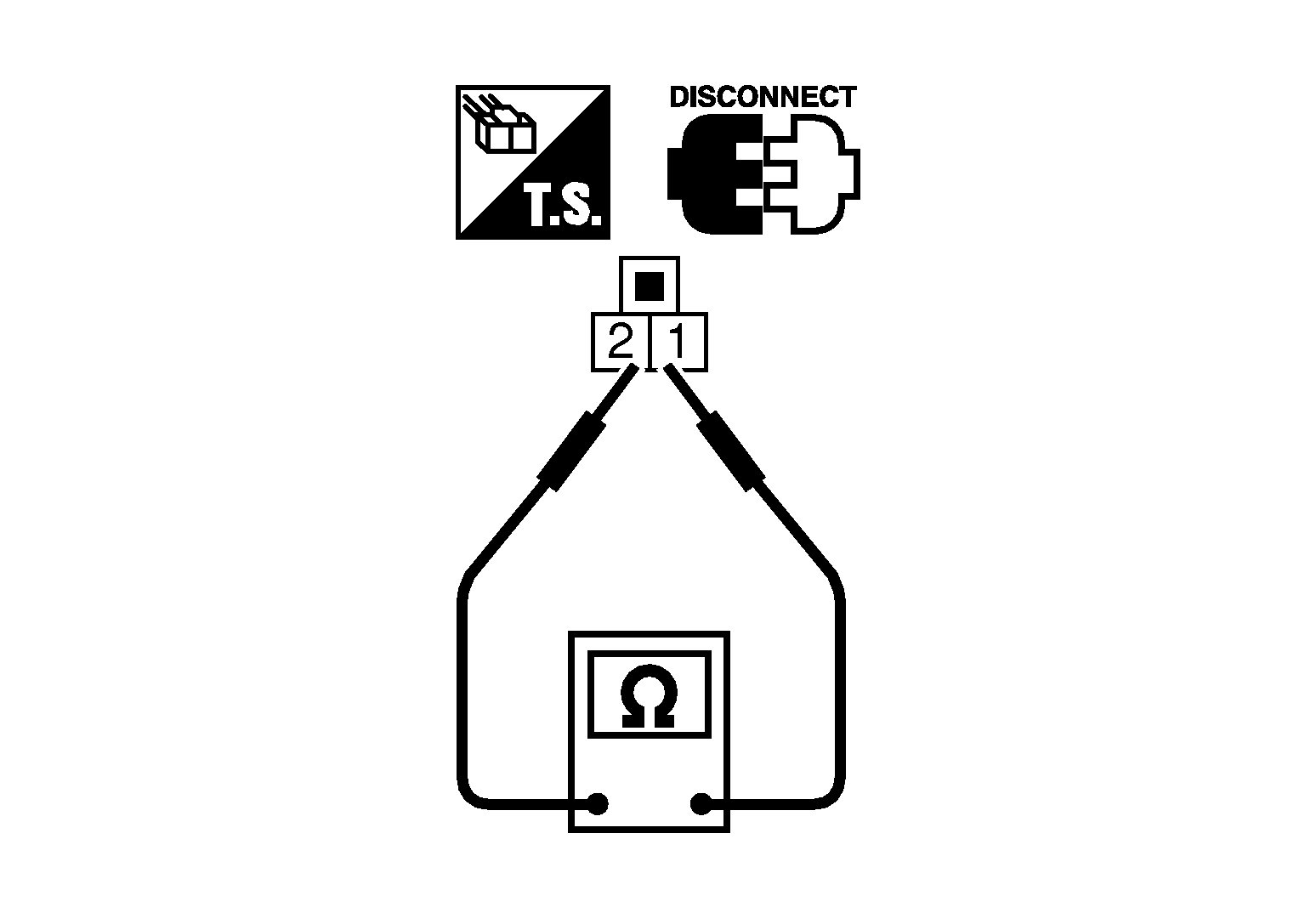

Fig 1: Checking Continuity Between Harness Connector terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

CONDITION CONTINUITY REFERENCE

Condition	Continuity
Clutch pedal: Fully released	Should exist
Clutch pedal: Slightly depressed	Should not exist

If NG, adjust ASCD clutch switch installation, refer to "CLUTCH SYSTEM ", and perform step 3 again.
