ASCD Brake Switch: Wiring Diagram

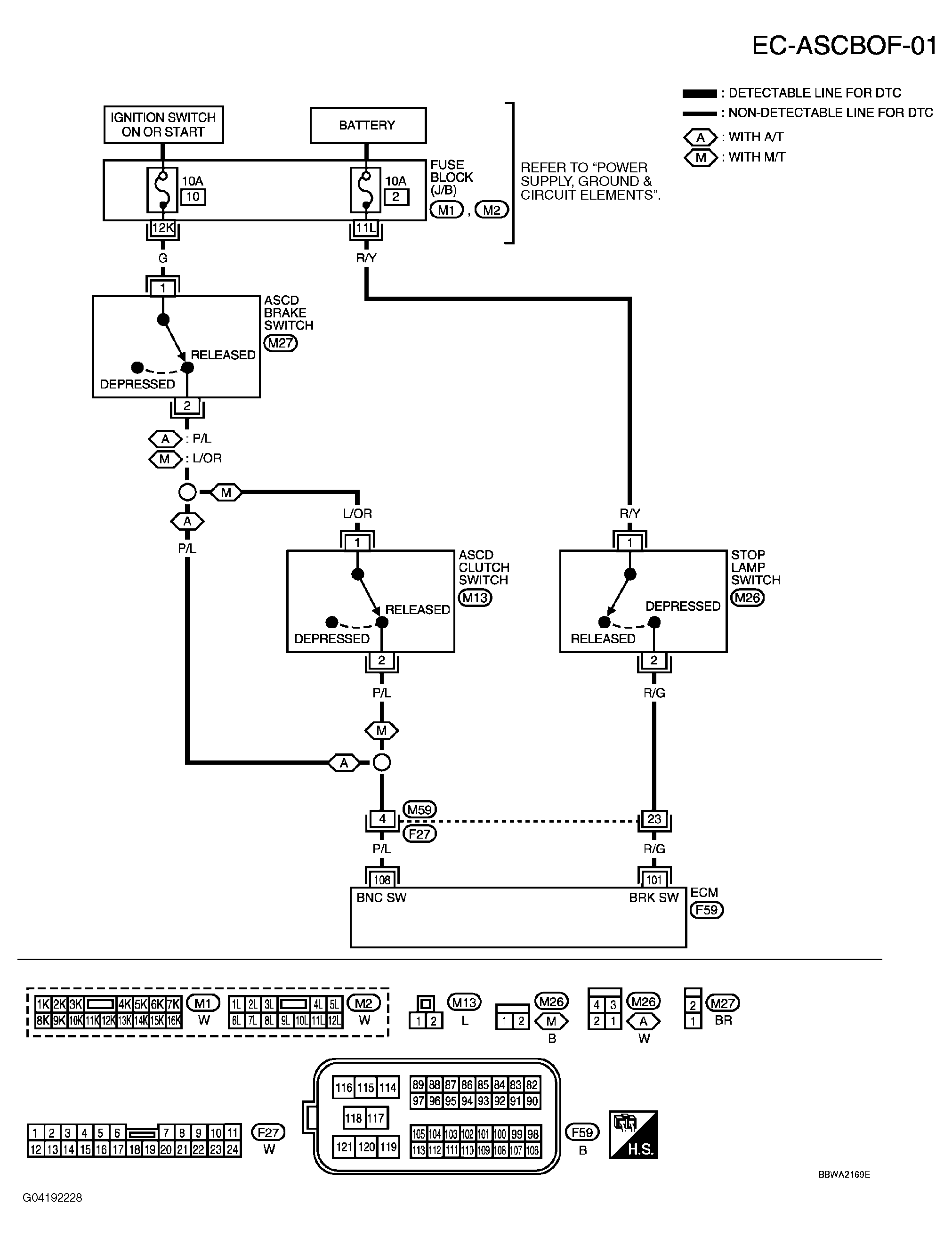

Fig 1: Identifying Wiring Diagram (EC-ASCBOF-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

WIRE COLOR AND TERMINAL NO. DESCRIPTION

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
101	R/G	Stop lamp switch	[Ignition switch: OFF] Brake pedal: Fully released	Approximately 0V
101	R/G	Stop lamp switch	[Ignition switch: OFF] Brake pedal: Slightly depressed	BATTERY VOLTAGE (11 - 14V)
108	P/L	ASCD brake switch	[Ignition switch: ON] Brake pedal: Slightly depressed (A/T) Brake pedal and/or clutch pedal: Sightly depressed (M/T)	Approximately 0V
108	P/L	ASCD brake switch	[Ignition switch: ON] Brake pedal: Fully released (A/T) Brake pedal and clutch pedal: Fully released (M/T)	BATTERY VOLTAGE (11 - 14V)
