Engine Control System - Component Testing (Qr25DE)
>>
ASCD Indicator
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ASCD Indicator: Wiring Diagram

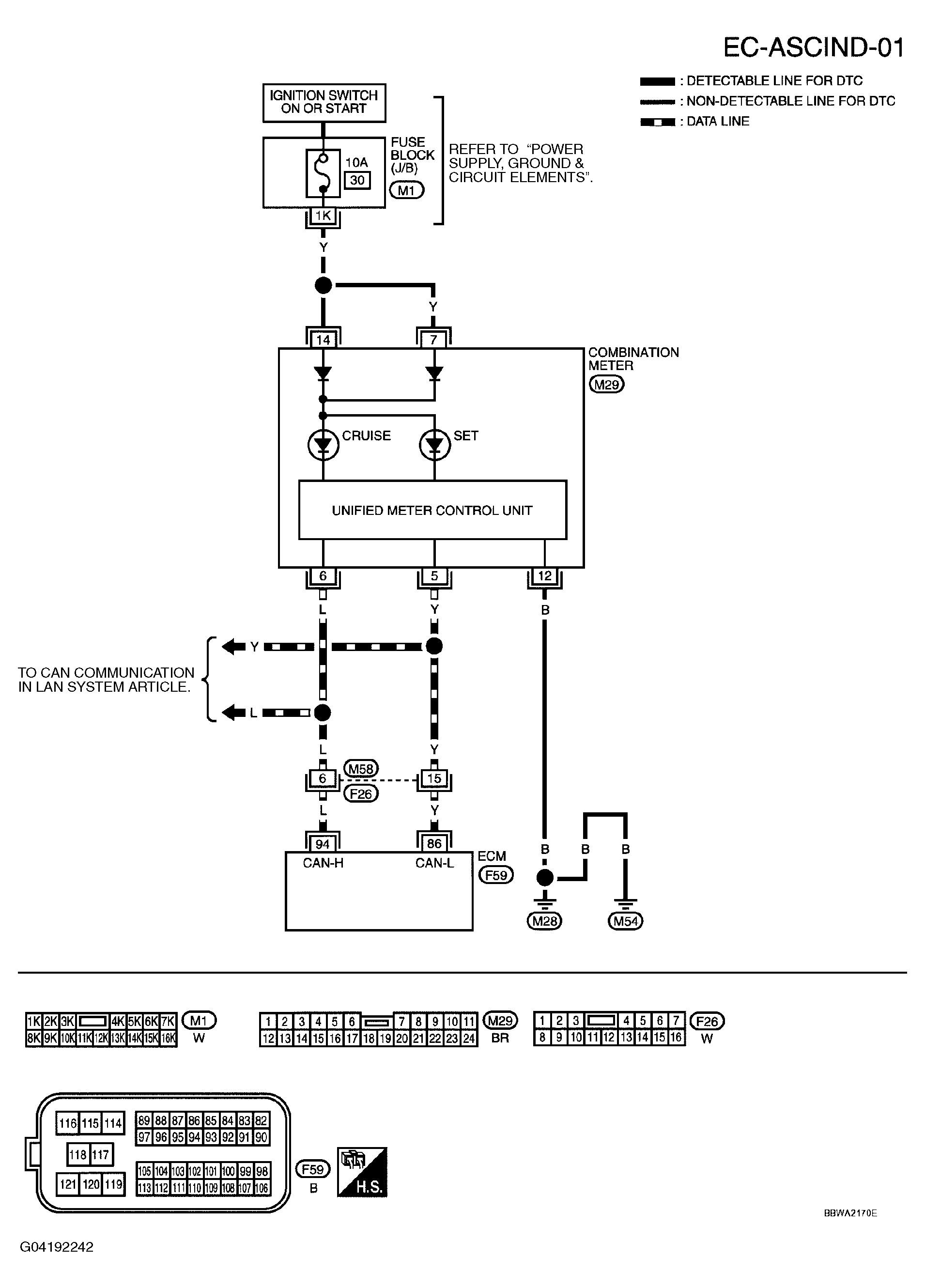

Fig 1: Identifying Wiring Diagram (EC-ASCIND-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
