Electrical Load Signal: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

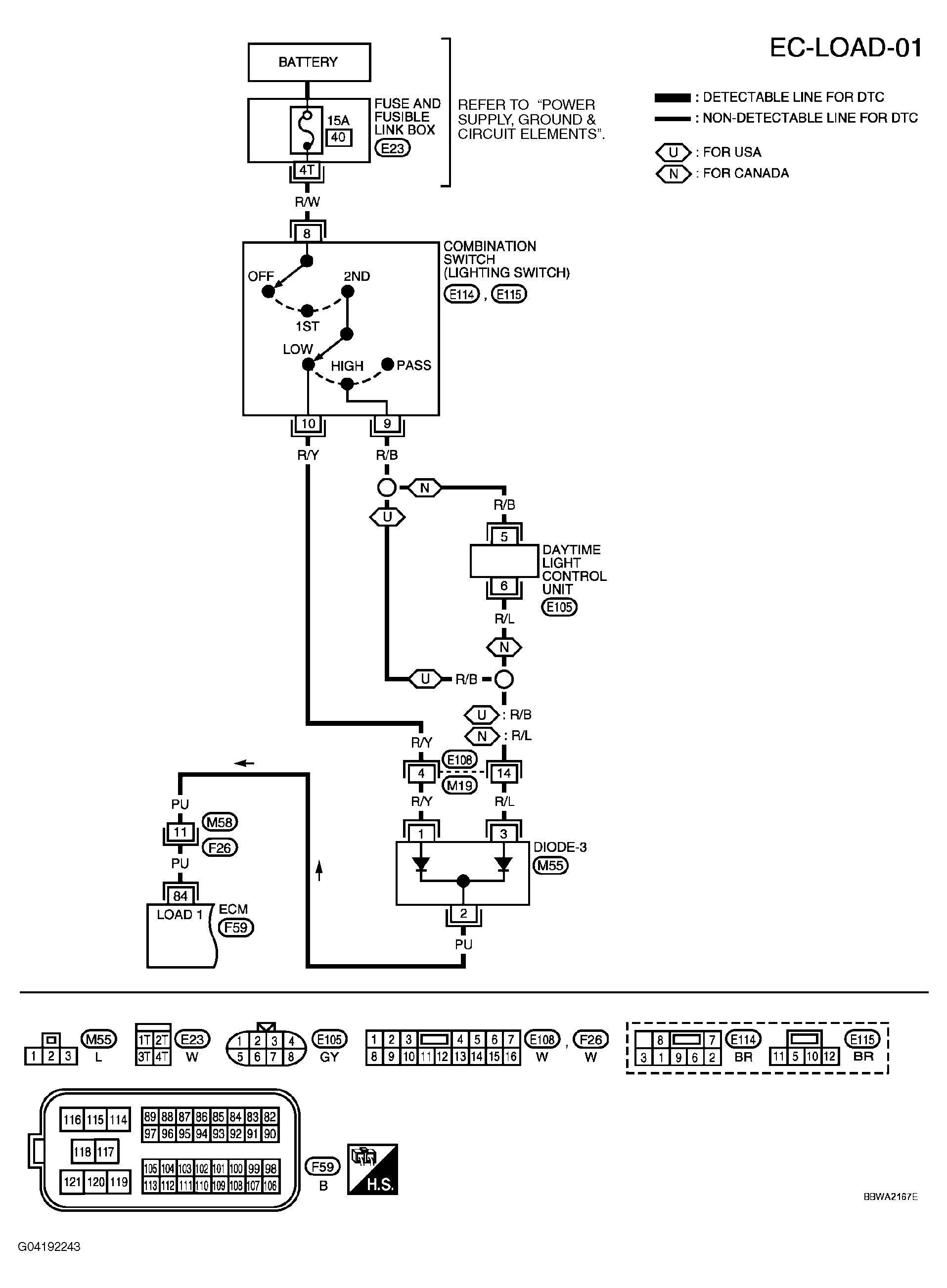

WIRE COLOR AND TERMINAL NO. DESCRIPTION
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 84 | PU | Electrical load signal (Headlamp signal) | [Lighting switch: ON]
|
BATTERY VOLTAGE (11 - 14V) |
[Lighting switch: ON]
|
Approximately 0V |
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

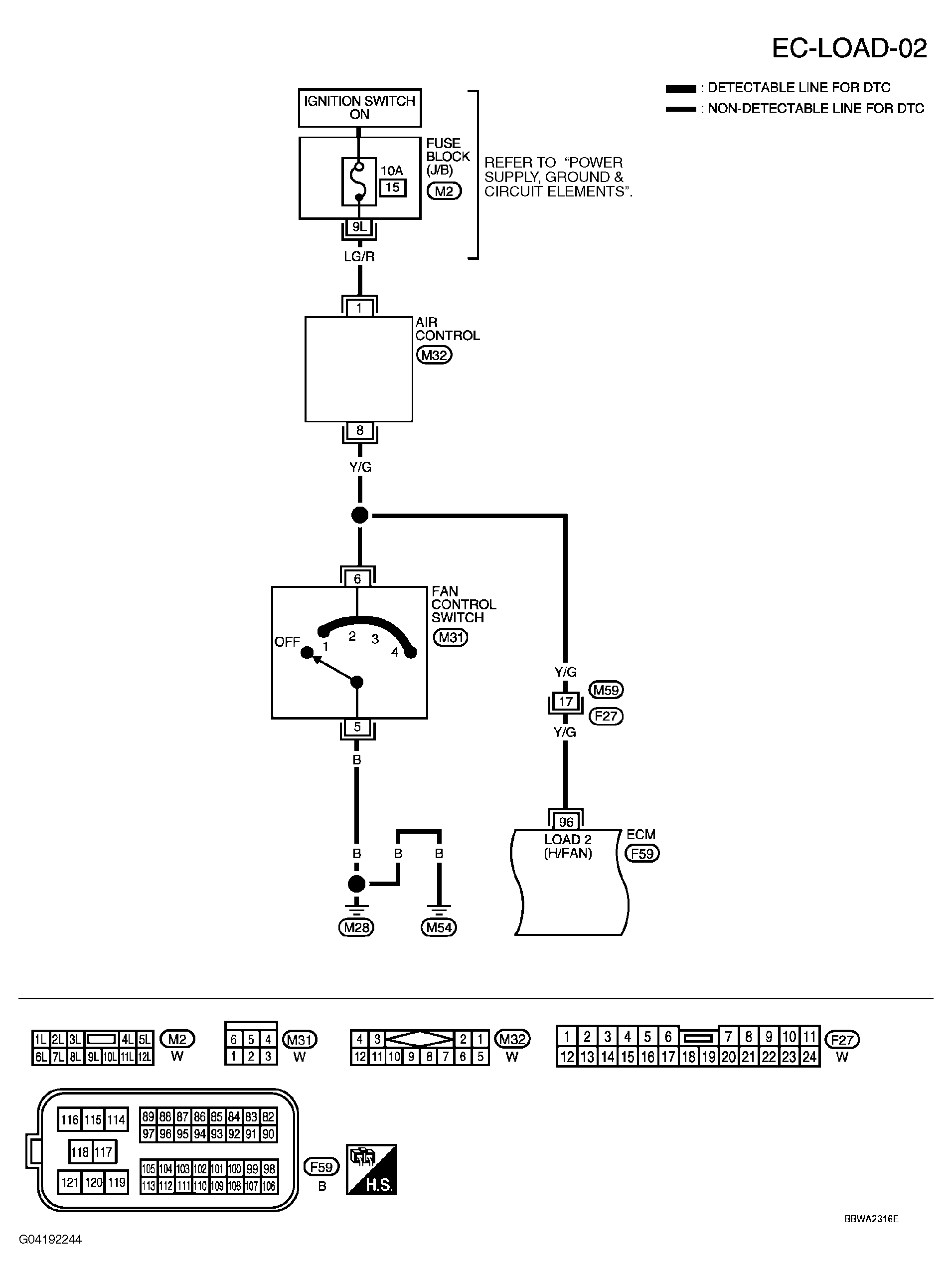

WIRE COLOR AND TERMINAL NO. DESCRIPTION
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 96 | Y/G | Electrical load signal (Heater fan switch) | [Engine is running]
|
Approximately 0V |
[Engine is running]
|
Approximately 5V |
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

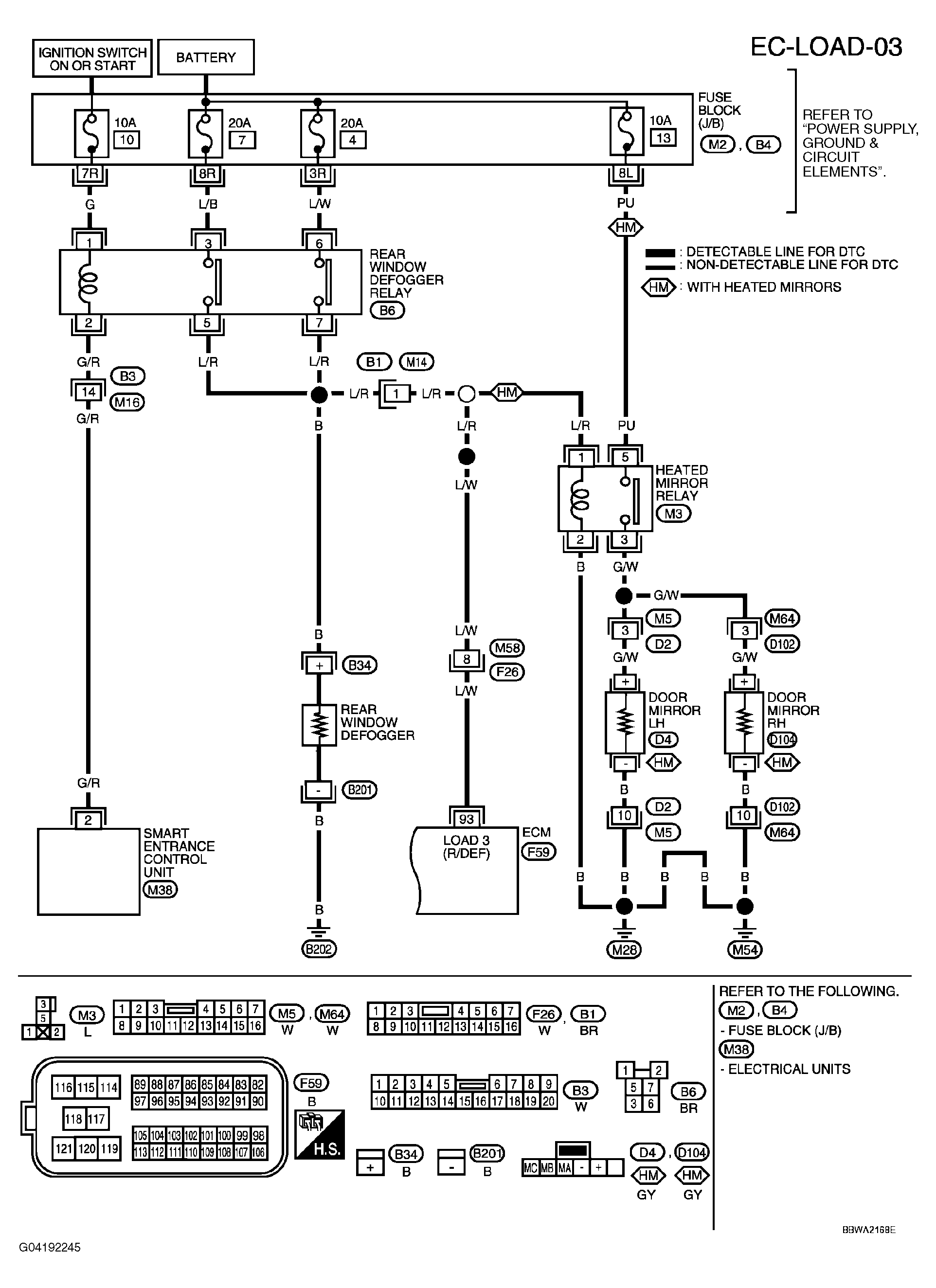

WIRE COLOR AND TERMINAL NO. DESCRIPTION
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 93 | L/W | Electrical load signal (Rear window defogger signal) | [Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) |
[Ignition switch: ON]
|
Approximately 0V |
