With CONSULT-II

  1. Reconnect harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.

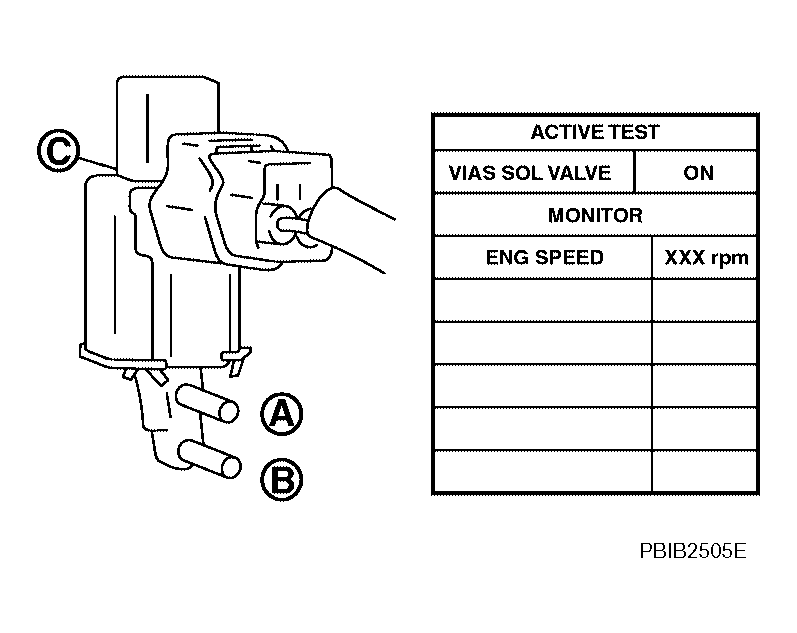

    4. Fig 1: CONSULT II Display - Active Test For Energizing VIAS Solenoid Valve
    G04148504Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Check air passage continuity and operation delay time under the following conditions.
VIAS SOL VALVE CONDITION & CONTINUITY SPECIFICATION

Condition
VIAS SOL VALVE		 Air passage continuity between A  and B  Air passage continuity between A  and C
ON Yes No
OFF No Yes

Operation takes less than 1 second.
