With CONSULT-II

  1. Turn ignition switch ON.
  2. Perform "FUEL PRESSURE RELEASE" in "WORK SUPPORT" mode with CONSULT-II.
  3. Start engine.
  4. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
  5. Turn ignition switch OFF.

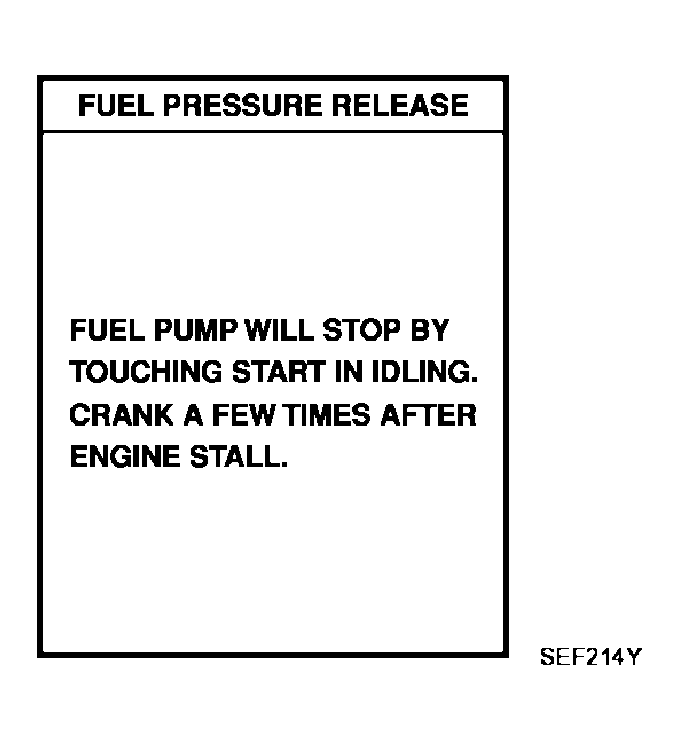

    Fig 1: CONSULT-II Screen Display - FUEL PRESSURE RELEASE
    G04191601Courtesy of NISSAN MOTOR CO., U.S.A.
