Method A

  1. Slide the harness protector off the ignition coil No. 1 to clear the wires.
  2. Attach timing light to the ignition coil No. 1 wires as shown in the figure.
  3. Check ignition timing.

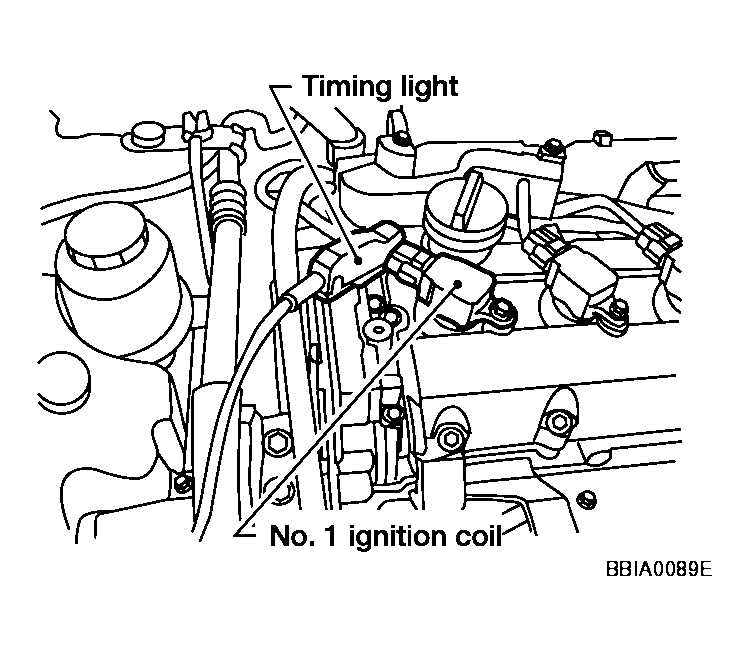

    Fig 1: Attaching Timing Light To Ignition Coil No. 1 Wires
    G04191591Courtesy of NISSAN MOTOR CO., U.S.A.
