Method B

  1. Remove No. 1 ignition coil.

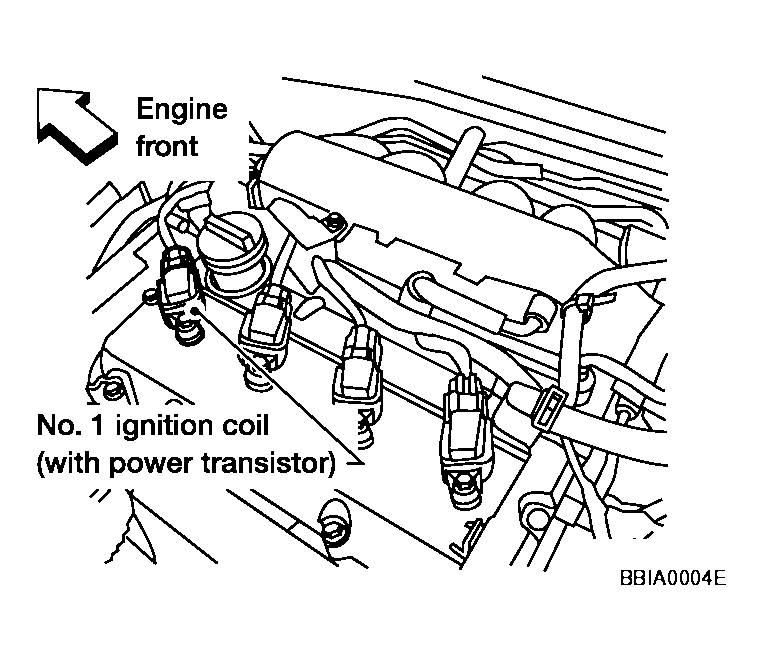

    Fig 1: Removing Ignition Coil No. 1
    G04191592Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

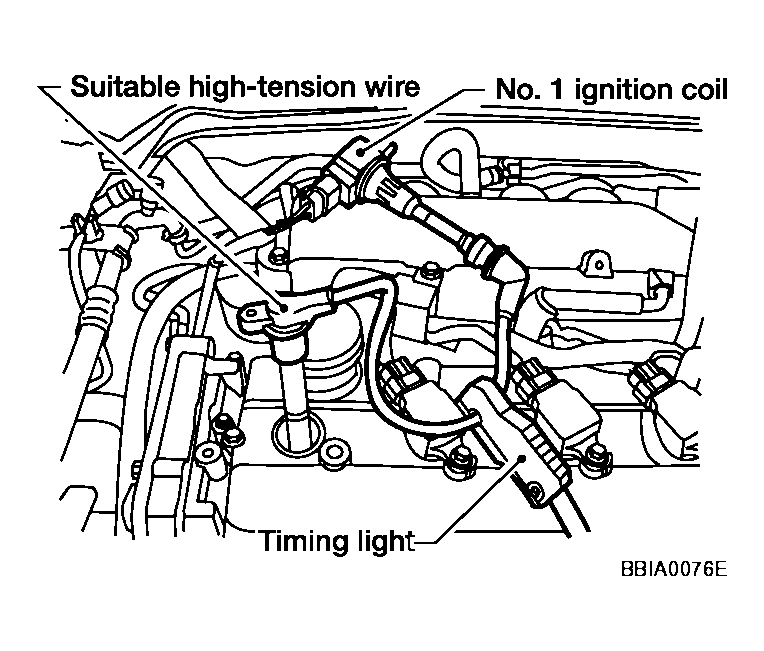

    Fig 2: Connecting Ignition Coil And Spark Plug With Suitable High-Tension Wire
    G04191593Courtesy of NISSAN MOTOR CO., U.S.A.

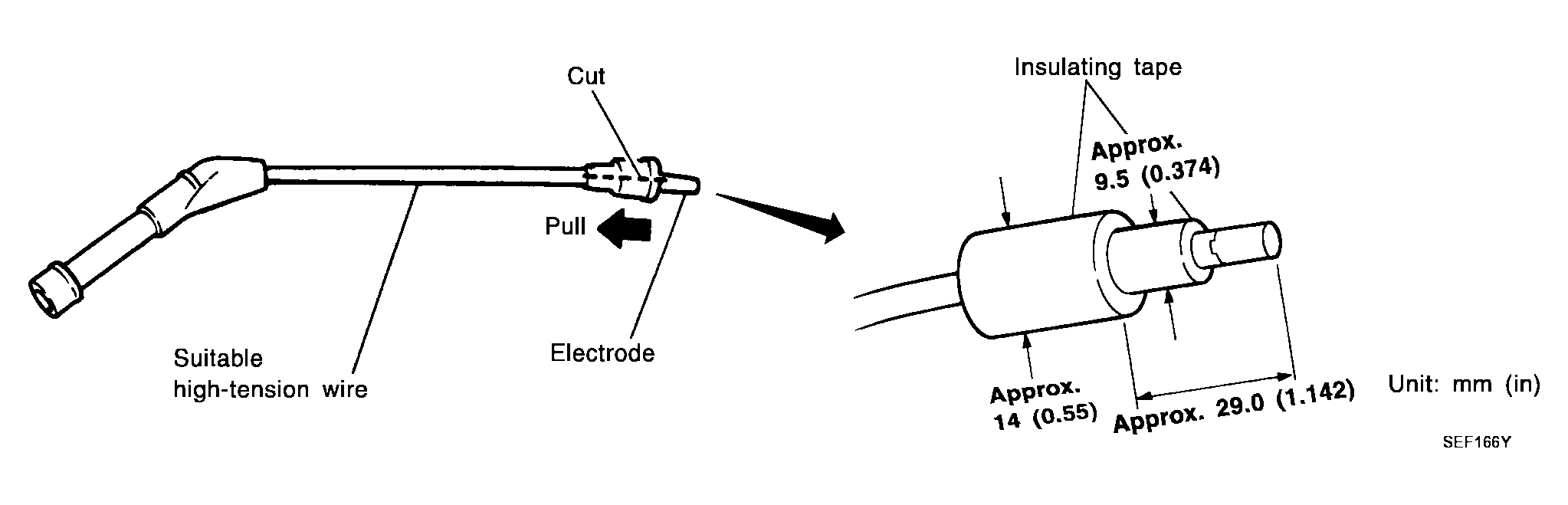

    Fig 3: Identifying High-Tension Wire On Ignition Coil & Spark Plug
    G04191594Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

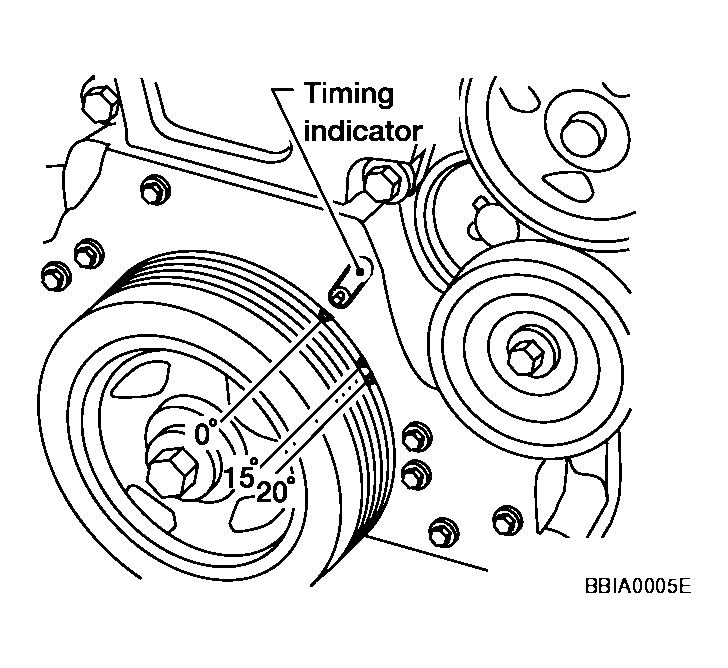

    Fig 4: Checking Ignition Timing
    G04191595Courtesy of NISSAN MOTOR CO., U.S.A.
