With CONSULT-II

  1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

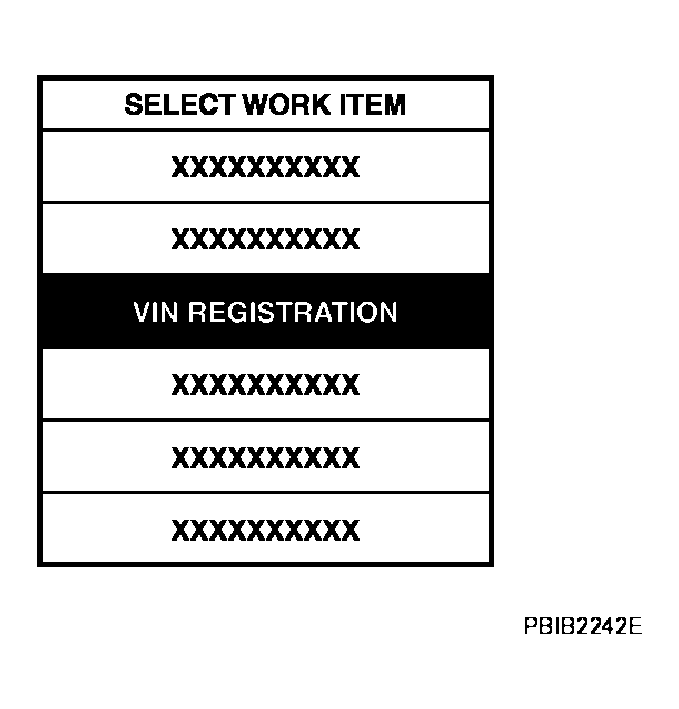

    Fig 1: CONSULT-II Display - VIN REGISTRATION
    G04191596Courtesy of NISSAN MOTOR CO., U.S.A.
