Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Check the accelerator pedal for smooth operation. There should be no binding or sticking when applying or releasing the accelerator pedal.
Check that the accelerator pedal moves through the full specified distance of the specified pedal travel "A".
1. Pedal Travel "A": 52.6 - 58.2 mm (2.07 - 2.29 in)

CAUTION: When the accelerator pedal position sensor harness connector is disconnected, perform the ACCELERATOR PEDAL RELEASED POSITION LEARNING .

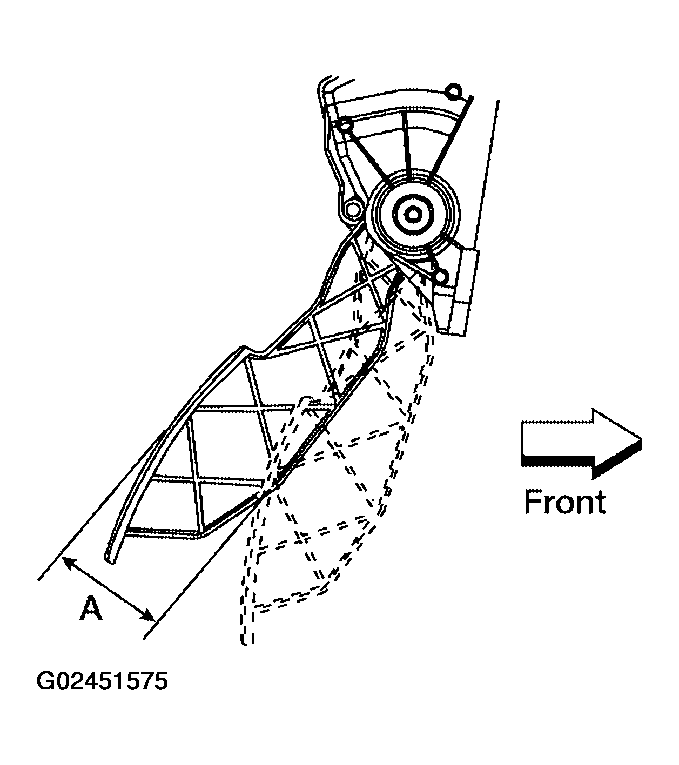

Fig 1: Checking Accelerator Pedal Smooth Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
