Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

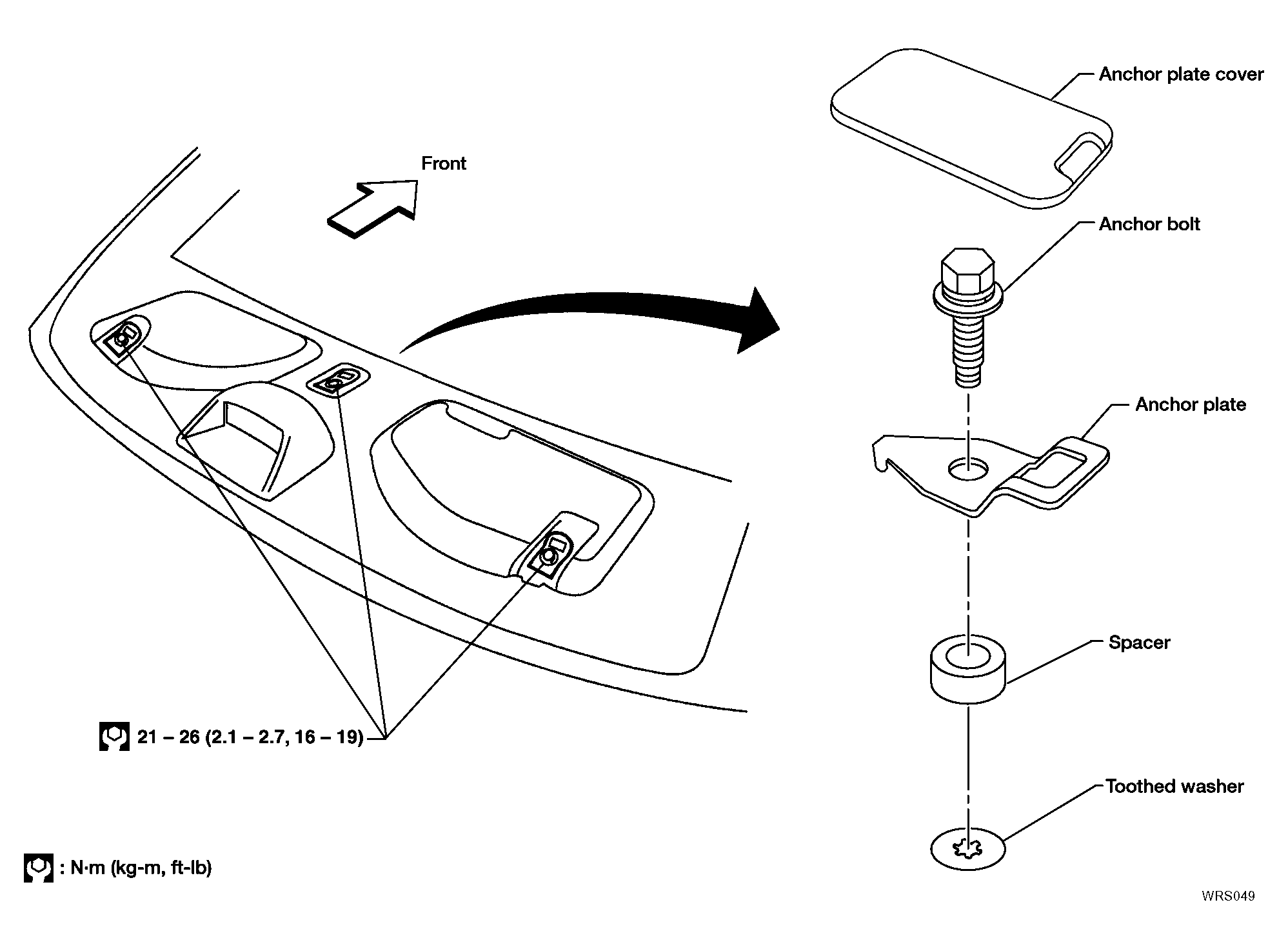

Fig 1: Removing Anchor With Torque Specifications
G04194805Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove anchor plate cover. Refer to "SIDE AND FLOOR TRIM ".
  2. Remove anchor plate.
    NOTE:
    • To install, reverse the removal procedure sequence.
