Checking Fluid Level

Check fluid level, referring to the scale on reservoir tank.

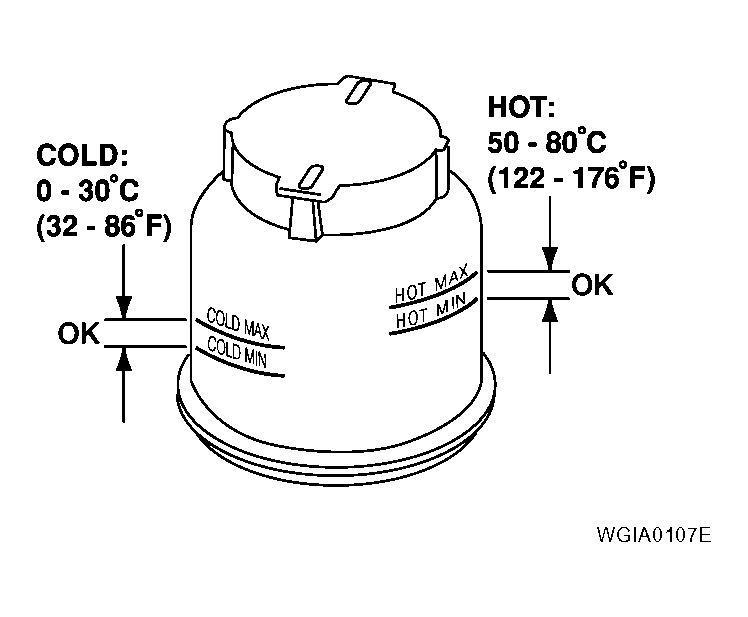

Fig 1: Checking Fluid Level

Courtesy of NISSAN MOTOR CO., U.S.A.

• Use "HOT" range for fluid temperatures of 50 - 80°C (122 -176°F).
• Use "COLD" range for fluid temperatures of 0 - 30°C (32 - 86°F).
