Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description

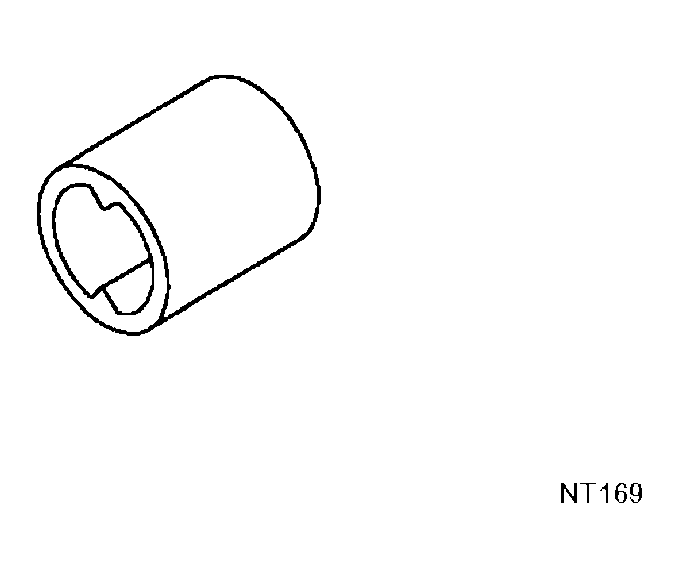

KV48101100 (J26364) Torque adapter		Measuring pinion rotating torque

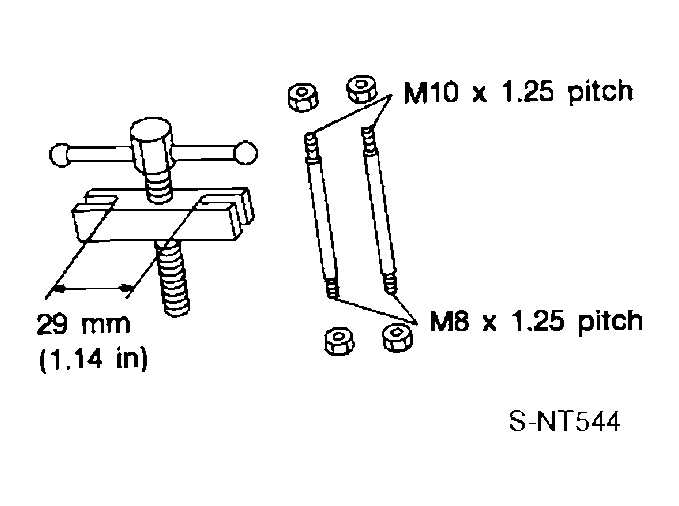

ST27180001 (J25726-B) Steering wheel puller		Removing steering wheel

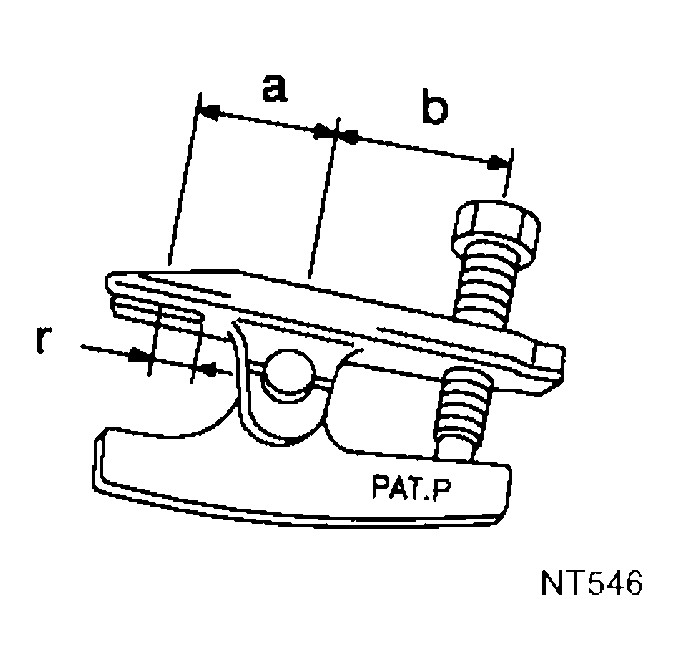

HT72520000 (J25730-B) Ball joint remover		Removing tie-rod and lower ball joint a: 33 mm (1.30 in)  b: 50 mm (1.97 in)  r: R11.5 mm (0.453 in)

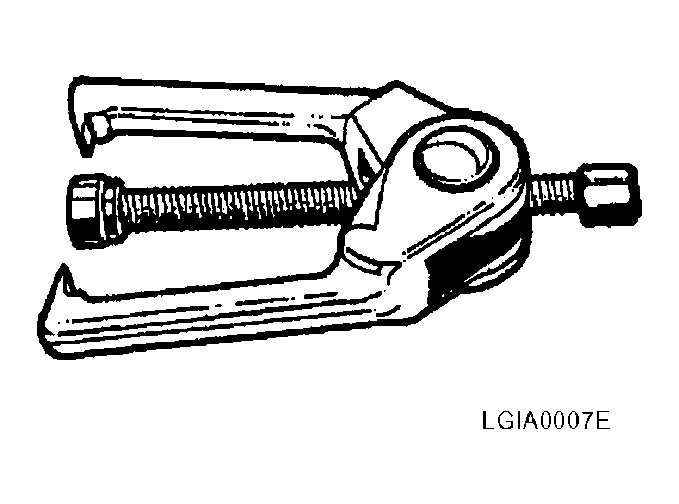

(J-24319-B) Tie rod puller		Remove outer tie rod

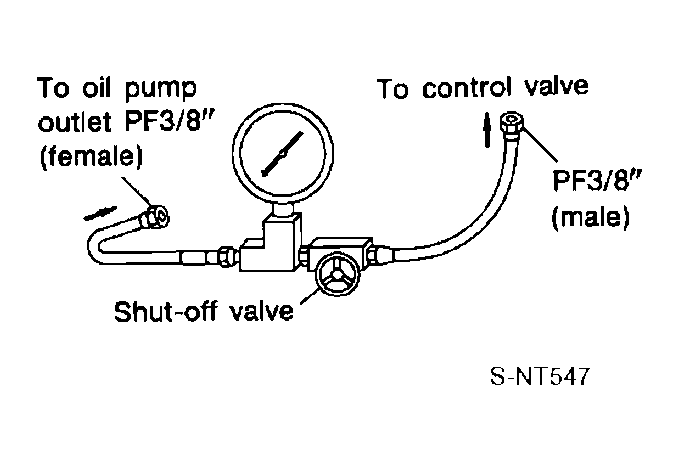

KV48103500 (J26357 and J26357-10) Pressure gauge		Measuring oil pressure

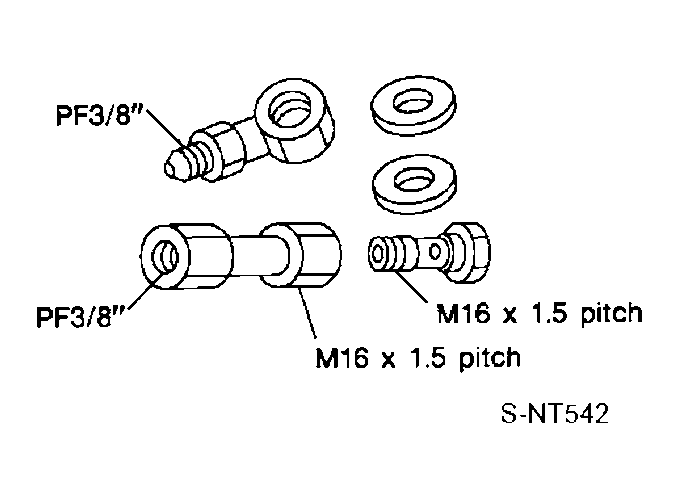

KV48102500 (J33914) Pressure gauge adapter		Measuring oil pressure

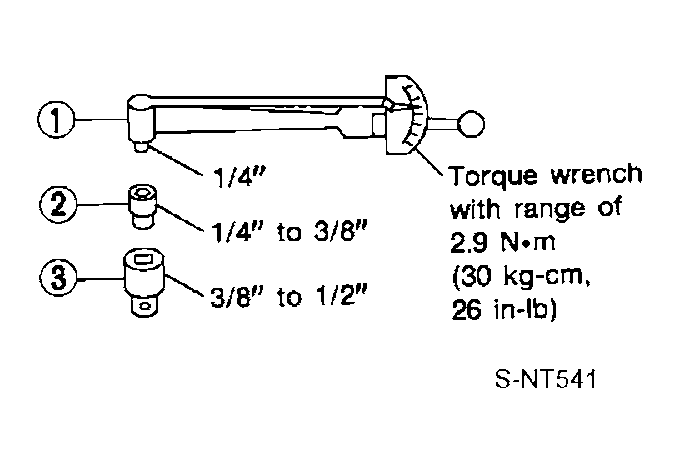

ST3127S000 1 GG91030000 (See J25765-A) Torque wrench 2 HT62940000 (-) Socket adapter 3 HT62900000 (-) Socket adapter		Measuring turning torque

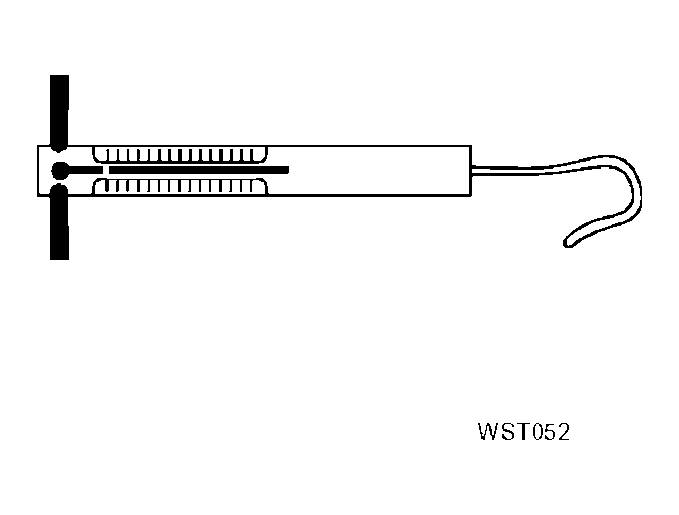

(J44372) 5-60 Pound pull gauge		Measuring steering wheel turning force

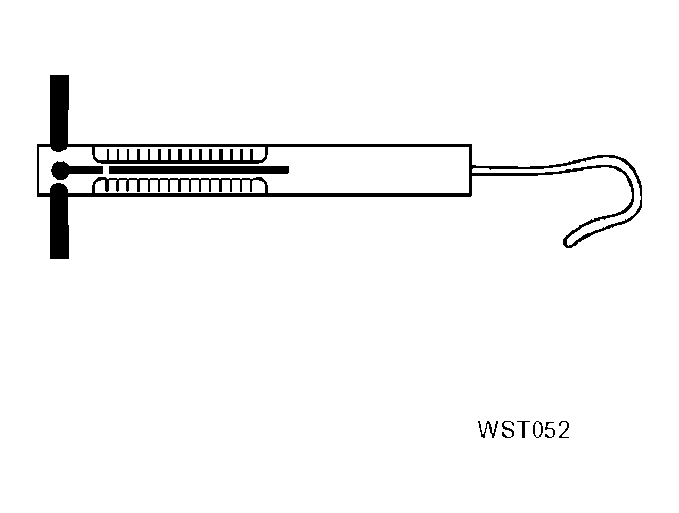

(J44183-A) 20-100 Pound pull gauge		Measuring rack sliding force

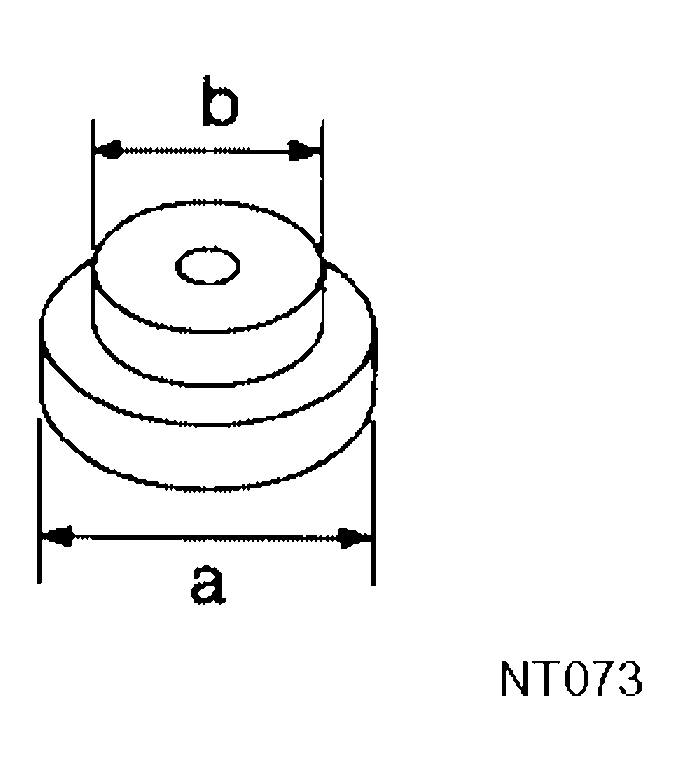

ST35300000 (-) Drift		Installing power steering pump oil seal a: 49 mm (1.93 in) dia  . b: 41 mm (1.61 in) dia  .

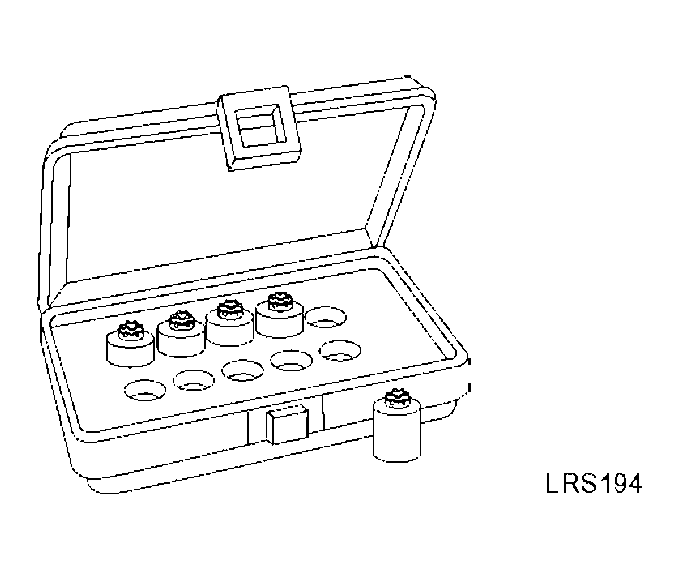

(J-44615) Air Bag Master Key Set		Removing and installing accessory air bag bolts.
