Removal and Installation MR20DE: Notes

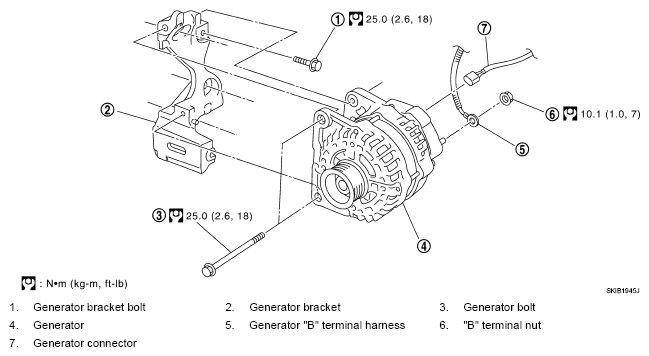

Fig 1: Charging System Replacement Components (MR20DE) With Torque Specifications

G04928286
