Removal and Installation: Installation
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- Check the accelerator pedal for smooth operation. There should be no binding or sticking when applying or releasing the accelerator pedal.

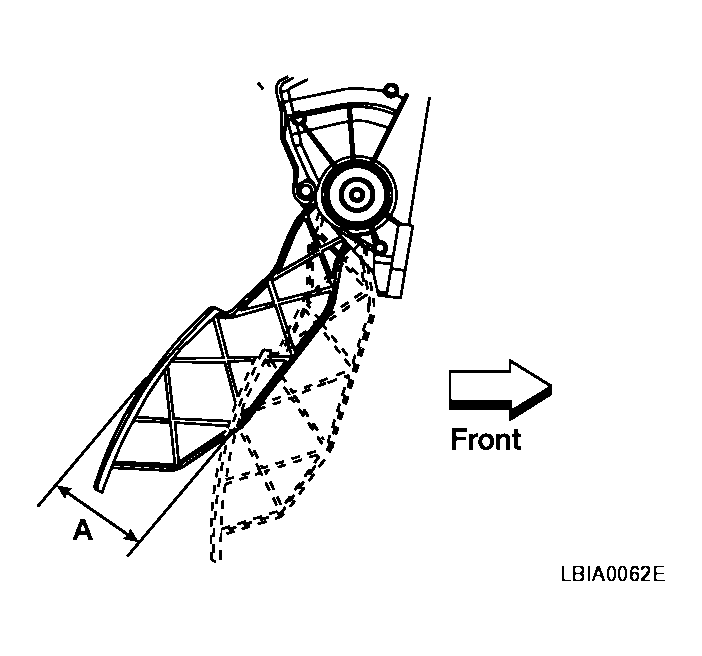

- Check that the accelerator pedal moves through the full specified distance of the specified pedal travel "A".
Pedal Travel "A": 52.6 - 58.2 mm (2.07 - 2.29 in)
CAUTION:
When the accelerator pedal position sensor harness connector is disconnected, perform the "Accelerator Pedal Released Position Learning". Refer to "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
