Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the accelerator pedal position sensor electrical connector.
1. Pull the connector lock back to unlock the connector from the accelerator pedal position sensor.
2. Pull up on the connector to disconnect it from the accelerator pedal position sensor.

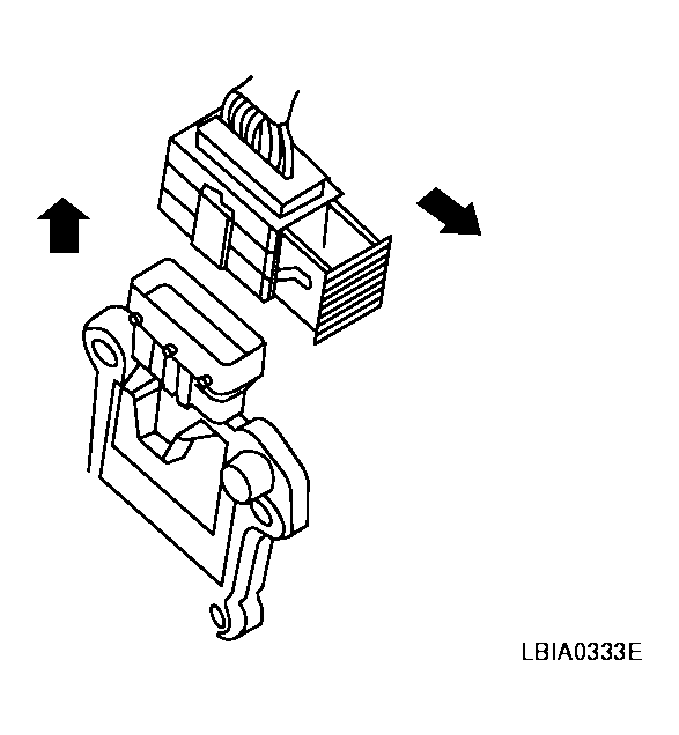

  Fig 1: Disconnecting Electrical Connector
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the two upper and one lower accelerator pedal assembly nuts.

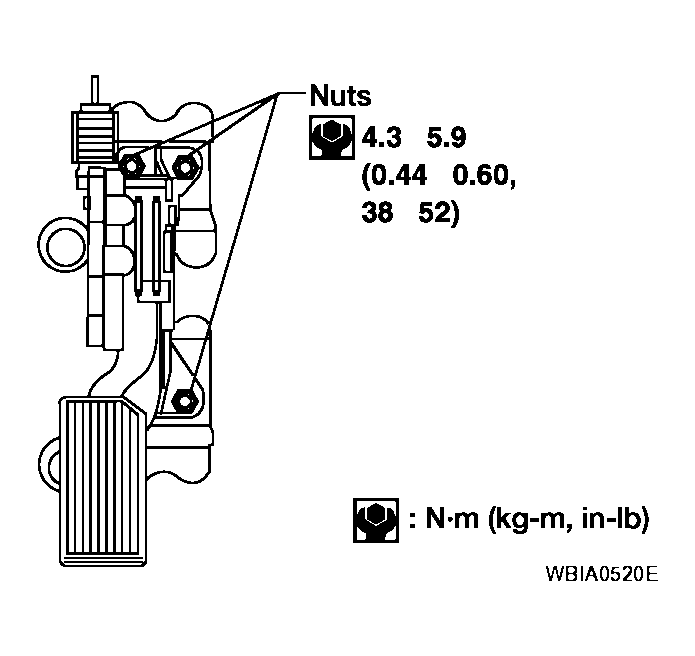

Fig 2: Removing Accelerator Pedal Assembly Nuts With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the accelerator pedal assembly.
- For electrical inspection of the accelerator pedal position sensor. Refer to "DTC P2122, P2123 APP SENSOR " and "DTC P2127, P2128 APP SENSOR " (QG18DE) or "DTC P2122, P2123 APP SENSOR " and "DTC P2127, P2128 APP SENSOR " (QR25DE).
CAUTION:
- Do not disassemble the accelerator pedal assembly. Do not remove the accelerator pedal position sensor from the accelerator pedal assembly.
- Avoid impact from dropping the accelerator pedal assembly during handling.
- Keep the accelerator pedal assembly away from water.
