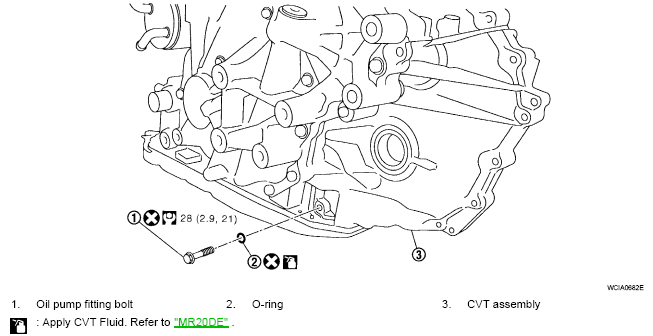

Oil Pump Fitting Bolt: Components
For MR20DE, go to ENGINE MAINTENANCE (MR20DE) .
CAUTION:
- Do not reuse O-ring.
- Apply CVT fluid to O-ring.
- After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to "CHECKING CVT FLUID ".
