ASCD Indicator: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

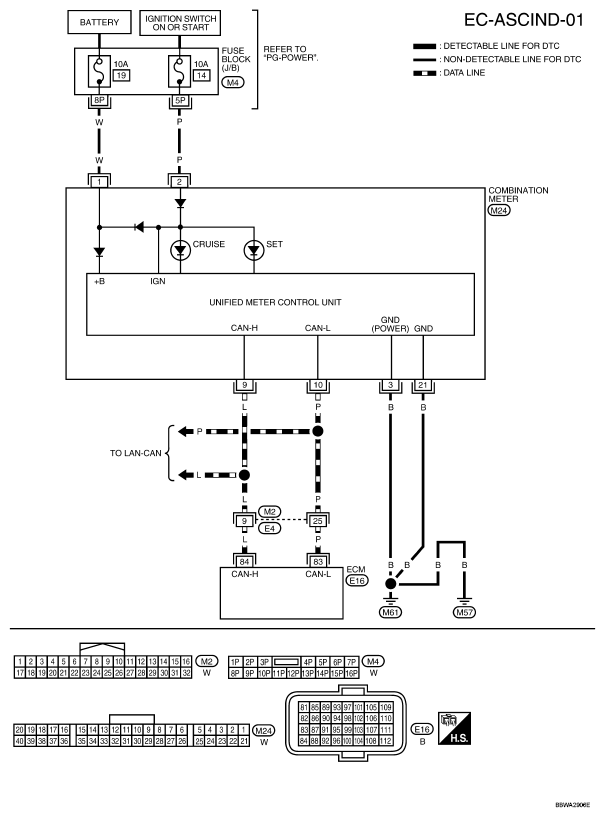

Fig 1: Wiring Diagram - EC-ASCIND-01
G04925620Courtesy of NISSAN MOTOR CO., U.S.A.
