Diagnostic Procedure

  1. CHECK OVERALL FUNCTION-I

    With CONSULT-III

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-III.
    3. Check "BRAKE SW1" indication under the following conditions.

      M/T models

      BRAKE SW1 CONDITION REFERENCE

      CONDITION INDICATION
      Clutch pedal and/or brake pedal: Slightly depressed OFF
      Clutch pedal and brake pedal: Fully released ON

      CVT models

      BRAKE SW1 CONDITION REFERENCE

      CONDITION INDICATION
      Brake pedal: Slightly depressed OFF
      Brake pedal: Fully released ON

    Without CONSULT-III

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 110 and ground under the following conditions.

      M/T models

      TERMINALS VOLTAGE CHART

      CONDITION VOLTAGE
      Clutch pedal and/or brake pedal: Slightly depressed Approximately 0V
      Clutch pedal and brake pedal: Fully released Battery voltage

      CVT models

      TERMINALS VOLTAGE CHART

      CONDITION VOLTAGE
      Brake pedal: Slightly depressed Approximately 0V
      Brake pedal: Fully released Battery voltage
      Fig 1: Checking Voltage Between ECM Terminal 110 And Ground
      G04926159Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 2.

    NG: GO TO  3.

  2. CHECK OVERALL FUNCTION-II

    With CONSULT-III

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    BRAKE SW2 CONDITION REFERENCE

    CONDITION INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

    Without CONSULT-III

    Check voltage between ECM terminal 106 and ground under the following conditions.

    TERMINALS VOLTAGE CHART

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage
    Fig 2: Checking Voltage Between ECM Terminal 106 And Ground
    G04926160Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: INSPECTION END

    NG: GO TO  11.

  3. CHECK ASCD BRAKE SWITCH POWER SUPPLY
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch (1) harness connector.
      • Stop lamp switch (2)
      • Brake pedal (3)
    3. Turn ignition switch ON.
      Fig 3: Identifying ASCD Brake Switch Harness Connector
      G04925533Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.

      Voltage : Battery voltage

      Fig 4: Checking Voltage Between ASCD Switch Terminal 1 And Ground
      G04875403Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO  8.

    NG (M/T models): GO TO 4.

    NG (CVT models): GO TO  6.

  4. CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD clutch switch (1) harness connector.
      • Clutch pedal (2)
    3. Turn ignition switch ON.
      Fig 5: Identifying ASCD Clutch Switch Harness Connector
      G04925539Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD clutch switch terminal 1 and ground with CONSULT-III or tester.

      Voltage: Battery voltage

      Fig 6: Checking Voltage Between ASCD Switch Terminal 1 And Ground
      G04875403Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO  7.

    NG: GO TO 5.

  5. DETECT MALFUNCTIONING PART

    Check the following.

    • 10A fuse
    • Harness for open or short between ASCD clutch switch and fuse

      : Repair open circuit or short to ground or short to power in harness or connectors.

  6. DETECT MALFUNCTIONING PART

    Check the following.

    • 10A fuse
    • Harness for open or short between ASCD brake switch and fuse

      : Repair open circuit or short to ground or short to power in harness or connectors.

  7. CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ASCD brake switch terminal 1 and ASCD clutch switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  10.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  8. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 110 and ASCD brake switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 9.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  9. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  15.

    NG: Replace ASCD brake switch.

  10. CHECK ASCD CLUTCH SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    OK: GO TO  15.

    NG: Replace ASCD clutch switch.

  11. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch (2) harness connector.
      • ASCD brake switch (1)
      • Brake pedal (3)
        Fig 7: Identifying ASCD Brake
        G04925533Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-III or tester.

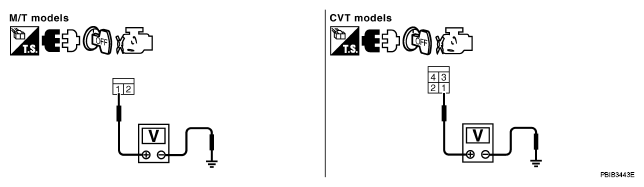

      Fig 8: Checking Voltage Between Stop Lamp Switch Terminal 1 And Ground
      G04925542Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    OK: GO TO  13.

    NG: GO TO 12.

  12. DETECT MALFUNCTIONING PART

    Check the following.

    • 10A fuse
    • Harness for open or short between stop lamp switch and battery

      : Repair open circuit or short to ground or short to power in harness or connectors.

  13. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 106 and stop lamp switch terminal 2.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO 14.

    NG: Repair open circuit or short to ground or short to power in harness or connectors.

  14. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    OK: GO TO 15.

    NG: Replace stop lamp switch.

  15. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    : INSPECTION END
