Mil And Data Link Connector: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

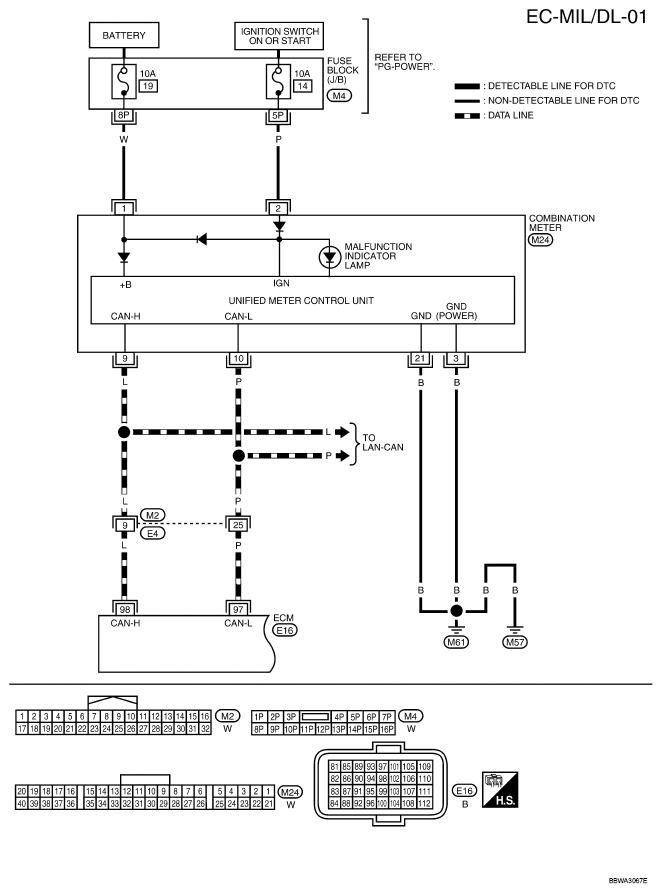

Fig 1: EC-MIL/DL-01 - Wiring Diagram
G04926285Courtesy of NISSAN MOTOR CO., U.S.A.

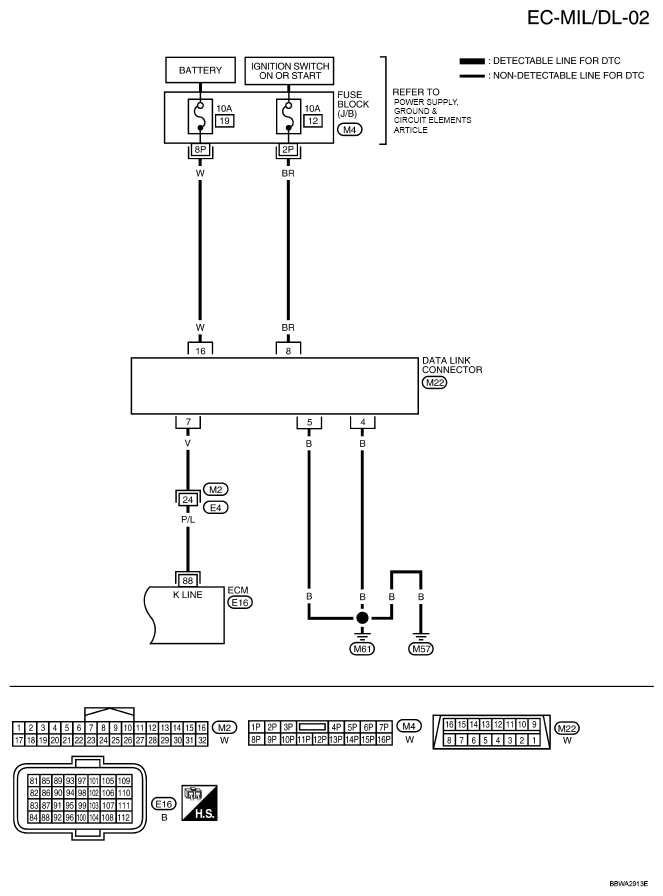

Fig 2: EC-MIL/DL-02 - Wiring Diagram
G04925661Courtesy of NISSAN MOTOR CO., U.S.A.
