Engine Control Component Parts/Control Systems Application

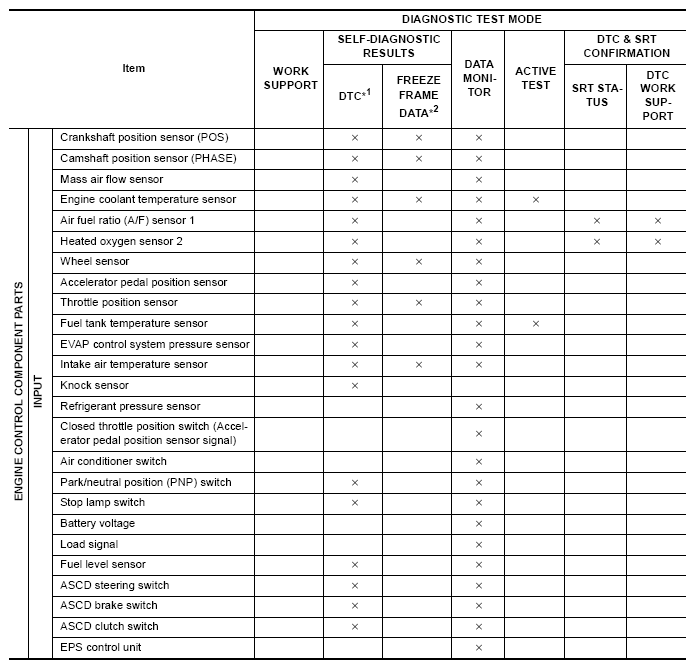

Fig 1: Engine Control Component Control Systems Application Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

For Freeze Frame Data And 1St Trip Freeze Frame Data, go to FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA .

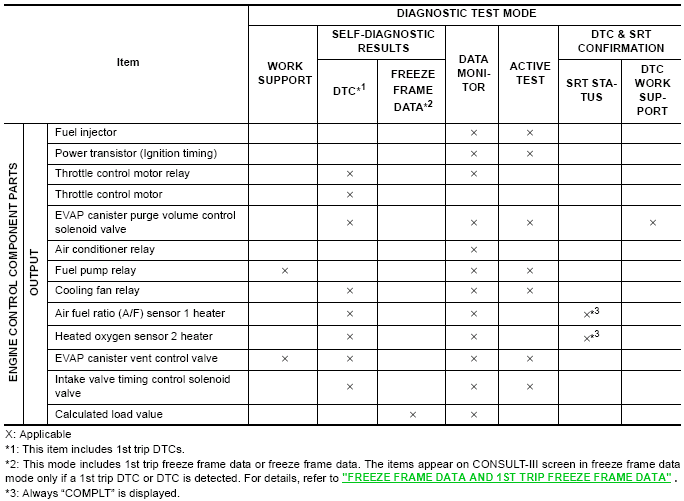

Fig 2: Engine Control Component Control Systems Application Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
