Method B
- Remove No. 1 ignition coil (1).
- <=: Vehicle front

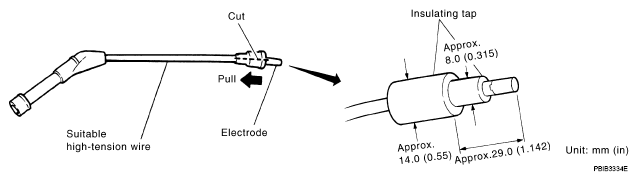

- Connect No. 1 ignition coil (3) and No. 1 spark plug with suitable high-tension wire (1) as shown, and attach timing light (2) clamp to this wire.
- <=: Vehicle front
- Check ignition timing.
- Timing indicator (1)
