Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

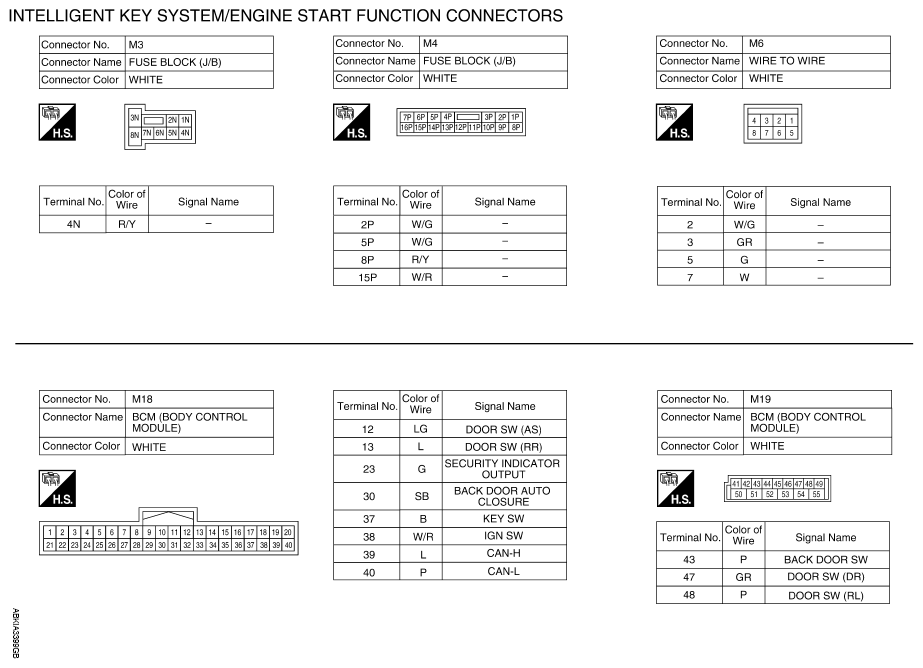

Fig 1: Identifying Intelligent Key System/Engine Start Function Connectors (1 Of 11)
G08168301Courtesy of NISSAN NORTH AMERICA, INC.

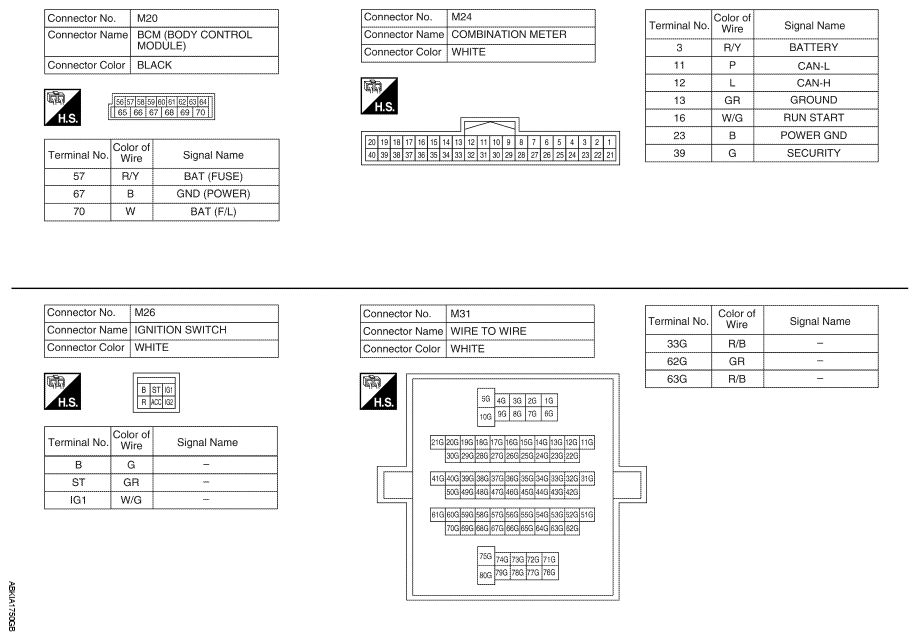

Fig 2: Identifying Intelligent Key System/Engine Start Function Connectors (2 Of 11)
G06606869Courtesy of NISSAN NORTH AMERICA, INC.

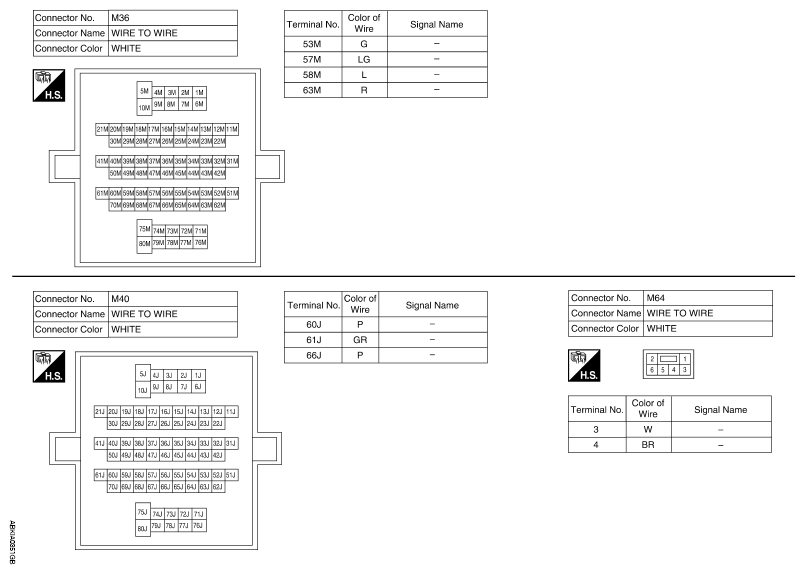

Fig 3: Identifying Intelligent Key System/Engine Start Function Connectors (3 Of 11)
G05941822Courtesy of NISSAN NORTH AMERICA, INC.

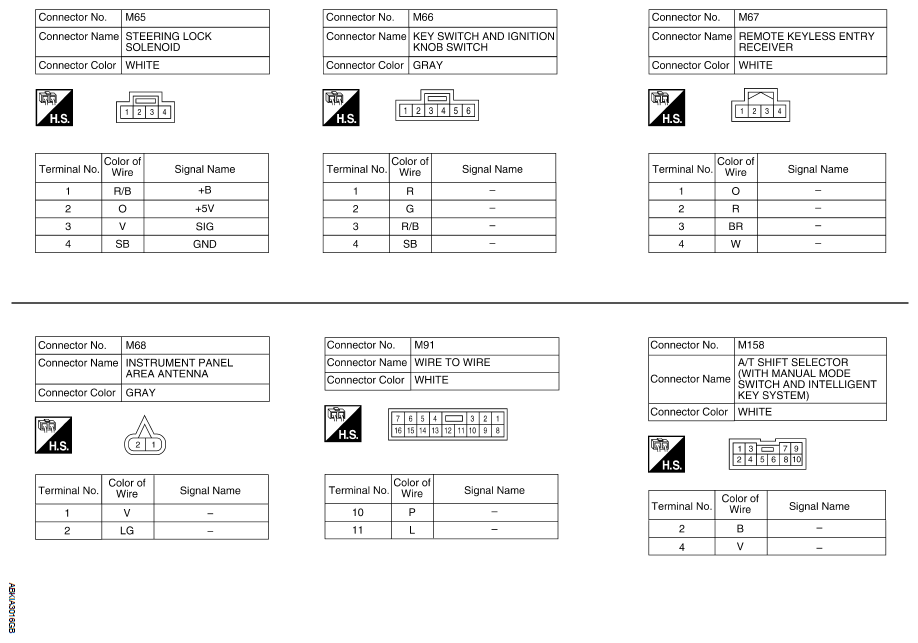

Fig 4: Identifying Intelligent Key System/Engine Start Function Connectors (4 Of 11)
G07149376Courtesy of NISSAN NORTH AMERICA, INC.

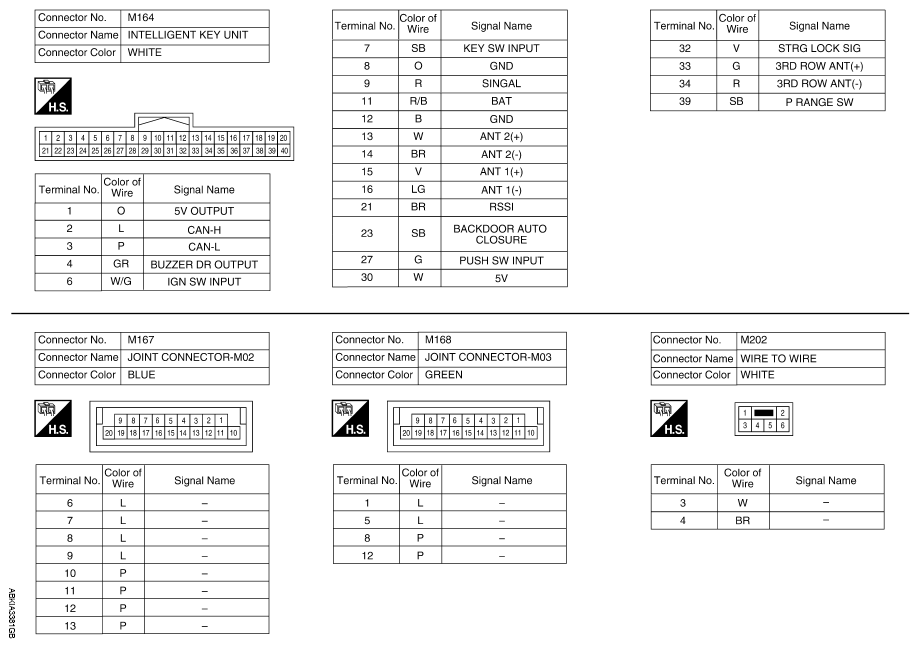

Fig 5: Identifying Intelligent Key System/Engine Start Function Connectors (5 Of 11)
G08168305Courtesy of NISSAN NORTH AMERICA, INC.

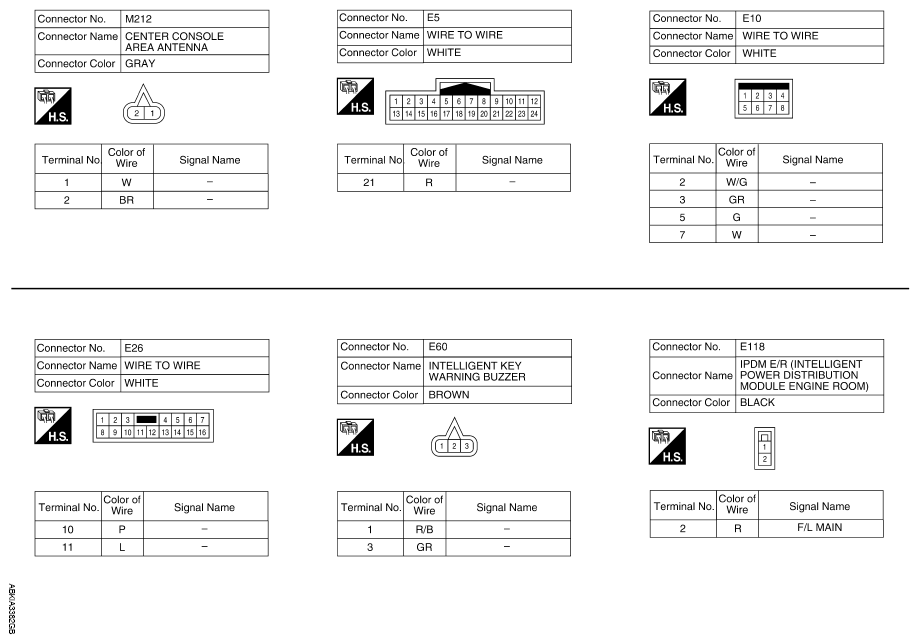

Fig 6: Identifying Intelligent Key System/Engine Start Function Connectors (6 Of 11)
G08168306Courtesy of NISSAN NORTH AMERICA, INC.

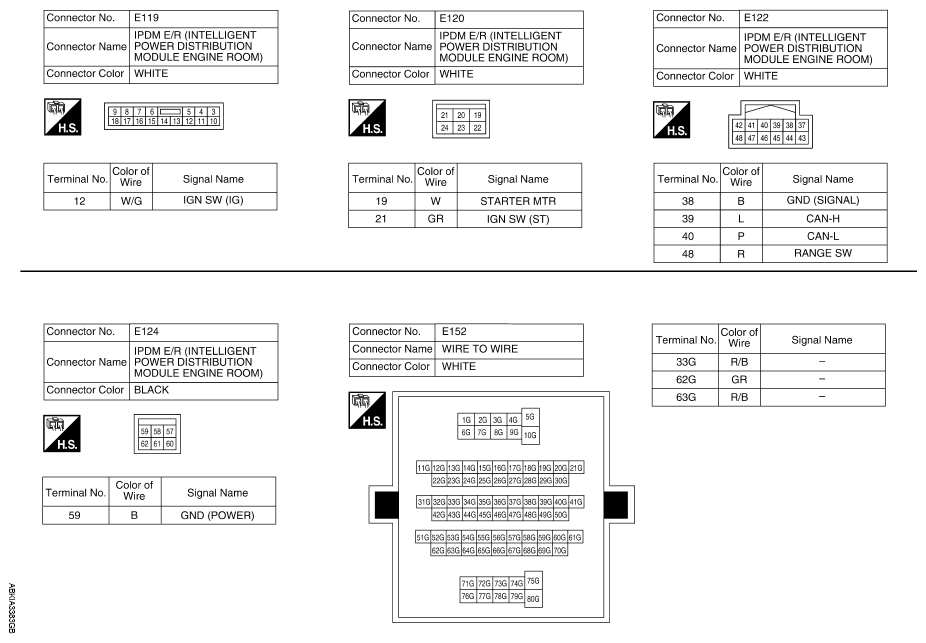

Fig 7: Identifying Intelligent Key System/Engine Start Function Connectors (7 Of 11)
G08168307Courtesy of NISSAN NORTH AMERICA, INC.

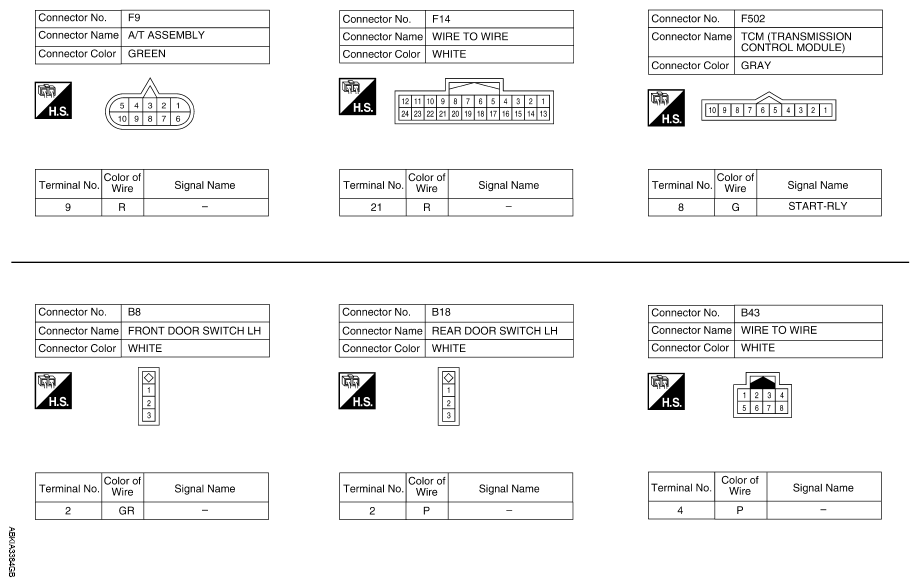

Fig 8: Identifying Intelligent Key System/Engine Start Function Connectors (8 Of 11)
G08168308Courtesy of NISSAN NORTH AMERICA, INC.

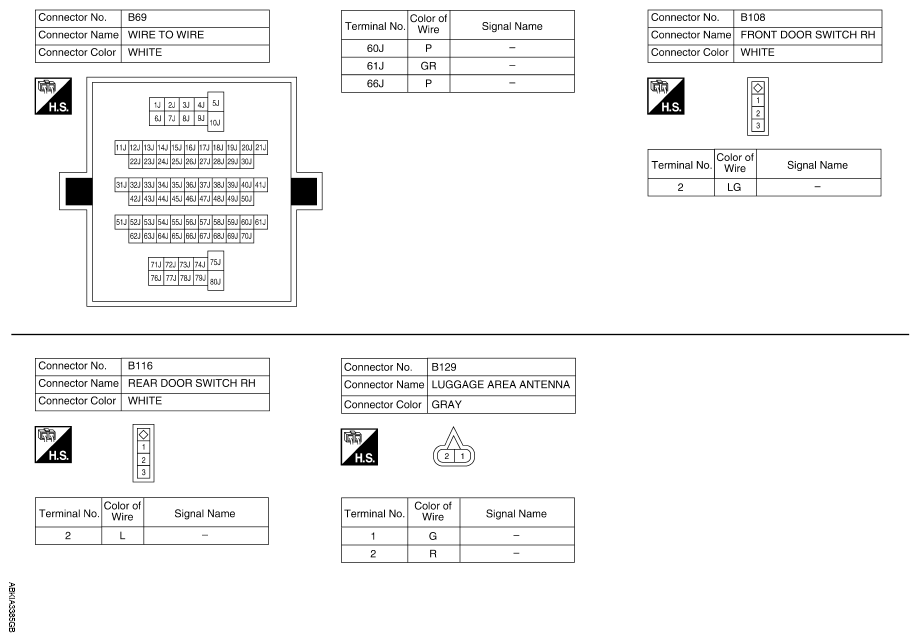

Fig 9: Identifying Intelligent Key System/Engine Start Function Connectors (9 Of 11)
G08168309Courtesy of NISSAN NORTH AMERICA, INC.

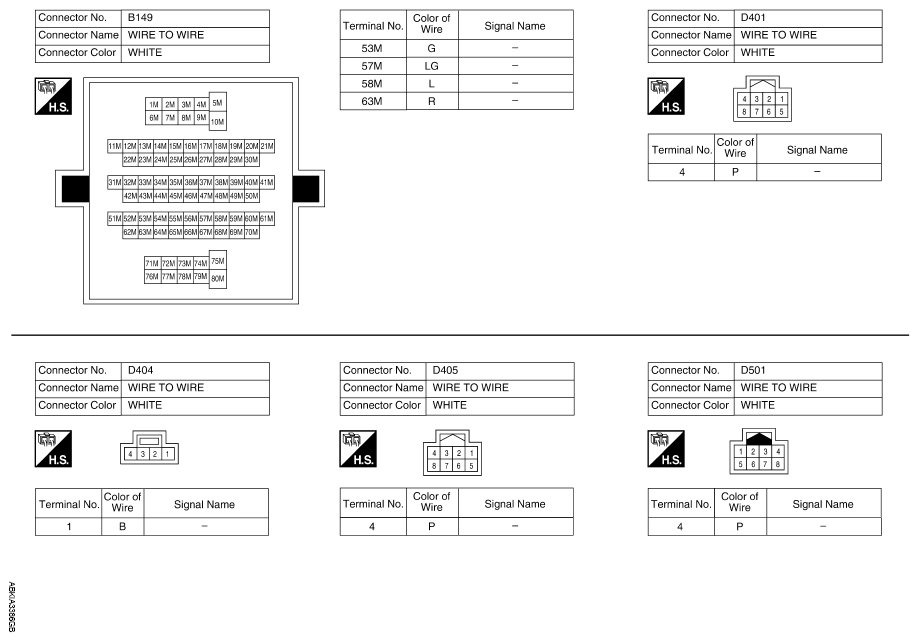

Fig 10: Identifying Intelligent Key System/Engine Start Function Connectors (10 Of 11)
G08168310Courtesy of NISSAN NORTH AMERICA, INC.

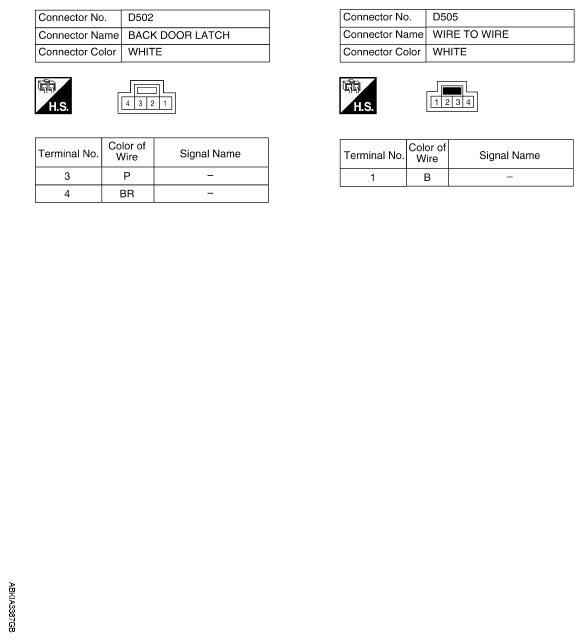

Fig 11: Identifying Intelligent Key System/Engine Start Function Connectors (11 Of 11)
G08168311Courtesy of NISSAN NORTH AMERICA, INC.
