Front Suspension Assembly: Components

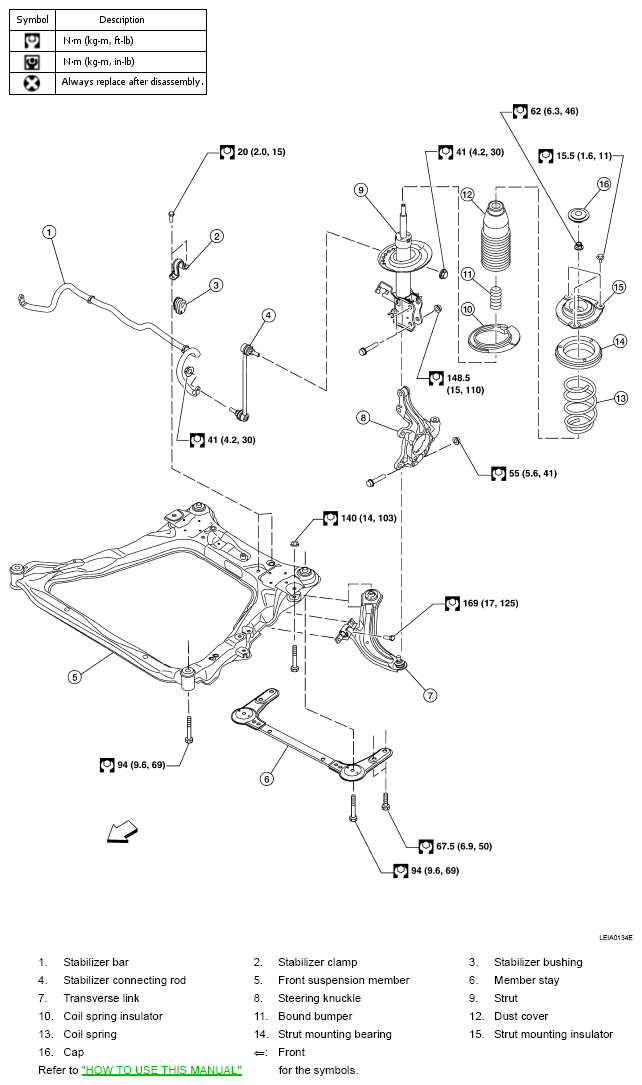

Fig 1: Front Suspension Assembly With Torque Specifications
G04927224Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "HOW TO USE THIS MANUAL " for the symbols.
